BishopSound BWP18/8 8Ω
8 Ω · 35–1000 Hz
No current price
- Fs
- 35Hz
- Xmax
- 12mm
- SPL
- 100dB
- Pe
- 1500W
- BL
- 26.2T·m
- Vd
- 1596cm³
- Qts
- 0.31
- Vas
- 378L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
123 plotted pointsMedium confidence135 selected pixels of 135
BishopSound BWP18/8 is an 18-inch 8 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.31, Vas 378 L, Xmax 12 mm, sensitivity 100 dB, plus 1596 cm³ Vd and 135 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Mms
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
- EBP can be derived from Fs and Qes
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.31
- Qes
- 0.26
- Qms
- 5.2
- Vas
- 378L
- Re
- 5.1Ω
- Le
- 2.10mH
Motor and cone
- BL
- 26.2T·m
- Sd
- 1330cm²
- Xmax
- 12mm
- Vd †
- 1596cm³
- Voice coil
- 125mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 100dB
- Manufacturer sensitivity
- 98dB
- Power
- 1500W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 35–1000Hz
- EBP †
- 135 · Leans vented
Size and mounting
- Diameter
- 460mm
- Bolt circle
- 440mm
- Depth
- 202mm
- Weight
- 19kg
Other published values
- Xmech
- 15.3
- Power Program
- 3000
Sensitivity shows 100.0 dB, calculated from the T/S values. BishopSound publishes 98.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else BishopSound lists
LF · Primary · 18″
- BL
- 26.2T·m
- Fs
- 35Hz
- Le
- 2.10mH
- Re
- 5.1Ω
- Sd
- 1330cm²
- Qes
- 0.26
- Qms
- 5.2
- Qts
- 0.31
- SPL
- 100dB
- Vas
- 378L
- Xmax
- 12mm
- Xmech
- 15.3
- Power
- 1500W
- Impedance
- 8Ω
- Flux density
- 1.20T
- Sensitivity
- 98dB
- Low limit
- 35Hz
- Power Program
- 3000
- Calculated sensitivity †
- 100dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 98dB
- Min. impedance
- 6.5Ω
- Voice coil
- 125mm
- Weight
- 19kg
- Diameter
- 460mm
- Depth
- 202mm
- Bolt circle
- 440mm
02
Compare
Same-size drivers, compared with the BWP18/8. Clear differences are green when better and red when worse.
This driverBWP18/8
Best price
–
Fs
35 Hz
Qts
0.31
Vas
378 L
BL
26.2 T·m
Xmax
12 mm
Sensitivity
100 dB
Power
1500 W
FaitalPRO18FH510
£221.89Fs30 Hz −14%, better
Qts0.29 −6%
Vas411.9 L +9%
BL21 T·m −20%, worse
Xmax9.3 mm −23%, worse
Sensitivity97.7 dB −2.3, worse
RCFLF18G401
£252.42Fs33 Hz −6%
Qts0.29 −6%
Vas268 L −29%, better
BL24.6 T·m −6%
Xmax9 mm −25%, worse
Sensitivity97.1 dB −2.9, worse
FaitalPRO18HP1022
£266.26Fs35 Hz –
Qts0.30 −3%
Vas204.9 L −46%, better
BL28 T·m +7%
Xmax9.5 mm −21%, worse
Sensitivity96.6 dB −3.4, worse
Eighteen Sound18LW2400
£272.63Fs35 Hz –
Qts0.31 –
Vas230 L −39%, better
BL25.6 T·m –
Xmax9.5 mm −21%, worse
Sensitivity96.9 dB −3.1, worse
Beyma18PW1400FE
£273.68Fs32 Hz −9%
Qts0.27 −13%, better
Vas228.9 L −39%, better
BL29 T·m +11%, better
Xmax10 mm −17%, worse
Sensitivity96.3 dB −3.7, worse
Eighteen Sound18LW1400
£274.64Fs31 Hz −11%, better
Qts0.29 −6%
Vas297 L −21%, better
BL24.7 T·m −6%
Xmax9 mm −25%, worse
Sensitivity96.6 dB −3.4, worse
Beyma18LEX1200ND
£279.79Fs36 Hz –
Qts0.33 +6%
Vas219 L −42%, better
BL26.4 T·m –
Xmax11 mm −8%
Sensitivity96.7 dB −3.3, worse

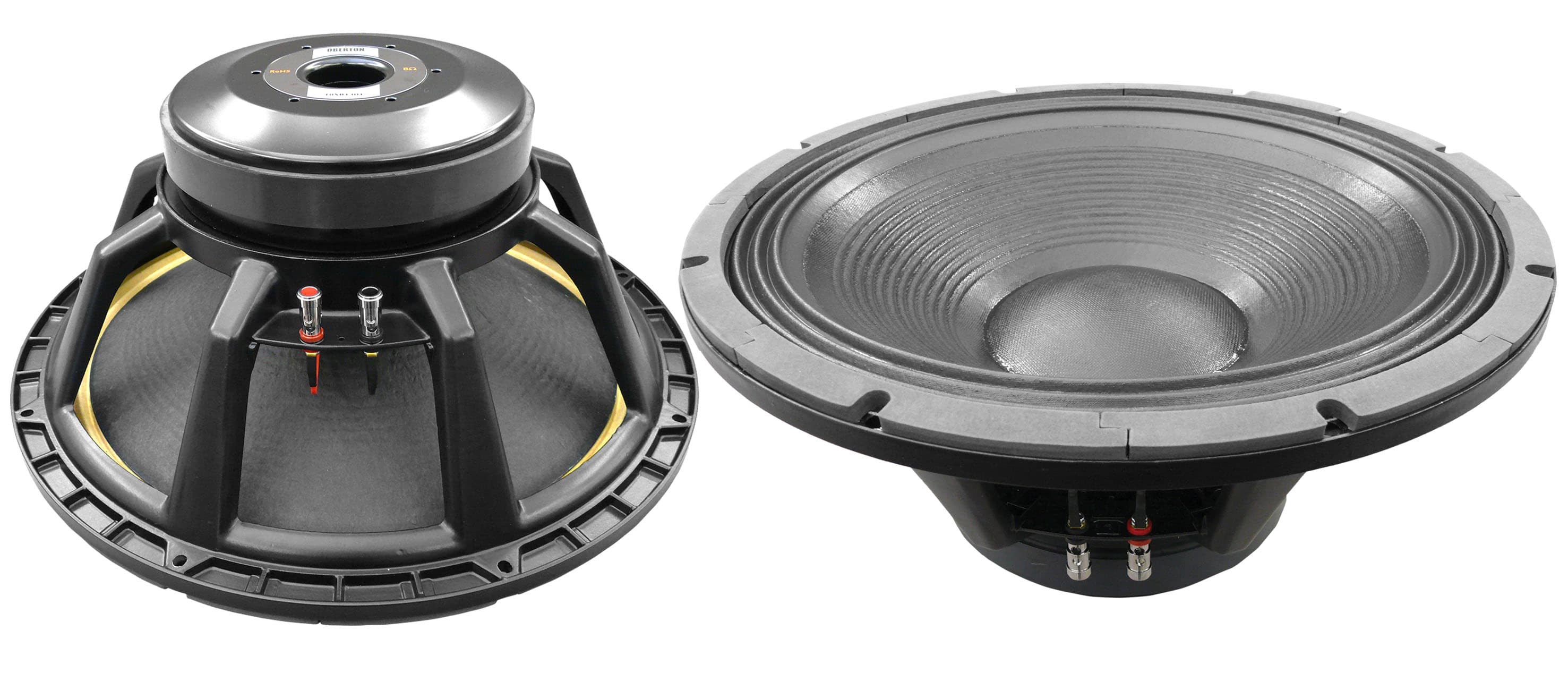

Oberton18XB1301DS
£284.15Fs36 Hz –
Qts0.30 –
Vas172.9 L −54%, better
BL26.9 T·m –
Xmax12 mm –
Sensitivity96 dB −4, worse
RCFLF18X401
£289.00Fs30 Hz −14%, better
Qts0.30 −3%
Vas274 L −28%, better
BL26.5 T·m –
Xmax12 mm –
Sensitivity95.8 dB −4.2, worse
RCFL18P400
£289.00Fs29 Hz −17%, better
Qts0.28 −10%
Vas340 L −10%, better
BL24.6 T·m −6%
Xmax9 mm −25%, worse
Sensitivity96.6 dB −3.4, worse
CIARENDH18-4S
£291.62Fs31 Hz −11%, better
Qts0.32 +3%
Vas239 L −37%, better
BL27.7 T·m +6%
Xmax11.5 mm −4%
Sensitivity95.4 dB −4.6, worse
Eighteen Sound18NLW9400
£305.62Fs33 Hz −6%
Qts0.26 −16%, better
Vas268 L −29%, better
BL26 T·m –
Xmax9.5 mm −21%, worse
Sensitivity97.4 dB −2.6, worse
RCFLF18N405
£325.54Fs30 Hz −14%, better
Qts0.32 +3%
Vas227 L −40%, better
BL26.5 T·m –
Xmax14 mm +17%, better
Sensitivity94.6 dB −5.4, worse
BMS18S450
£345.00Fs29 Hz −17%, better
Qts0.31 –
Vas281 L −26%, better
BL26.5 T·m –
Xmax12 mm –
Sensitivity95.3 dB −4.7, worse
RCFLF18N401
£359.21Fs32 Hz −9%
Qts0.26 −16%, better
Vas257 L −32%, better
BL27.8 T·m +6%
Xmax9 mm −25%, worse
Sensitivity97 dB −3, worse

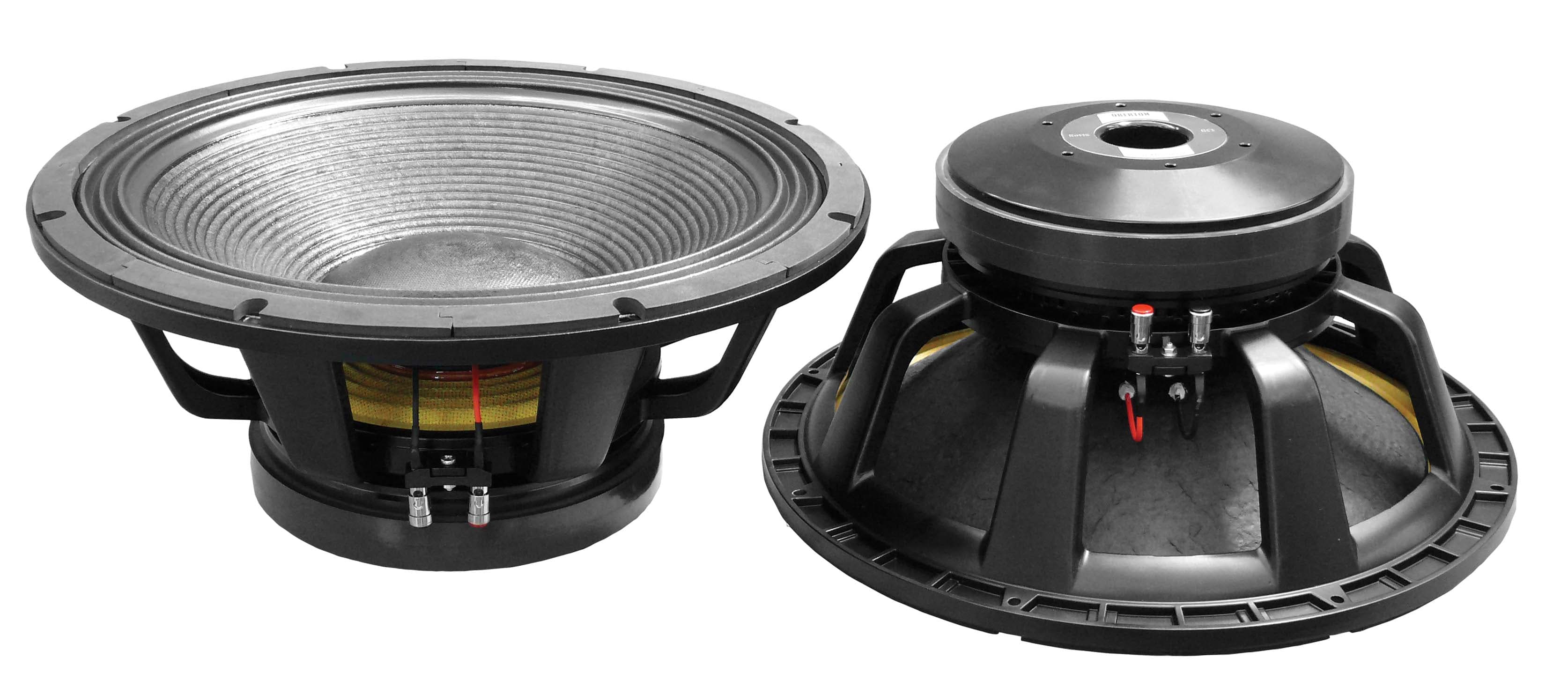

Oberton18XB1600V2
£388.58Fs33 Hz −7%
Qts0.28 −10%, better
Vas267 L −29%, better
BL29.6 T·m +13%, better
Xmax12.5 mm +4%
Sensitivity97.1 dB −2.9, worse
Dayton AudioRSS460HO-4
£442.94Fs19 Hz −46%, better
Qts0.32 +3%
Vas272 L −28%, better
BL23.4 T·m −11%, worse
Xmax12.8 mm +6%
Sensitivity89.2 dB −10.8, worse
BMS18N850V2
£457.13Fs30 Hz −15%, better
Qts0.33 +6%
Vas243 L −36%, better
BL25.4 T·m −3%
Xmax12 mm –
Sensitivity94.7 dB −5.3, worse
Eighteen Sound18NLW9000
£550.00Fs34 Hz –
Qts0.31 –
Vas206 L −46%, better
BL28 T·m +7%
Xmax14 mm +17%, better
Sensitivity96.1 dB −3.9, worse
B&C18HTX100
£809.86Fs44 Hz +26%, worse
Qts0.32 +3%
Vas173 L −54%, better
BL26.3 T·m –
Xmax13 mm +8%
Sensitivity98.4 dB −1.6
No photo
RCFLF18Y402
No current priceFs30 Hz −14%, better
Qts0.30 −3%
Vas274 L −28%, better
BL26.5 T·m –
Xmax12 mm –
Sensitivity95.8 dB −4.2, worse
No photo
FaneIMPERIUM 18NDXL
No current priceFs33 Hz −6%
Qts0.29 −5%
Vas203 L −46%, better
BL29.4 T·m +12%, better
Xmax12 mm –
Sensitivity95.9 dB −4.1, worse

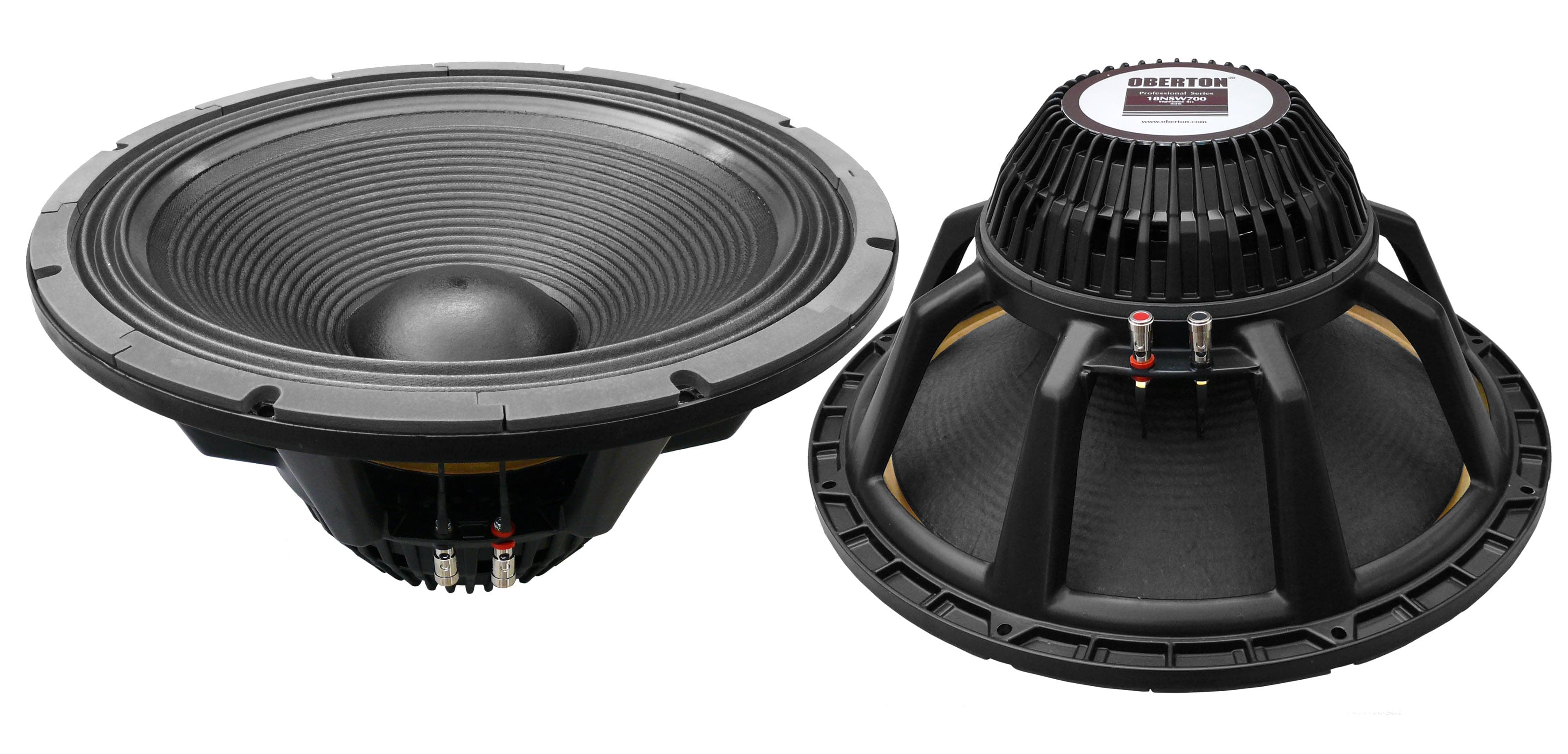

Oberton18NSW700
No current priceFs30 Hz −13%, better
Qts0.24 −22%, better
Vas309.0 L −18%, better
BL26.6 T·m –
Xmax14 mm +17%, better
Sensitivity97.5 dB −2.5, worse
Oberton18NXB1200
No current priceFs36 Hz –
Qts0.28 −9%
Vas159.6 L −58%, better
BL29.4 T·m +12%, better
Xmax11.5 mm −4%
Sensitivity96 dB −4, worse
RCFLF18G908
No current priceFs33 Hz −6%
Qts0.29 −6%
Vas268 L −29%, better
BL24.6 T·m −6%
Xmax9 mm −25%, worse
Sensitivity97.1 dB −2.9, worse
Oberton18XB1201
No current priceFs38 Hz +9%
Qts0.32 –
Vas159.4 L −58%, better
BL26.7 T·m –
Xmax10.5 mm −13%, worse
Sensitivity96.3 dB −3.7, worse
Precision DevicesPD.185NR1
No current priceFs34 Hz –
Qts0.27 −13%, better
Vas102 L −73%, better
BL29.5 T·m +13%, better
Xmax11.8 mm –
Sensitivity93.4 dB −6.6, worse
Oberton18XB700
No current priceFs36 Hz +3%
Qts0.30 –
Vas183.2 L −52%, better
BL26.1 T·m –
Xmax9 mm −25%, worse
Sensitivity96.4 dB −3.6, worse
Oberton18NXB1601
No current priceFs35 Hz –
Qts0.29 −8%
Vas146.2 L −61%, better
BL30.5 T·m +16%, better
Xmax12.5 mm +4%
Sensitivity95.1 dB −4.9, worse
