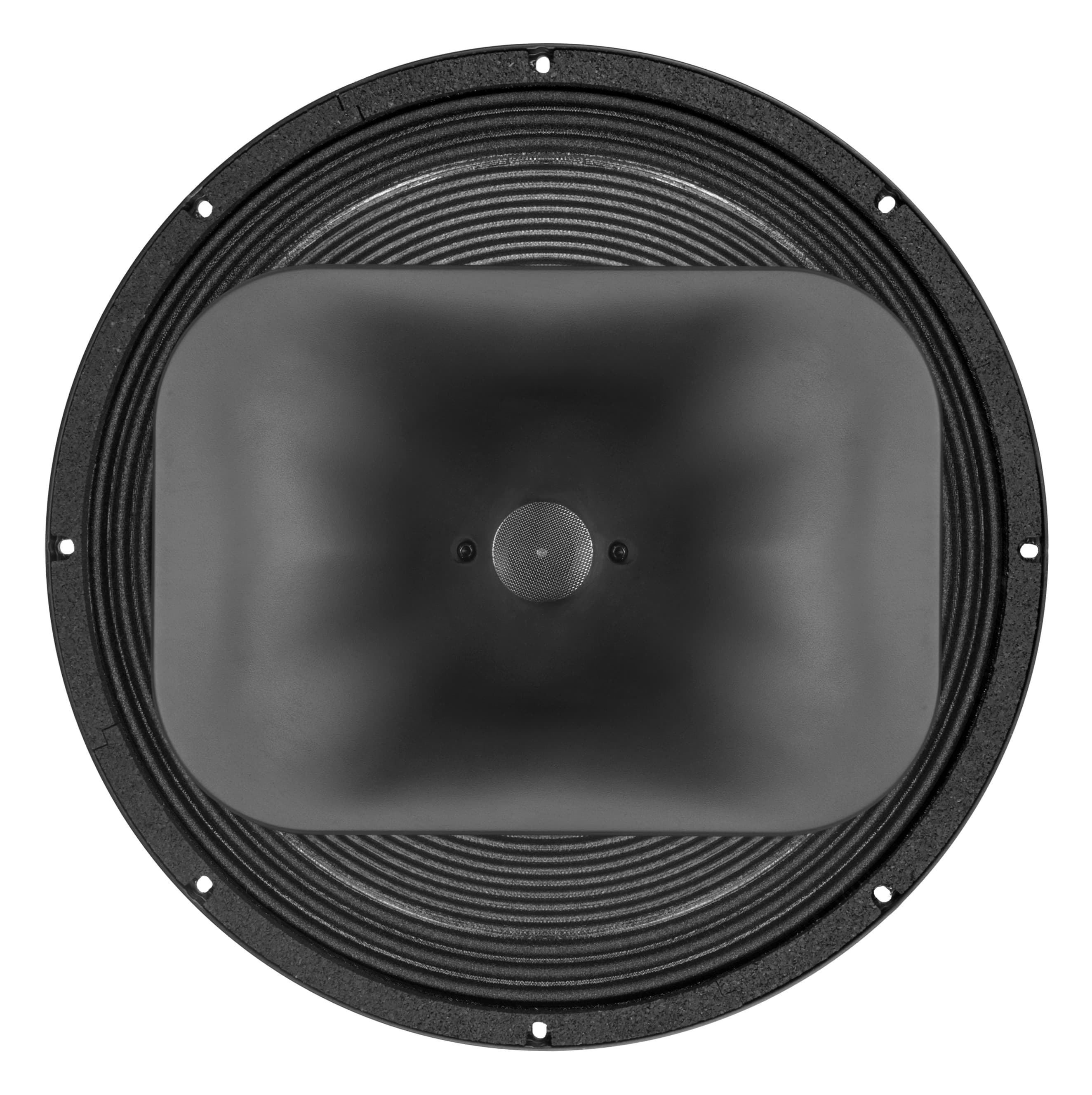

B&C design
TX-18
Three way - biamped Triaxial point source
- Drivers
- 1 × 18HTX100, 8 Ω
18-inch LF driver · 18HTX series · 100 mm voice coil · 800 W
B&C 18HTX100 8Ω
8 Ω · 44–18000 Hz
£809.86
SteadyJP Leisure · In stock · All 3 offers
- Fs
- 44Hz
- Xmax
- 13mm
- SPL
- 98dB
- Pe
- 800W
- BL
- 26.3T·m
- Vd
- 1573cm³
- Qts
- 0.32
- Vas
- 173L

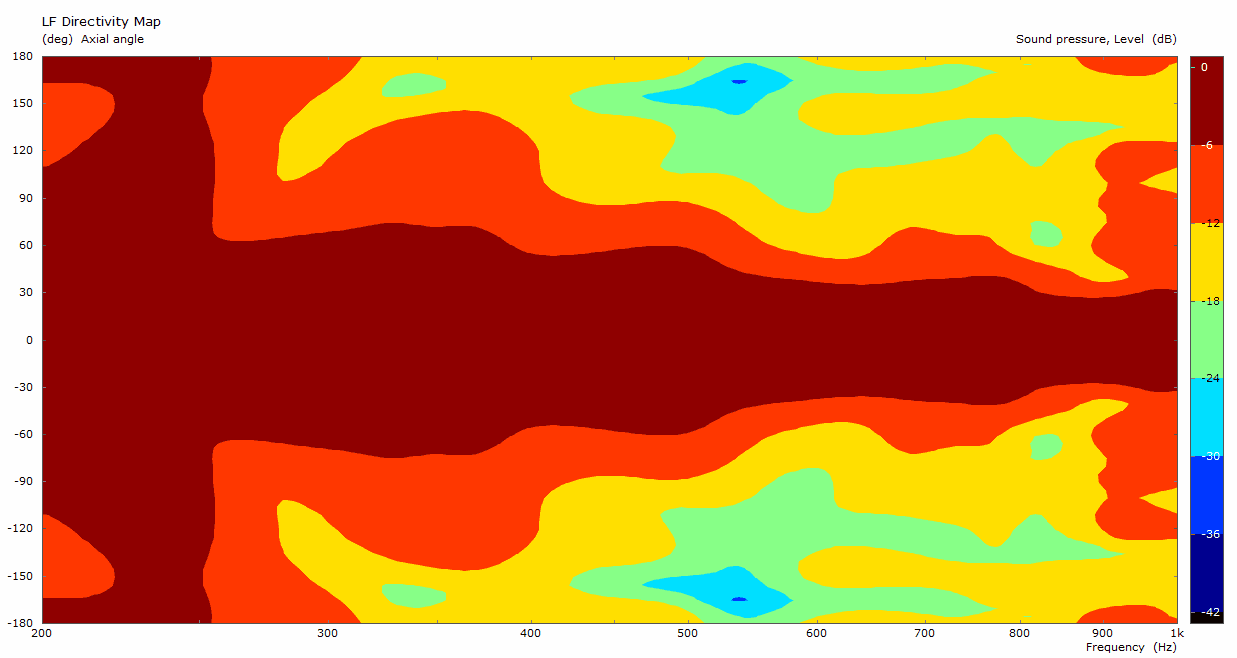

Published graphs
B&C 18HTX100 is an 18-inch 8 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.32, Vas 173 L, Xmax 13 mm, sensitivity 98.4 dB, plus 1573 cm³ Vd and 129 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £809.86.
The published T/S values agree with each other
Thiele/Small
- Fs
- 44Hz
- Qts
- 0.32
- Qes
- 0.34
- Qms
- 6.3
- Vas
- 173L
- Re
- 5.4Ω
- Le
- 1.16mH
Motor and cone
- BL
- 26.3T·m
- Sd
- 1210cm²
- Mms
- 159g
- Xmax
- 13mm
- Vd †
- 1573cm³
- Voice coil
- 100mm
- Flux density
- 1.50T
Power and response
- Sensitivity †
- 98.4dB
- Manufacturer sensitivity
- 100dB
- Power
- 800W
- Nominal power
- 800W
- Impedance
- 8Ω
- Min. impedance
- 6.6Ω
- Range
- 44–18000Hz
- EBP †
- 129 · Leans vented
Other published values
- High limit
- 800Hz
Sensitivity shows 98.4 dB, calculated from the T/S values. B&C publishes 100.0 dB, 1.6 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 26.3T·m
- Fs
- 44Hz
- Le
- 1.16mH
- Re
- 5.4Ω
- Sd
- 1210cm²
- Mms
- 159g
- Qes
- 0.34
- Qms
- 6.3
- Qts
- 0.32
- SPL
- 98.4dB
- Vas
- 173L
- Xmax
- 13mm
- Power
- 800W
- Impedance
- 8Ω
- Flux density
- 1.50T
- Sensitivity
- 100dB
- Low limit
- 44Hz
- Nominal power
- 800W
- Calculated sensitivity †
- 98.4dB
- High limit
- 800Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.6Ω
- Voice coil
- 100mm
- Bl
- 26.3 Tm
- Fs
- 44 Hz
- Le
- 1.16 mH
- Re
- 5.4 Ω
- Sd
- 1210 cm² (187.55 in²)
- Ebp
- 129 Hz
- Mms
- 158.5 g
- Qes
- 0.34
- Qms
- 6.3
- Qts
- 0.32
- Vas
- 173 dm³ (6.11 ft³)
- Η0
- 4.3 %
- Xvar
- 13 mm
- Sensitivity
- 100 dB
- Flux density
- 1.5 T
- Winding depth
- 25.1 mm (1 in)
- Former material
- Glass Fibre
- Frequency range
- 44 Hz - 800 Hz
- Winding material
- Aluminium
- Minimum impedance
- 6.6 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 10.2 mm (0.4 in)
- Voice coil diameter
- 100 mm (4 in)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Nominal power handling
- 800 W
- Continuous power handling
- 1600 W
MF · Specifications MF unit
- Le
- 0.21mH
- SPL
- 110dB
- Power
- 110W
- Impedance
- 8Ω
- Flux density
- 1.90T
- Sensitivity
- 110dB
- Low limit
- 500Hz
- Nominal power
- 110W
- High limit
- 5500Hz
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 6Ω
- Voice coil
- 100mm
- Crossover
- 600Hz
- Inductance
- 0.21 mH
- Sensitivity
- 110 dB
- Flux density
- 1.9 T
- Frequency range
- 0.5 kHz - 5.5 kHz
- Winding material
- Aluminium
- Minimum impedance
- 6 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- HT Polymer Ring
- Voice coil diameter
- 100 mm (4 in)
- Recommended crossover
- 0.6 kHz
- Nominal power handling
- 110 W
- Continuous power handling
- 220 W
HF · Specifications HF unit
- Le
- 0.10mH
- SPL
- 110dB
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 2.14T
- Sensitivity
- 110dB
- Low limit
- 3500Hz
- Nominal power
- 80W
- High limit
- 18000Hz
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 9Ω
- Voice coil
- 65mm
- Crossover
- 4000Hz
- Inductance
- 0.1 mH
- Sensitivity
- 110 dB
- Flux density
- 2.14 T
- Frequency range
- 3.5 kHz - 18 kHz
- Winding material
- Aluminium
- Minimum impedance
- 9 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- HT Polymer Ring
- Voice coil diameter
- 65 mm (2.5 in)
- Recommended crossover
- 4 kHz
- Nominal power handling
- 80 W
- Continuous power handling
- 160 W
