LF DriverPD series
Precision Devices

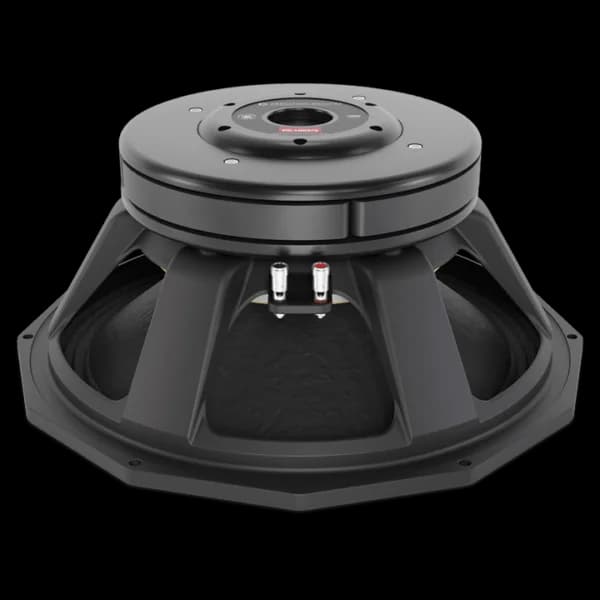

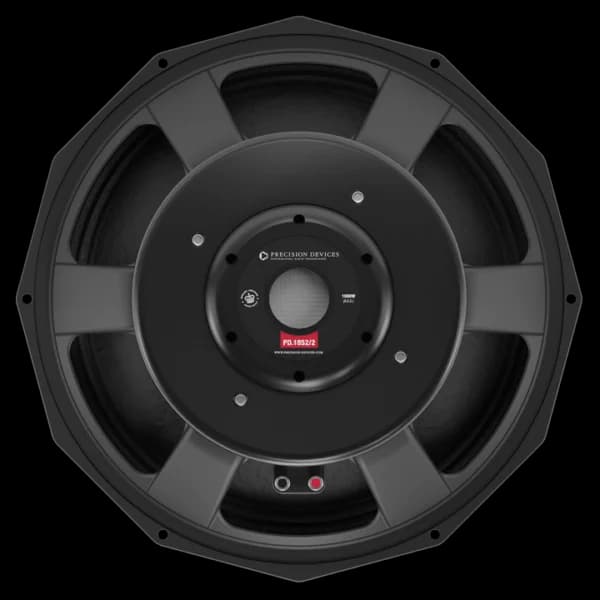

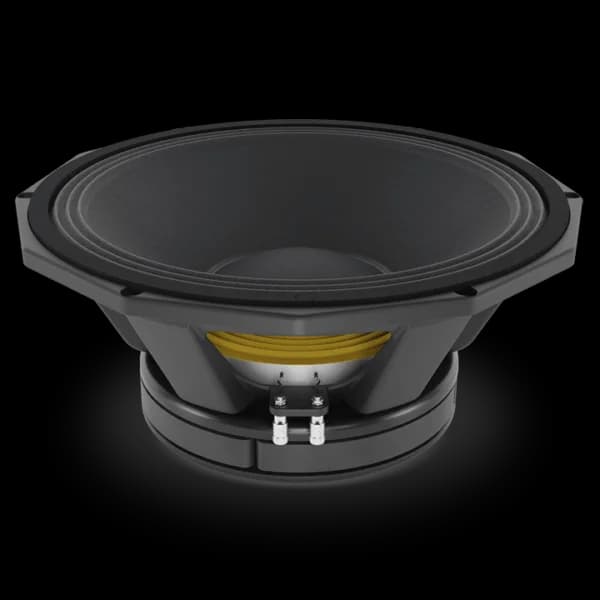

Precision Devices PD.1852/2
Precision Devices PD.1852/2 is a 18" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 42Hz, Qts 0.33, Vas 120.4L, Xmax 12mm, sensitivity 96.2dB, plus 1397cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1000W
Sensitivity
96.2dB
98.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
123
Vented alignment
Vd
1397cm³
T/S Parameters
Valid
Fs42Hz
Qts0.33
Qes0.34
Qms11.1
Vas120.4L
Re5.2Ω
Le0.90mH
BL30.5Tm
Sd1164cm²
Mms231g
Xmax12.0mm
SPL96dB
Power1000W
Impedance8Ω
F Low35Hz
F High2000Hz
Voice Coil127mm
Flux Density1.18T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight25.0kg
Diameter474.0mm
Overall Depth190.0mm
Cutout Diameter414.5mm
Bolt Circle Diameter455.0mm
