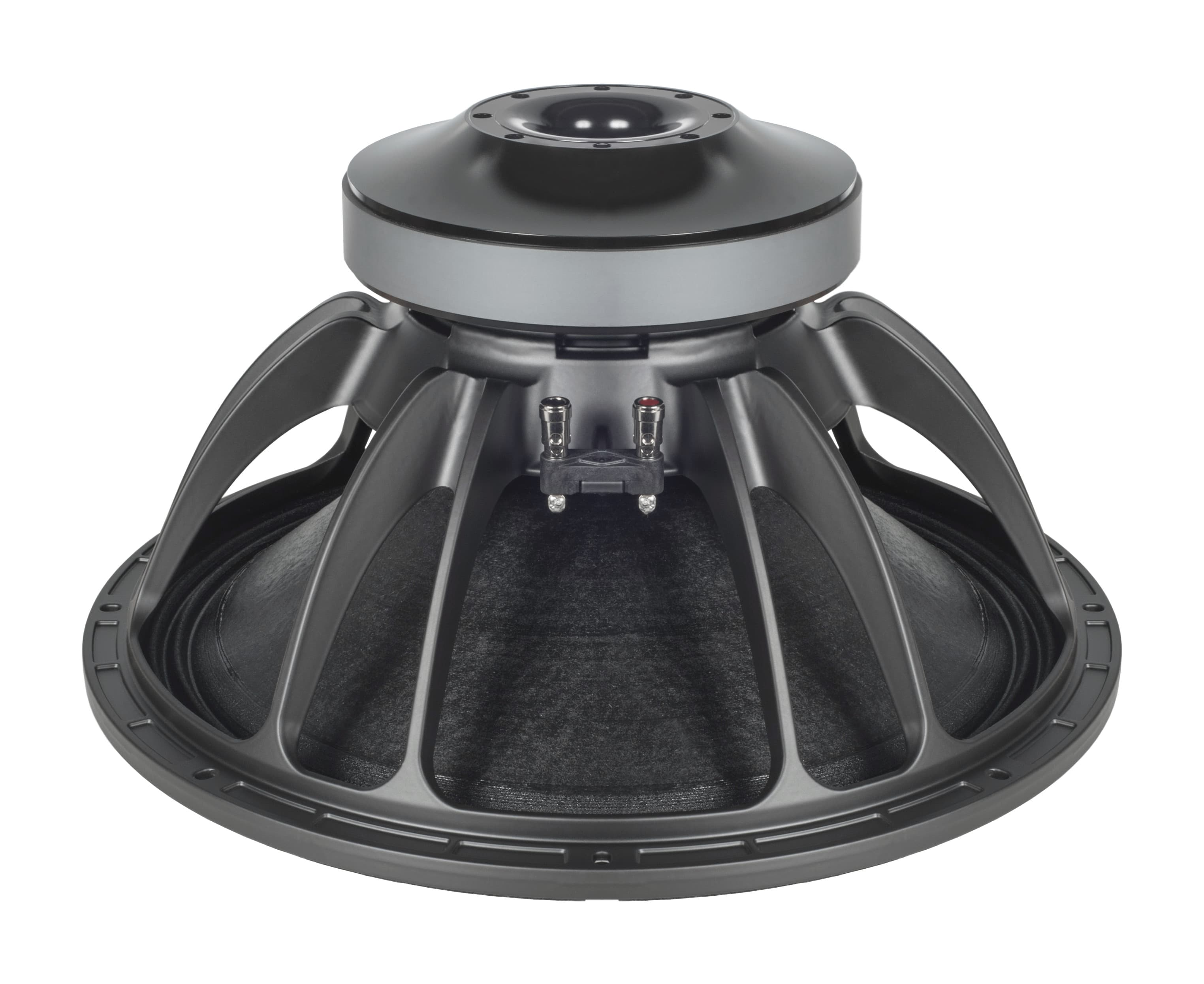

B&C18TBW100
£227.94 · 43% less, betterFs33 Hz −4%
Qts0.32 +4%
Vas181.5 L +24%, worse
BL22.8 T·m −30%, worse
Xmax12 mm –
Sensitivity94.9 dB –
18-inch LF driver · CF18 series · 125 mm voice coil · 1,600 W

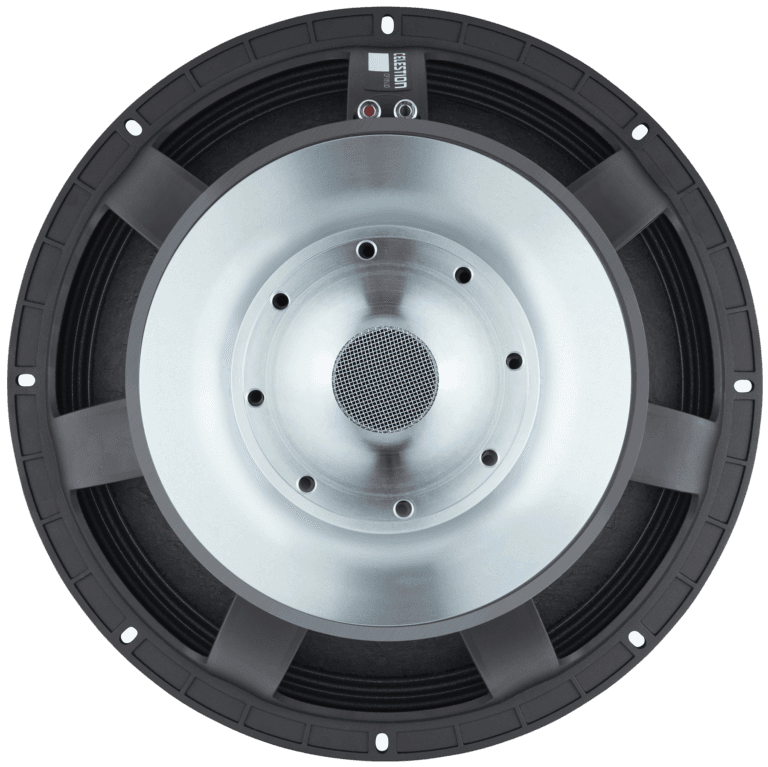

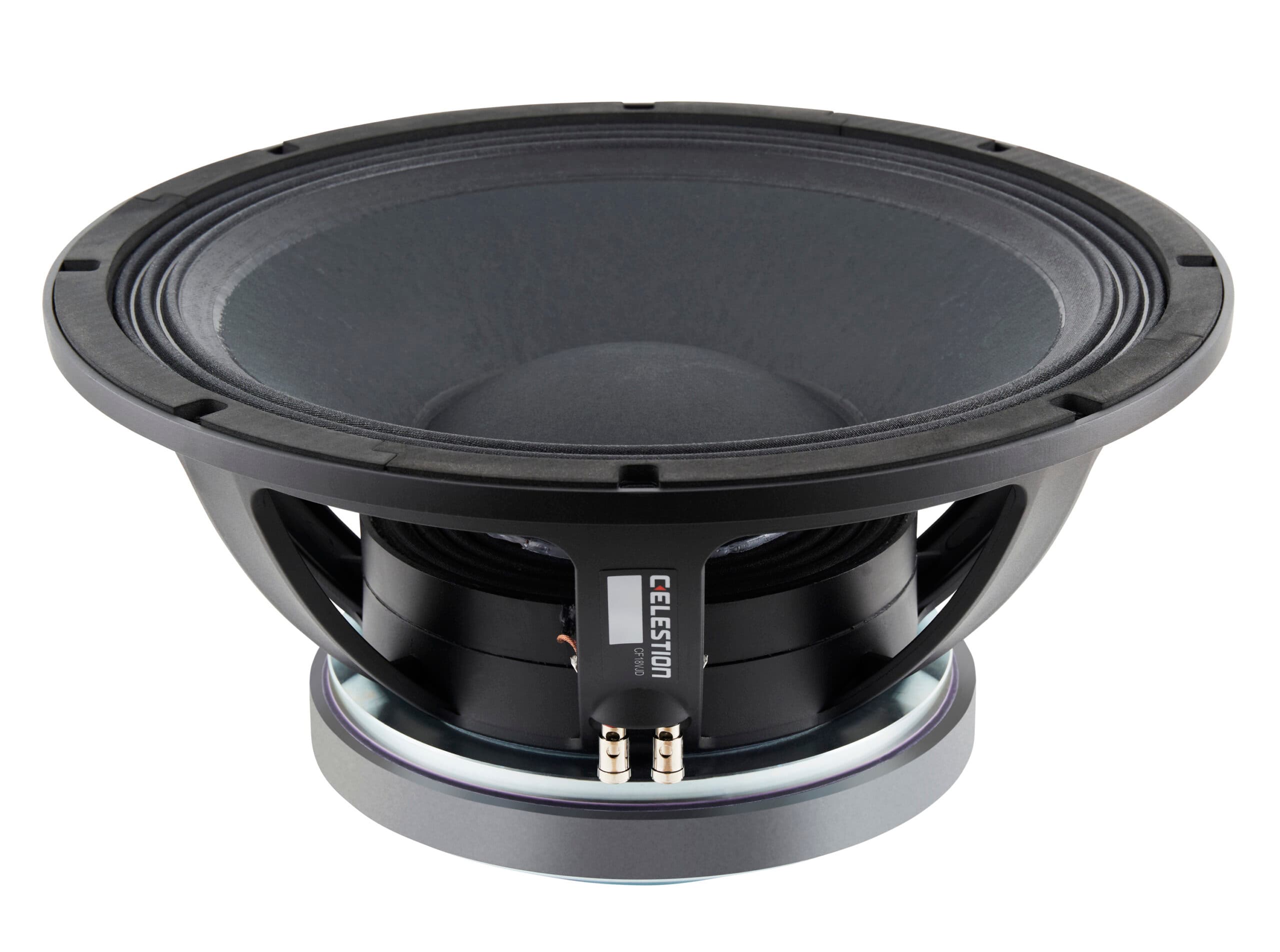

Celestion CF18VJD 8Ω
8 Ω · 25–1500 Hz
£399.00
SteadyLean Business · All 2 offers
- Fs
- 35Hz
- Xmax
- 12mm
- SPL
- 95dB
- Pe
- 1600W
- BL
- 32.6T·m
- Vd
- 1361cm³
- Qts
- 0.31
- Vas
- 146L

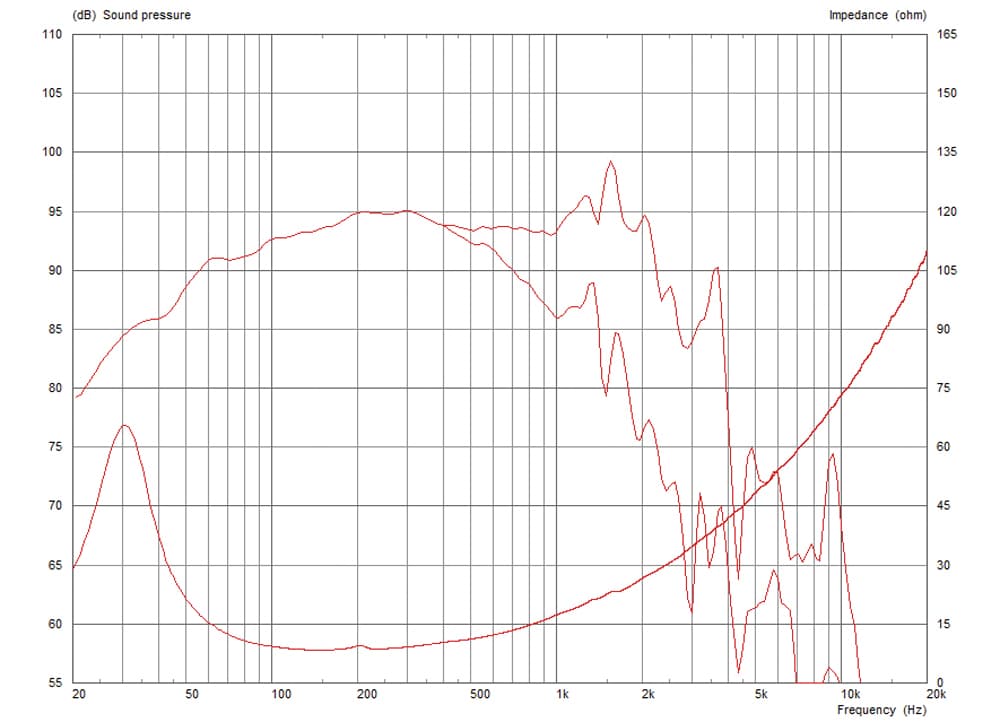

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence201 selected pixels of 381
Published graphs
Celestion CF18VJD is an 18-inch 8 ohm LF driver rated at 1600 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.31, Vas 145.8 L, Xmax 12 mm, sensitivity 94.6 dB, plus 1361 cm³ Vd and 104 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £399.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 4.6
- Vas
- 145.8L
- Re
- 6.1Ω
- Le
- 1.87mH
Motor and cone
- BL
- 32.6T·m
- Sd
- 1134cm²
- Mms
- 265g
- Xmax
- 12mm
- Vd †
- 1361cm³
- Voice coil
- 125mm
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 97dB
- Power
- 1600W
- Impedance
- 8Ω
- Range
- 25–1500Hz
- EBP †
- 104 · Leans vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 441mm
- Depth
- 233mm
- Weight
- 23kg
Other published values
- Cms
- 0.08mm/N
- Rms
- 12.59kg/s
- Power Program
- 3200
Sensitivity shows 94.6 dB, calculated from the T/S values. Celestion publishes 97.0 dB, 2.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 18″
- BL
- 32.6T·m
- Fs
- 35Hz
- Le
- 1.87mH
- Re
- 6.1Ω
- Sd
- 1134cm²
- Cms
- 0.08mm/N
- Mms
- 265g
- Qes
- 0.33
- Qms
- 4.6
- Qts
- 0.31
- Rms
- 12.59kg/s
- SPL
- 94.6dB
- Vas
- 145.8L
- Xmax
- 12mm
- Power
- 1600W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 25Hz
- Power Program
- 3200
- Calculated sensitivity †
- 94.6dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 125mm
- Weight
- 23kg
- Diameter
- 462mm
- Depth
- 233mm
- Cutout
- 416mm
- Bolt circle
- 441mm
