Eighteen Sound design
Single 18” subwoofer
- Drivers
- 18TLW3000or 18LW2500or 18NLW4000or 18LW2400or 18LW1400
18-inch LF driver · 1,500 W
Eighteen Sound 18NLW4000 8Ω
8 Ω · 30–1800 Hz
No price for delivery to the UK
- Fs
- 34Hz
- Xmax
- 15mm
- SPL
- 94dB
- Pe
- 1500W
- BL
- 30T·m
- Vd
- 1695cm³
- Qts
- 0.33
- Vas
- 135L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

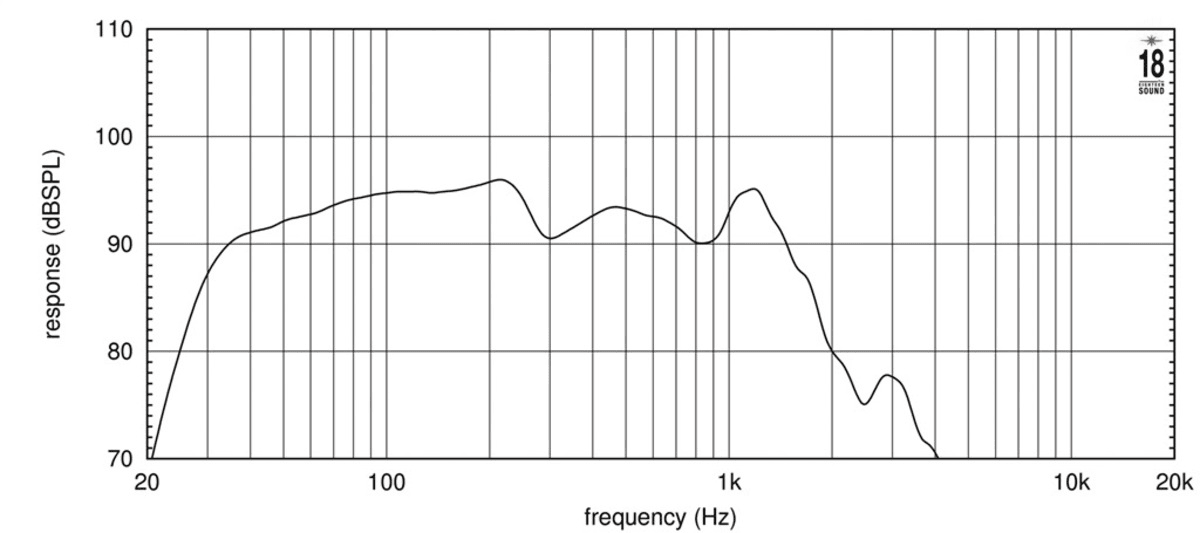

frequency response
Frequency response
151 plotted pointsSource file SHA-256 40f6fde9aa17…Medium confidence682 selected pixels of 1,489 - Trace datasheet-response-trace-poc/v2

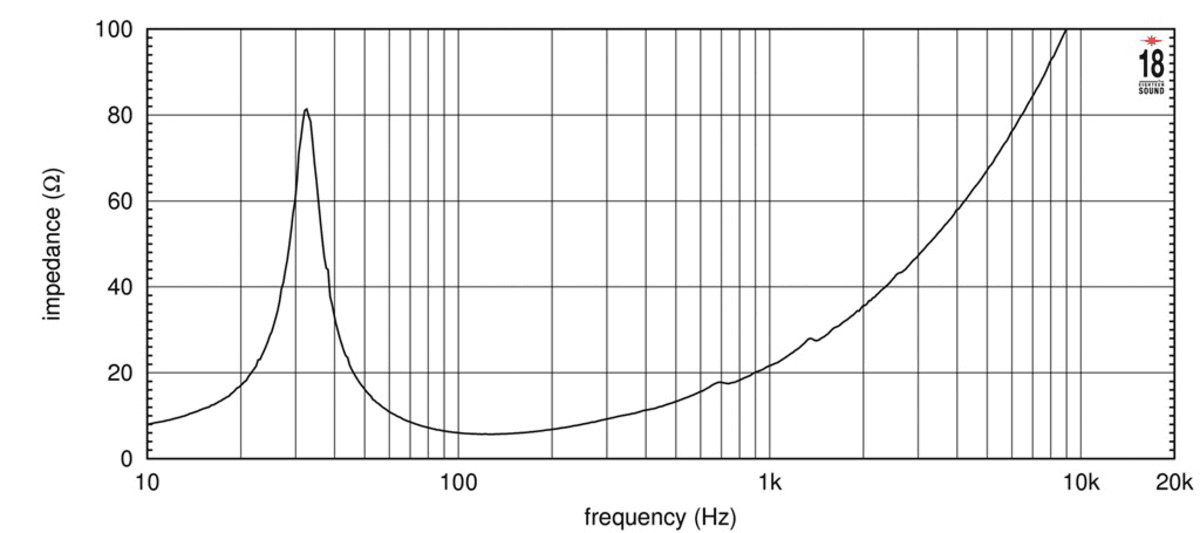

impedance
Impedance response
240 plotted pointsSource file SHA-256 40f6fde9aa17…Medium confidence977 selected pixels of 1,355
Published graphs
Eighteen Sound 18NLW4000 is an 18-inch 8 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.33, Vas 135 L, Xmax 15 mm, sensitivity 94 dB, plus 1695 cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.33
- Qes
- 0.34
- Qms
- 22
- Vas
- 135L
- Re
- 4.9Ω
- Le
- 2.80mH
Motor and cone
- BL
- 30T·m
- Sd
- 1130cm²
- Mms
- 290g
- Xmax
- 15mm
- Vd †
- 1695cm³
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 96dB
- Power
- 1500W
- Nominal power
- 1500W
- Impedance
- 8Ω
- Range
- 30–1800Hz
- EBP †
- 100 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 440mm
- Depth
- 227mm
- Weight
- 9.8kg
Other published values
- Power Program
- 3200
Sensitivity shows 94.0 dB, calculated from the T/S values. Eighteen Sound publishes 96.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 30T·m
- Fs
- 34Hz
- Le
- 2.80mH
- Re
- 4.9Ω
- Sd
- 1130cm²
- Mms
- 290g
- Qes
- 0.34
- Qms
- 22
- Qts
- 0.33
- SPL
- 94dB
- Vas
- 135L
- Xmax
- 15mm
- Power
- 1500W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 30Hz
- Nominal power
- 1500W
- Power Program
- 3200
- Calculated sensitivity †
- 94dB
- High limit
- 1800Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 9.8kg
- Diameter
- 462mm
- Depth
- 227mm
- Cutout
- 416mm
- Bolt circle
- 440mm
02
Designs
Cabinets for the 18NLW4000: a design and a suggested box from Eighteen Sound.
All 18NLW4000 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 18NLW4000 page
- Net volume
- 160L
- Tuning
- 35Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
