Overview
LF DriverCF series
Monacor
Monacor CF18VJD/8
Monacor CF18VJD/8 is a 18" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 35Hz, Qts 0.31, Vas 145.8L, Xmax 12mm, sensitivity 94.6dB, plus 1361cm³ Vd and 104 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
94.6dB
97.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
104
Vented alignment
Vd
1361cm³
T/S Parameters
Valid
Fs35Hz
Qts0.31
Qes0.33
Qms4.6
Vas145.8L
Re6.1Ω
Le1.87mH
BL32.6Tm
Sd1134cm²
Mms265g
Xmax12.0mm
SPL95dB
Power1600W
Impedance8Ω
F Low25Hz
F High1500Hz
Voice Coil125mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight21.0kg
Diameter462.0mm
Overall Depth233.0mm
Cutout Diameter416.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
CF18VJD/8
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£399.00
Celestion
CF18VJD
18"
Xmax12mm0%
Qts0.310%
BL32.6Tm0%
Vas145.8L0%
Qes0.330%
90%
Similarity

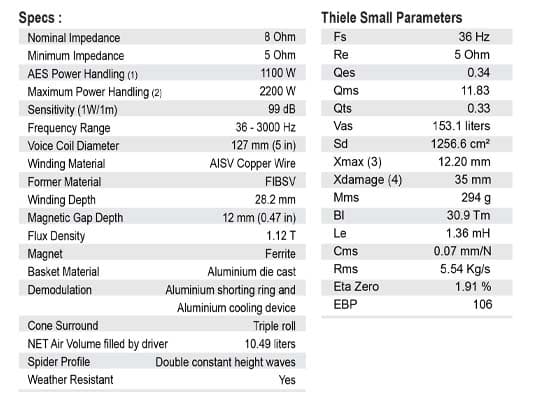

SB Audience
NERO-18SW1100D
18"
Xmax12.2mm+2%
Qts0.33+7%
BL30.9Tm-5%
Vas153.1L+5%
Qes0.34+2%
87%
Similarity
£406.00

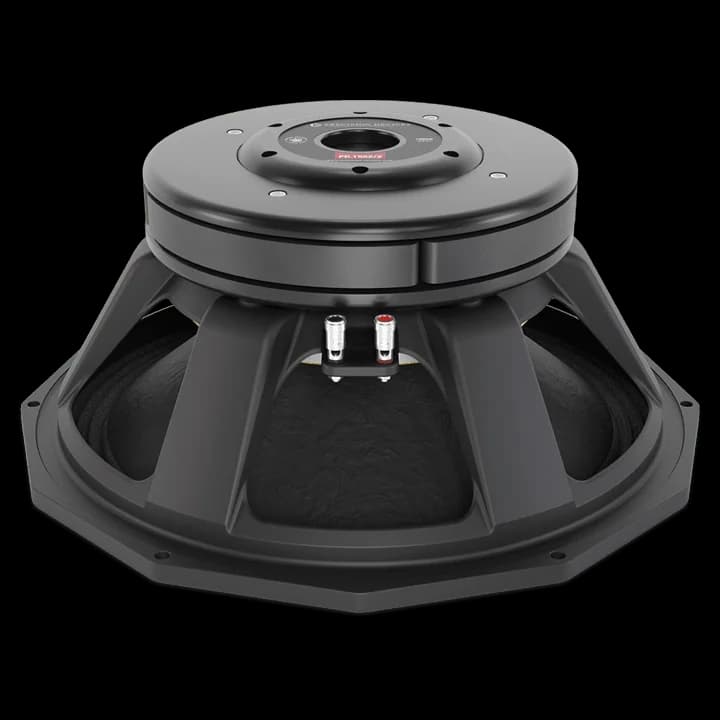

Precision Devices
PD.1852/2
18"
Xmax12mm0%
Qts0.33+7%
BL30.5Tm-7%
Vas120.4L-17%
Qes0.34+2%
86%
Similarity
Oberton
18NXB1601
18"
Xmax12.5mm+4%
Qts0.29-7%
BL30.5Tm-6%
Vas146.2L0%
Qes0.3-9%
83%
Similarity
£284.15
Oberton
18XB1301DS
18"
Xmax12mm0%
Qts0.3-2%
BL26.9Tm-18%
Vas172.9L+19%
Qes0.32-5%
82%
Similarity

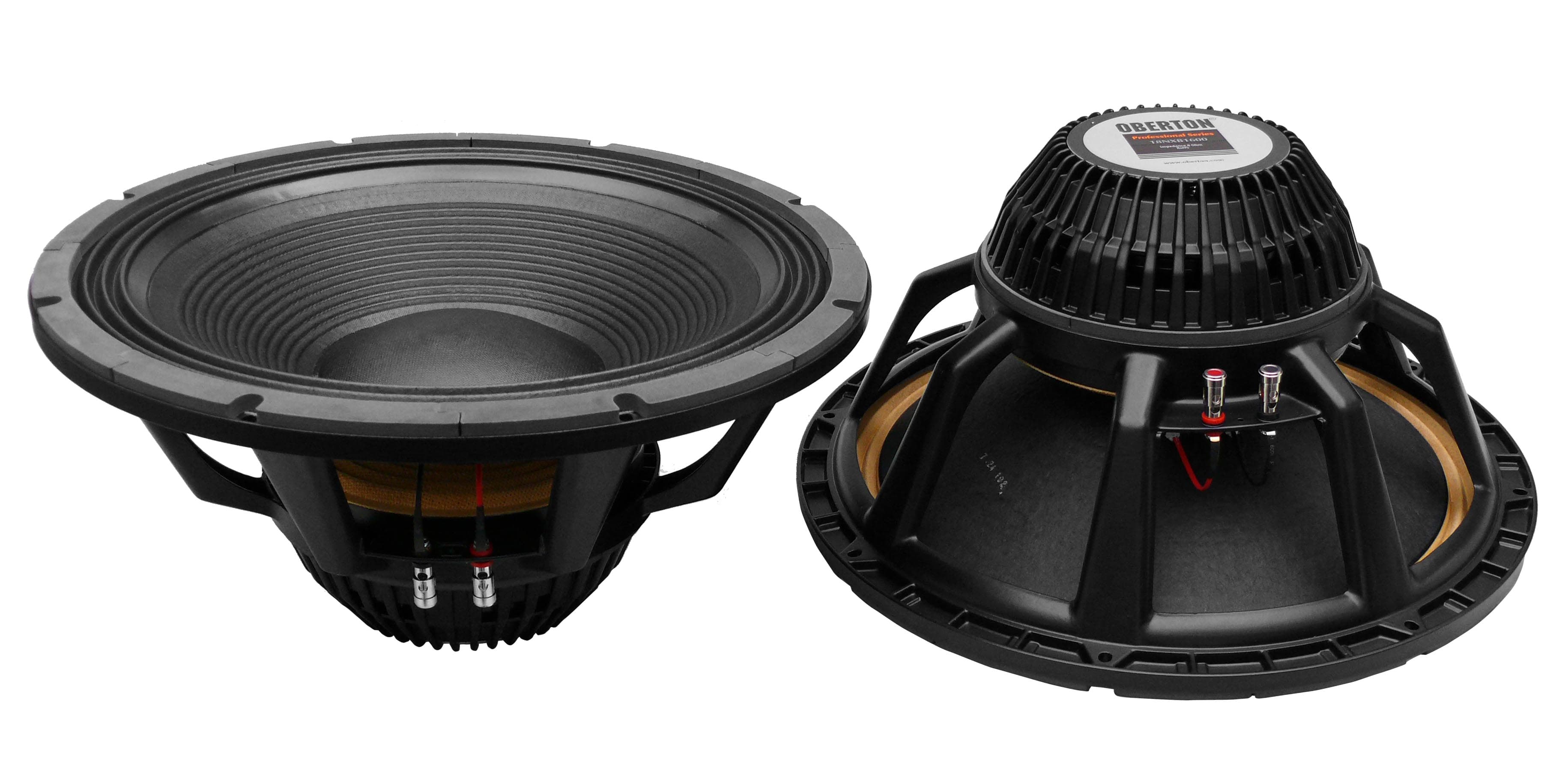

Oberton
18NXB1600
18"
Xmax13.5mm+13%
Qts0.3-2%
BL29.6Tm-9%
Vas173.1L+19%
Qes0.330%
80%
Similarity

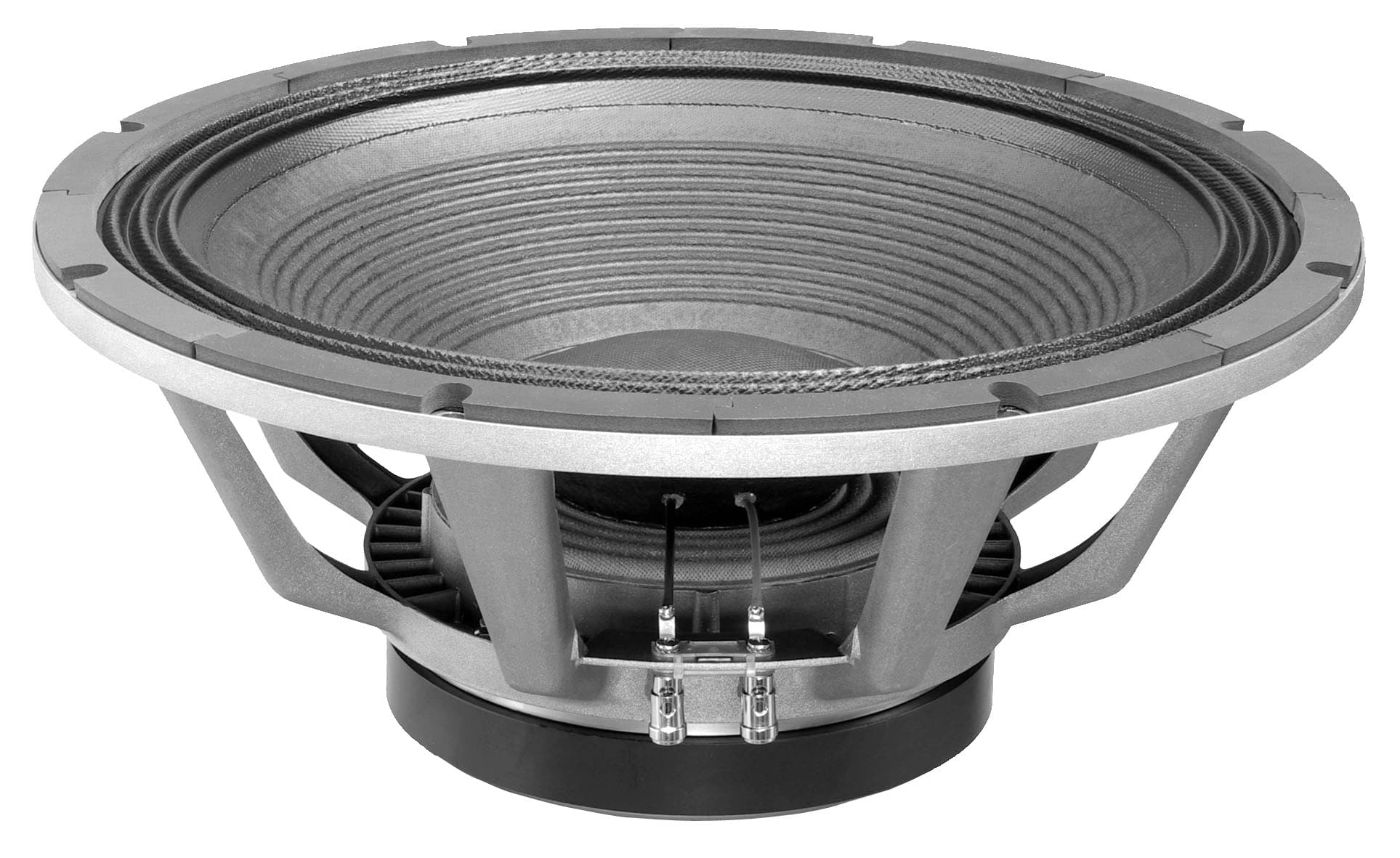

Oberton
18XB1201
18"
Xmax10.5mm-12%
Qts0.32+3%
BL26.7Tm-18%
Vas159.4L+9%
Qes0.330%
79%
Similarity

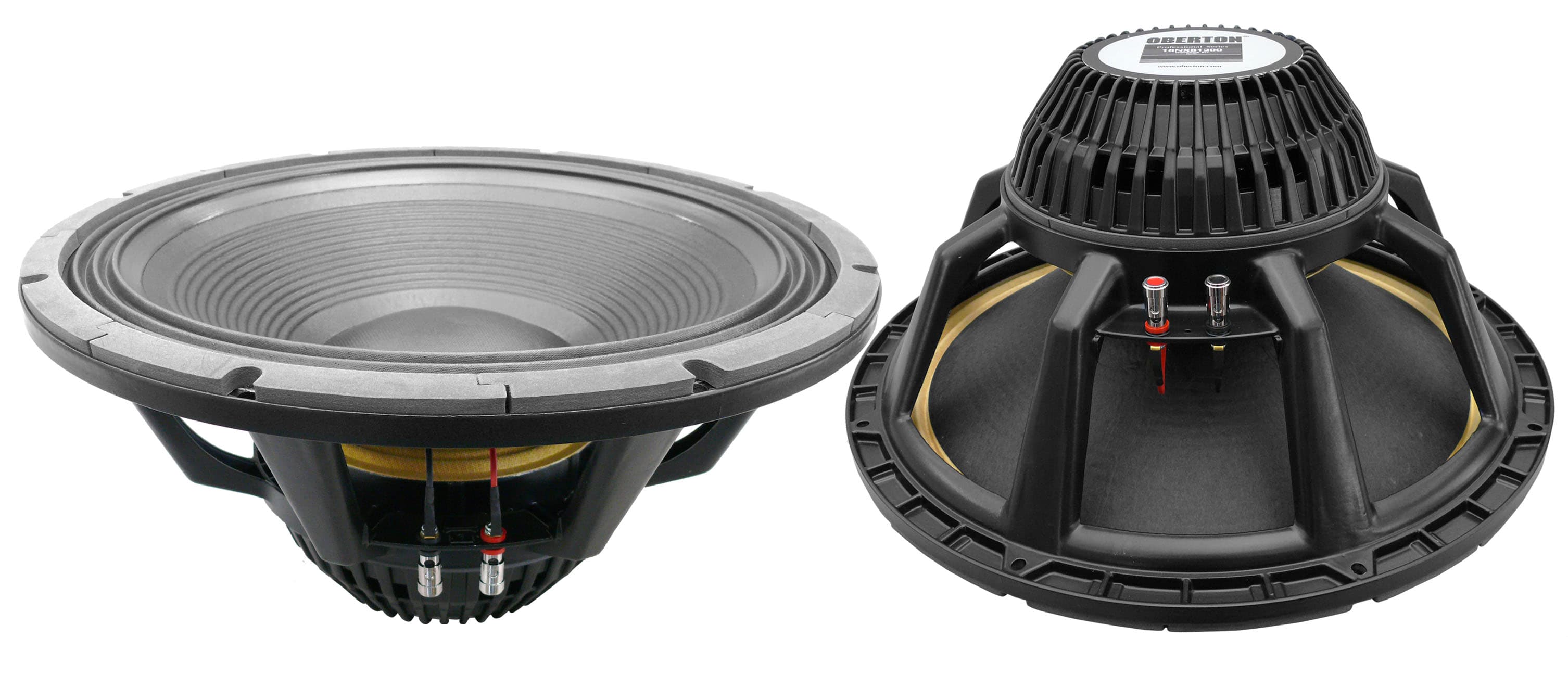

Oberton
18NXB1200
18"
Xmax11.5mm-4%
Qts0.28-9%
BL29.4Tm-10%
Vas159.6L+9%
Qes0.29-12%
78%
Similarity
£809.86

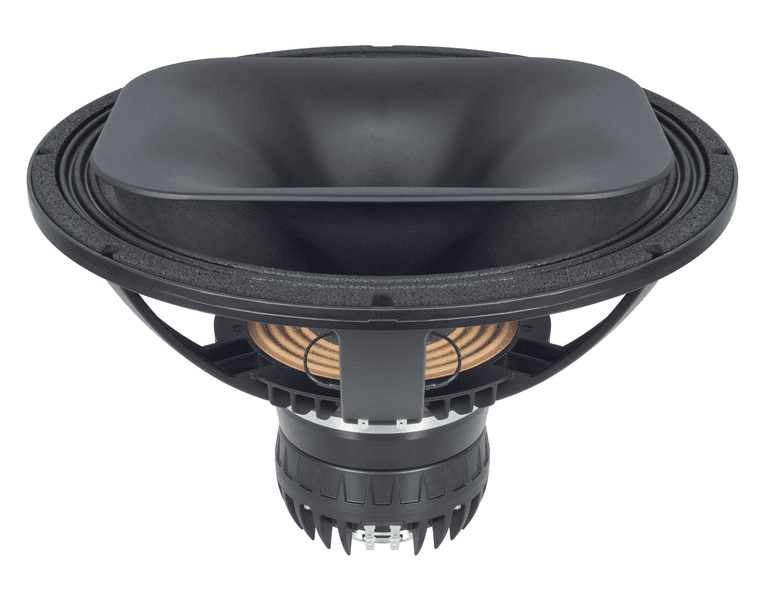

B&C
