LF DriverNERO series
SB Audience
SB Audience NERO-18SW1100D
SB Audience NERO-18SW1100D is a 18" 5 ohm LF driver rated at 2200W RMS. The validated T/S data includes Fs 36Hz, Qts 0.33, Vas 153.1L, Xmax 12.2mm, sensitivity 95.3dB, plus 1533cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
5Ω
RMS Power
2200W
Sensitivity
95.3dB
EBP
106
Vented alignment
Vd
1533cm³
T/S Parameters
Valid
Fs36Hz
Qts0.33
Qes0.34
Qms11.8
Vas153.1L
Re5.0Ω
Le1.36mH
BL30.9Tm
Sd1257cm²
Mms294g
Xmax12.2mm
SPL95dB
Power2200W
Impedance5Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

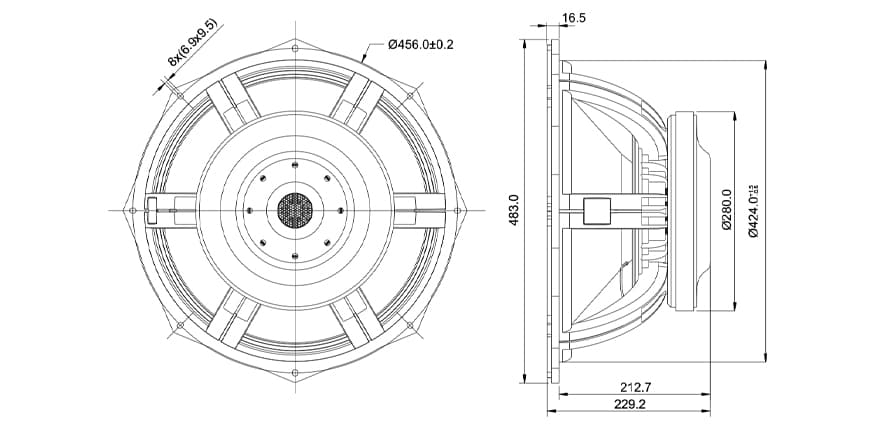

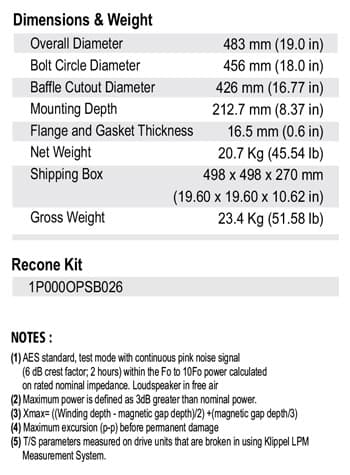

Dimensions & Physical
Weight20.7kg
Diameter483.0mm
Cutout Diameter426.0mm
Bolt Circle Diameter456.0mm
