Oberton 18NXB1600 8Ω
8 Ω · 30–1000 Hz
No current price
- Fs
- 32Hz
- Xmax
- 13.5mm
- SPL
- 95dB
- Pe
- 1600W
- BL
- 29.6T·m
- Vd
- 1563cm³
- Qts
- 0.30
- Vas
- 173L

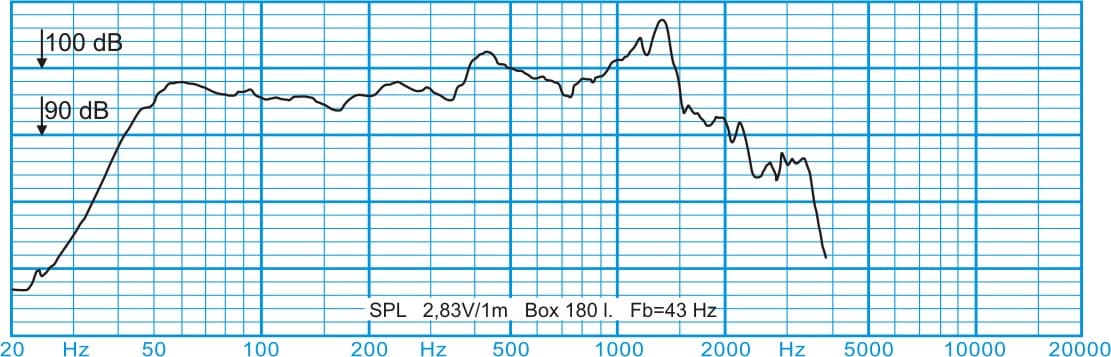

Published graphs
Oberton 18NXB1600 is an 18-inch 8 ohm LF driver rated at 1600 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.30, Vas 173.1 L, Xmax 13.5 mm, sensitivity 94.5 dB, plus 1563 cm³ Vd and 97 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.30
- Qes
- 0.33
- Qms
- 5.1
- Vas
- 173.1L
- Re
- 5.3Ω
- Le
- 1.20mH
Motor and cone
- BL
- 29.6T·m
- Sd
- 1158cm²
- Mms
- 262g
- Xmax
- 13.5mm
- Vd †
- 1563cm³
- Voice coil
- 115mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 94.5dB
- Manufacturer sensitivity
- 50dB
- Power
- 1600W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- Range
- 30–1000Hz
- EBP †
- 97 · Sealed or vented

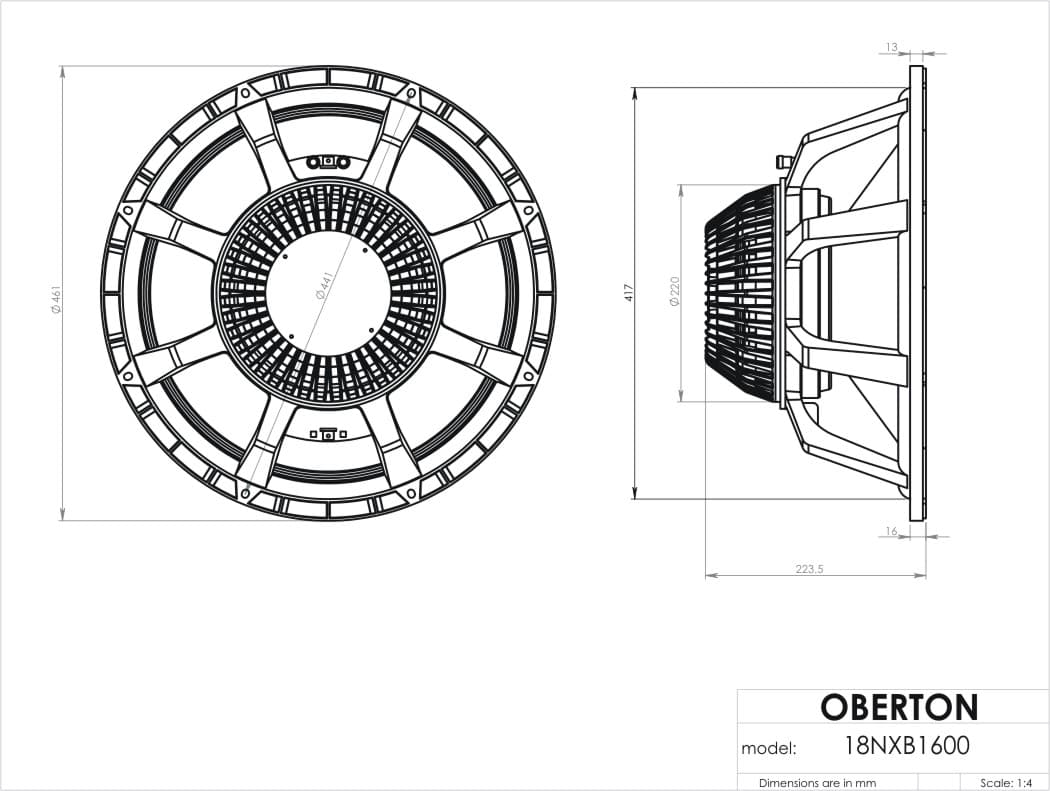

Size and mounting
- Diameter
- 461mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 224mm
- Weight
- 11.7kg
Other published values
- Cms
- 0.09mm/N
- Power Program
- 3200
Sensitivity shows 94.5 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 44.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 18″
- BL
- 29.6T·m
- Fs
- 32Hz
- Le
- 1.20mH
- Re
- 5.3Ω
- Sd
- 1158cm²
- Cms
- 0.09mm/N
- Mms
- 262g
- Qes
- 0.33
- Qms
- 5.1
- Qts
- 0.30
- SPL
- 94.5dB
- Vas
- 173.1L
- Xmax
- 13.5mm
- Power
- 1600W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 50dB
- Low limit
- 30Hz
- Power Program
- 3200
- Calculated sensitivity †
- 94.5dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 50dB
- Min. impedance
- 6.8Ω
- Voice coil
- 115mm
- Weight
- 11.7kg
- Diameter
- 461mm
- Depth
- 224mm
- Cutout
- 417mm
- Bolt circle
- 441mm
