18-inch LF driver · PD series · 114 mm voice coil · 1,500 W
Precision Devices PD.1845-1N 8Ω
8 Ω · 30–1000 Hz
No current price
- Fs
- 34Hz
- Xmax
- 16mm
- SPL
- 95dB
- Pe
- 1500W
- BL
- 26.4T·m
- Vd
- 1853cm³
- Qts
- 0.32
- Vas
- 179L
Precision Devices PD.1845-1N is an 18-inch 8 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.32, Vas 179.0 L, Xmax 16 mm, sensitivity 95.3 dB, plus 1853 cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.32
- Qes
- 0.33
- Qms
- 11.0
- Vas
- 179.0L
- Re
- 4.7Ω
- Le
- 1.58mH
Motor and cone
- BL
- 26.4T·m
- Sd
- 1158cm²
- Mms
- 231g
- Xmax
- 16mm
- Vd †
- 1853cm³
- Voice coil
- 114mm
- Flux density
- 0.92T
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 98.8dB
- Power
- 1500W
- Impedance
- 8Ω
- Range
- 30–1000Hz
- EBP †
- 102 · Leans vented
Size and mounting
- Diameter
- 474mm
- Cutout
- 415mm
- Bolt circle
- 455mm
- Depth
- 200mm
- Weight
- 11.3kg
Other published values
- Cms
- 0.09mm/N
- Power Peak
- 6000
Sensitivity shows 95.3 dB, calculated from the T/S values. Precision Devices publishes 98.8 dB, 3.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Precision Devices lists
LF · Primary · 18″
- BL
- 26.4T·m
- Fs
- 34Hz
- Le
- 1.58mH
- Re
- 4.7Ω
- Sd
- 1158cm²
- Cms
- 0.09mm/N
- Mms
- 231g
- Qes
- 0.33
- Qms
- 11.0
- Qts
- 0.32
- SPL
- 95.3dB
- Vas
- 179.0L
- Xmax
- 16mm
- Power
- 1500W
- Impedance
- 8Ω
- Power Peak
- 6000
- Flux density
- 0.92T
- Sensitivity
- 98.8dB
- Low limit
- 30Hz
- Calculated sensitivity †
- 95.3dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 98.8dB
- Voice coil
- 114mm
- Weight
- 11.3kg
- Diameter
- 474mm
- Depth
- 200mm
- Cutout
- 415mm
- Bolt circle
- 455mm
02
Compare
Same-size drivers, compared with the PD.1845-1N. Clear differences are green when better and red when worse.
No photo
This driverPD.1845-1N
Best price
–
Fs
34 Hz
Qts
0.32
Vas
179.0 L
BL
26.4 T·m
Xmax
16 mm
Sensitivity
95.3 dB
Power
1500 W
FaitalPRO18HP1022
£272.59Fs35 Hz –
Qts0.30 −7%
Vas204.9 L +14%, worse
BL28 T·m +6%
Xmax9.5 mm −41%, worse
Sensitivity96.6 dB +1.3
Eighteen Sound18LW2400
£272.63Fs35 Hz –
Qts0.31 −4%
Vas230 L +28%, worse
BL25.6 T·m −3%
Xmax9.5 mm −41%, worse
Sensitivity96.9 dB +1.6
Beyma18LEX1200ND
£278.64Fs36 Hz +6%
Qts0.33 –
Vas219 L +22%, worse
BL26.4 T·m –
Xmax11 mm −31%, worse
Sensitivity96.7 dB +1.4
Oberton18XB1301DS
£284.15Fs36 Hz +5%
Qts0.30 −7%
Vas172.9 L −3%
BL26.9 T·m –
Xmax12 mm −25%, worse
Sensitivity96 dB +0.7
CIARENDH18-4S
£291.62Fs31 Hz −9%
Qts0.32 –
Vas239 L +33%, worse
BL27.7 T·m +5%
Xmax11.5 mm −28%, worse
Sensitivity95.4 dB –
Eighteen Sound18LW2600
£312.00Fs31 Hz −9%
Qts0.29 −10%, better
Vas187 L +4%
BL31 T·m +17%, better
Xmax14.8 mm −7%
Sensitivity94.7 dB −0.6
RCFLF18N405
£325.54Fs30 Hz −12%, better
Qts0.32 –
Vas227 L +27%, worse
BL26.5 T·m –
Xmax14 mm −13%, worse
Sensitivity94.6 dB −0.7
B&C18DS100
£354.88Fs34 Hz –
Qts0.29 −10%, better
Vas155 L −13%, better
BL30 T·m +14%, better
Xmax14.5 mm −9%
Sensitivity95.1 dB –
FaitalPRO18XL1600
£399.95Fs32 Hz −6%
Qts0.36 +11%, worse
Vas211.4 L +18%, worse
BL26.7 T·m –
Xmax12.9 mm −19%, worse
Sensitivity94.8 dB −0.5
Eighteen Sound18NLW4100
£429.54Fs31 Hz −9%
Qts0.34 +5%
Vas180 L –
BL29 T·m +10%
Xmax15 mm −6%
Sensitivity93.9 dB −1.4
B&C18SW115
£435.74Fs32 Hz −6%
Qts0.30 −7%
Vas187 L +4%
BL30.3 T·m +15%, better
Xmax14 mm −13%, worse
Sensitivity94.9 dB –
BMS18N850V2
£457.13Fs30 Hz −13%, better
Qts0.33 –
Vas243 L +36%, worse
BL25.4 T·m −4%
Xmax12 mm −25%, worse
Sensitivity94.7 dB −0.6

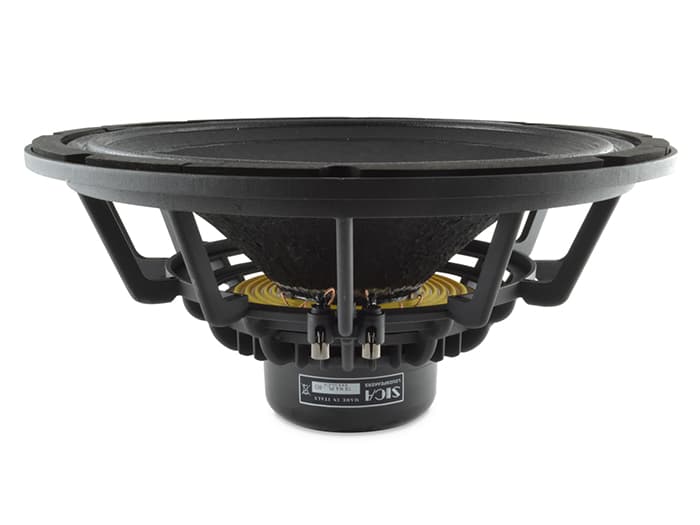

Sica18 K 4 PL
£458.55Fs37 Hz +8%
Qts0.32 –
Vas201 L +12%, worse
BL26.8 T·m –
Xmax6.5 mm −59%, worse
Sensitivity96.6 dB +1.3
FaitalPRO18XL1700
£481.00Fs28 Hz −18%, better
Qts0.28 −14%, better
Vas227 L +27%, worse
BL30.5 T·m +15%, better
Xmax16.2 mm –
Sensitivity94.4 dB −0.9
Eighteen Sound18NLW4500
£485.58Fs35 Hz –
Qts0.33 –
Vas151 L −16%, better
BL30.3 T·m +15%, better
Xmax15.3 mm −4%
Sensitivity94.8 dB −0.5
Eighteen Sound18NLS4000
£486.84Fs27 Hz −21%, better
Qts0.35 +8%
Vas168 L −6%
BL24.2 T·m −8%
Xmax22.3 mm +39%, better
Sensitivity91.7 dB −3.6, worse
EminenceNSW4018-8
£526.30Fs36 Hz +6%
Qts0.38 +17%, worse
Vas164.5 L −8%
BL28.2 T·m +7%
Xmax15.2 mm −5%
Sensitivity95 dB –
Eighteen Sound18NTLW5000
£550.00Fs32 Hz −6%
Qts0.32 –
Vas176 L –
BL31.3 T·m +18%, better
Xmax17.5 mm +9%
Sensitivity94.5 dB −0.8
Eighteen Sound18NLW9000
£550.00Fs34 Hz –
Qts0.31 −4%
Vas206 L +15%, worse
BL28 T·m +6%
Xmax14 mm −13%, worse
Sensitivity96.1 dB +0.8
B&C18HTX100
£809.86Fs44 Hz +29%, worse
Qts0.32 –
Vas173 L −3%
BL26.3 T·m –
Xmax13 mm −19%, worse
Sensitivity98.4 dB +3.1, better
RCFLF18N408
No current priceFs30 Hz −12%, better
Qts0.33 –
Vas193 L +8%
BL25.7 T·m –
Xmax15 mm −6%
Sensitivity93.6 dB −1.7
Oberton18NXB1600
No current priceFs32 Hz −5%
Qts0.30 −6%
Vas173.1 L −3%
BL29.6 T·m +12%, better
Xmax13.5 mm −16%, worse
Sensitivity94.5 dB −0.8
Oberton18XB1201
No current priceFs38 Hz +12%, worse
Qts0.32 –
Vas159.4 L −11%, better
BL26.7 T·m –
Xmax10.5 mm −34%, worse
Sensitivity96.3 dB +1
Oberton18XB700
No current priceFs36 Hz +6%
Qts0.30 −6%
Vas183.2 L –
BL26.1 T·m –
Xmax9 mm −44%, worse
Sensitivity96.4 dB +1.1
Oberton18NXB700
No current priceFs36 Hz +6%
Qts0.31 −4%
Vas155.5 L −13%, better
BL27.8 T·m +5%
Xmax9 mm −44%, worse
Sensitivity95.6 dB –
Beyma118P10FEV2S8
No current priceFs33 Hz −3%
Qts0.32 –
Vas230 L +28%, worse
BL26.8 T·m –
Xmax8 mm −50%, worse
Sensitivity96 dB +0.7

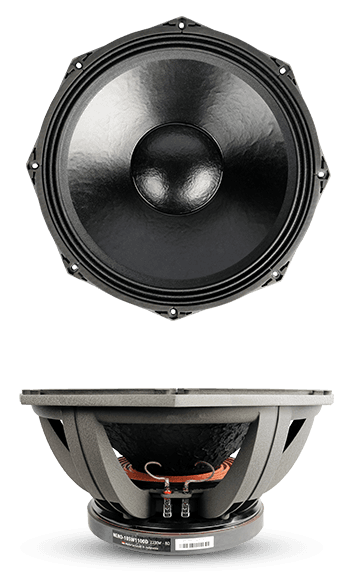

SB AudienceNERO-18SW1100D
No current priceFs36 Hz +6%
Qts0.33 –
Vas153.1 L −14%, better
BL30.9 T·m +17%, better
Xmax12.2 mm −24%, worse
Sensitivity95.3 dB –
VAS Audio18-1700FC
No current priceFs33 Hz −3%
Qts0.29 −9%
Vas181 L –
BL33 T·m +25%, better
Xmax13.5 mm −16%, worse
Sensitivity95.4 dB –
FaneCOLOSSUS 18XB
No current priceFs33 Hz −3%
Qts0.34 +4%
Vas236 L +32%, worse
BL25.9 T·m –
Xmax7.5 mm −53%, worse
Sensitivity95.8 dB +0.5
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
