Overview
LF Driver
Sica

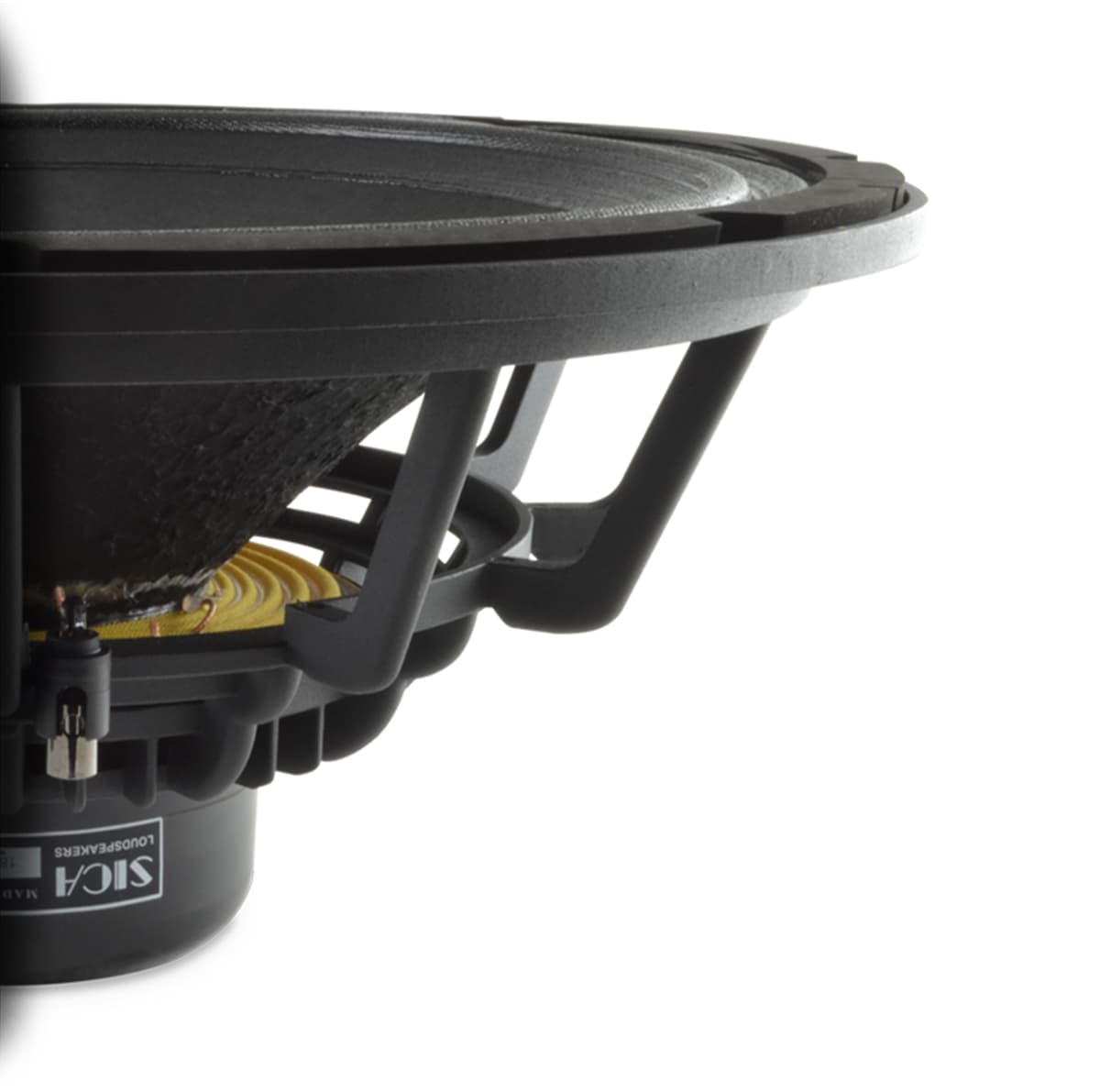

Sica 18 K 4 PL
Sica 18 K 4 PL is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 37Hz, Qts 0.32, Vas 201L, Xmax 6.5mm, sensitivity 96.6dB, plus 757cm³ Vd and 105 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
96.6dB
97.8dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
105
Vented alignment
Vd
757cm³
T/S Parameters
Valid
Fs37Hz
Qts0.32
Qes0.35
Qms4.6
Vas201.0L
Re6.0Ω
Le1.60mH
BL26.8Tm
Sd1164cm²
Mms179g
Xmax6.5mm
SPL97dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.21T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.3kg
Diameter462.0mm
Overall Depth211.0mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
18 K 4 PL
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
Beyma
118P10FEV2S8
18"
Xmax8mm+23%
Qts0.320%
BL26.8Tm0%
Vas230L+14%
Qes0.33-6%
81%
Similarity
Fane
COLOSSUS 18XB
18"
Xmax7.5mm+15%
Qts0.34+5%
BL25.9Tm-3%
Vas236L+17%
Qes0.36+2%
75%
Similarity
£225.00
RCF
L18P300
18"
Xmax8mm+23%
Qts0.33+3%
BL23.5Tm-12%
Vas226L+12%
Qes0.34-3%
74%
Similarity
Oberton
18B450
18"
Xmax7.3mm+12%
Qts0.34+7%
BL22.1Tm-17%
Vas241.6L+20%
Qes0.36+2%
73%
Similarity
Celestion
FTR18-4080F
18"
Xmax6mm-8%
Qts0.31-3%
BL22.5Tm-16%
Vas281.3L+40%
Qes0.34-4%
73%
Similarity
£287.00
Fane
COLOSSUS 18SB
18"
Xmax8.3mm+27%
Qts0.35+8%
BL24Tm-10%
Vas199L-1%
Qes0.37+5%
71%
Similarity
£229.99
B&C
18PZW100
18"
Xmax8mm+23%
Qts0.36+12%
BL25.5Tm-5%
Vas186L-7%
Qes0.38+9%
68%
Similarity
£316.72
BMS
18S430V2
18"
Xmax8mm+23%
Qts0.34+6%
BL23.5Tm-12%
Vas262L+30%
Qes0.36+3%
66%
Similarity
£266.78
Eighteen Sound
18W2001
18"
Xmax7mm+8%
Qts0.25-22%
BL27.1Tm+1%
Vas230L+14%
Qes0.26-26%
64%
Similarity
£238.00
B&C
18PZB100
18"
Xmax8mm+23%
Qts0.28-12%
BL25Tm-7%
Vas164L-18%
Qes0.29-17%
62%
Similarity
Oberton
18FBR700
18"
Xmax8mm+23%
Qts0.27-15%
BL25.2Tm-6%
Vas231.3L+15%
Qes0.28-21%
57%
Similarity
Sica
18 S 4 PL
18"
Xmax8mm+23%
Qts0.39+22%
BL23.5Tm-12%
Vas189L-6%
Qes0.42+20%
