Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF Driver
Fane

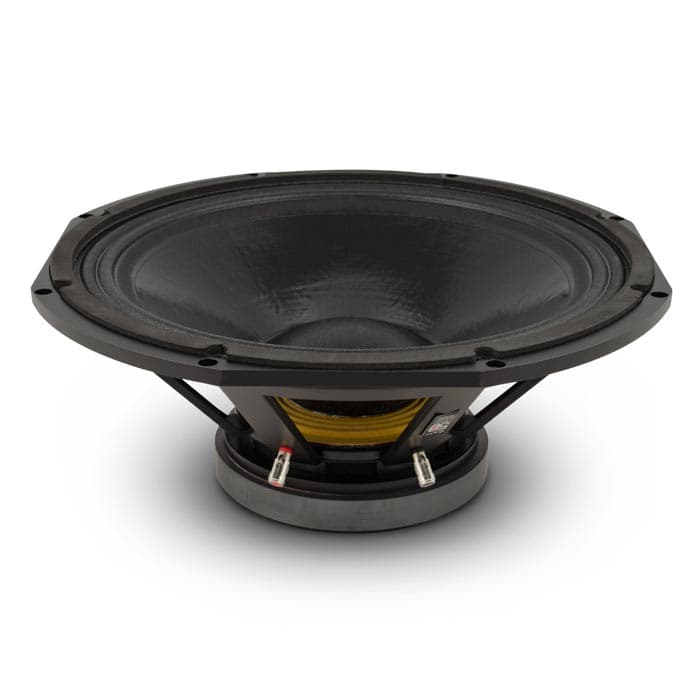

Fane COLOSSUS 18SB
Fane COLOSSUS 18SB is a 18" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 36Hz, Qts 0.35, Vas 199L, Xmax 8.3mm, sensitivity 96.1dB, plus 936cm³ Vd and 98 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £284.00.
Size
18"
Impedance
8Ω
RMS Power
1000W
Sensitivity
96.1dB
100.0dBmanufacturer; using T/S-derived value (3.9dB delta).
EBP
98
Either alignment
Vd
936cm³
T/S Parameters
Valid
Fs36Hz
Qts0.35
Qes0.37
Qms6.6
Vas199.0L
Re5.2Ω
Le2.23mH
BL24.0Tm
Sd1134cm²
Mms177g
Xmax8.3mm
SPL96dB
Power1000W
Impedance8Ω
F Low35Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£284.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight27.6kg
Diameter485.1mm
Overall Depth200.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fane
COLOSSUS 18SB
18"
Best current price
£284.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
28% cheaper£205.00
B&C
18PS100
18"
Lower price
Xmax8mm-3%
Qts0.39+13%
BL22.5Tm-6%
Vas245L+23%
Qes0.41+12%
59%
Similarity
28% cheaper£205.00
B&C
18PS100
18"
Lower price
Xmax7mm-15%
Qts0.4+16%
BL20Tm-17%
Vas251L+26%
Qes0.42+15%
66%
Similarity
24% cheaper£215.75
RCF
LF18G401
18"
Lower price
Xmax9mm+9%
Qts0.29-16%
BL24.6Tm+3%
Vas268L+35%
Qes0.3-18%
87%
Similarity
21% cheaper£225.00
RCF
L18P300
18"
Lower price
Xmax8mm-3%
Qts0.33-5%
BL23.5Tm-2%
Vas226L+14%
Qes0.34-7%
67%
Similarity
19% cheaper£229.00
FaitalPRO
18HP1022
18"
Lower price
Xmax9.5mm+15%
Qts0.3-13%
BL28Tm+17%
Vas204.9L+3%
Qes0.31-15%
89%
Similarity
19% cheaper£229.99
B&C
18PZW100
18"
Lower price
Xmax8mm-3%
Qts0.36+4%
BL25.5Tm+6%
Vas186L-7%
Qes0.38+4%
75%
Similarity
19% cheaper£230.00
Celestion
ERPROX18
18"
Lower price
Xmax9.5mm+15%
Qts0.38+10%
BL24.4Tm+2%
Vas188.9L-5%
Qes0.43+18%
51%
Similarity
16% cheaper£237.20
Celestion
FTR18-4080HDX
18"
Lower price
Xmax10.1mm+22%
Qts0.43+24%
BL21.3Tm-11%
Vas174.9L-12%
Qes0.47+27%
70%
Similarity
16% cheaper£238.00
B&C
18PZB100
18"
Lower price
Xmax8mm-3%
Qts0.28-19%
BL25Tm+4%
Vas164L-18%
Qes0.29-21%
89%
Similarity
16% cheaper£238.99
B&C
18TBX100
18"
Lower price
Xmax9mm+9%
Qts0.35+1%
BL25.5Tm+6%
Vas212L+7%
Qes0.37+1%
72%
Similarity
16% cheaper£238.99
B&C
18TBX100
18"
Lower price
Xmax9mm+9%
Qts0.31-10%
BL22Tm-8%
Vas256L+29%
Qes0.33-10%
46%
Similarity
16% cheaper£239.00
Precision Devices
PD.185C001
18"
Lower price
Xmax10.5mm+27%
Qts0.4+16%
BL21Tm-12%
Vas302L+52%
Qes0.42+16%
