LF DriverXL series
FaitalPRO

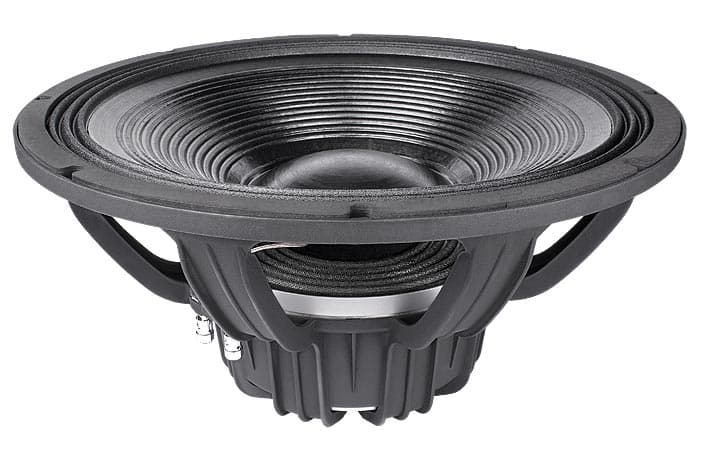

FaitalPRO 18XL1600
FaitalPRO 18XL1600 is a 18" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 32Hz, Qts 0.36, Vas 211.4L, Xmax 12.9mm, sensitivity 94.8dB, plus 1566cm³ Vd and 86 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £399.95.
Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
94.8dB
98.0dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
86
Either alignment
Vd
1566cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees219 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
219 plotted pointsMedium confidence813 selected pixels of 1,087 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,150 selected pixels of 1,798 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,334 selected pixels of 1,704
T/S Parameters
Valid
Fs32Hz
Qts0.36
Qes0.37
Qms9.3
Vas211.4L
Re5.4Ω
Le1.45mH
BL26.7Tm
Sd1212cm²
Mms240g
Xmax12.9mm
SPL95dB
Power1600W
Impedance8Ω
F Low30Hz
F High1500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£399.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.2kg
Diameter460.0mm
Overall Depth231.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter440.0mm
