Eighteen Sound design
2x18" subwoofer
- Drivers
- 18TLW3000or 18LW2420or 18LW2600or 18LW4100
18-inch LF driver · 1,800 W
Eighteen Sound 18TLW3000 8Ω
30–2000 Hz
£354.77
3.8%Lean Audio · 2 in stock · All 4 offers
- Fs
- 33Hz
- Xmax
- 12mm
- SPL
- 94dB
- Pe
- 1800W
- BL
- 24.5T·m
- Vd
- 1470cm³
- Qts
- 0.41
- Vas
- 185L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

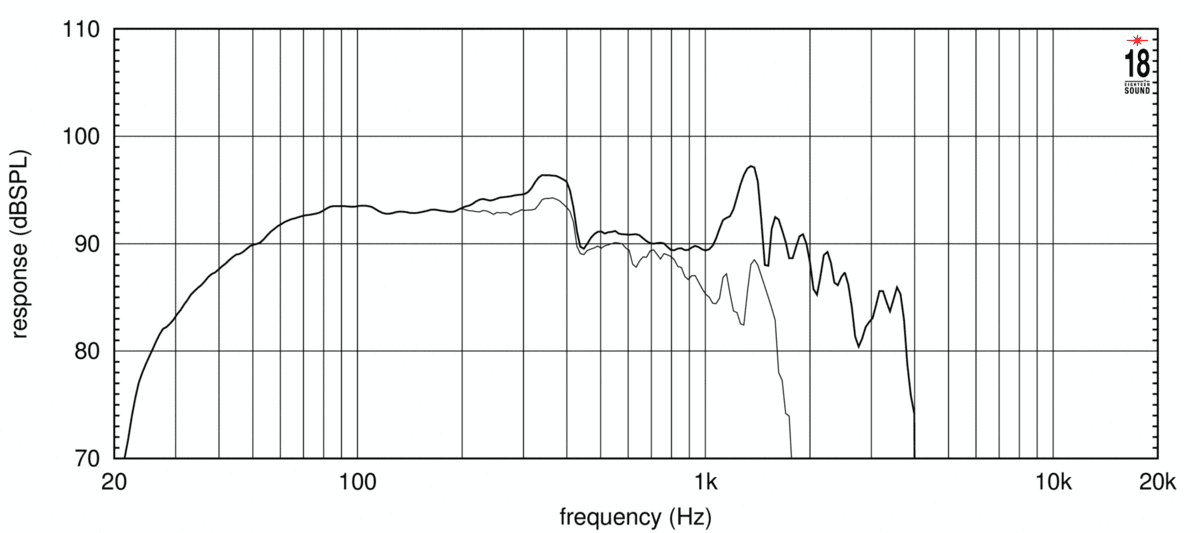

Frequency response
240 plotted pointsMedium confidence3,020 selected pixels of 4,292 - Trace datasheet-response-trace-poc/v1
impedance

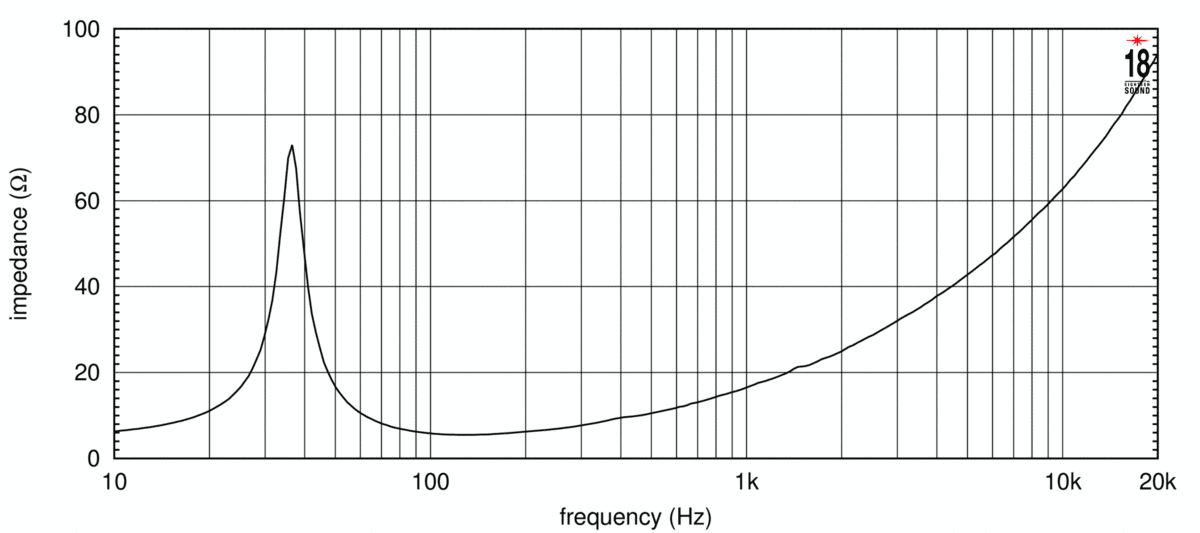

Impedance response
240 plotted pointsMedium confidence4,142 selected pixels of 4,462
Published graphs
Eighteen Sound 18TLW3000 is an 18-inch 8 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.41, Vas 185 L, Xmax 12 mm, sensitivity 94 dB, plus 1470 cm³ Vd and 79 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £337.44.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.41
- Qes
- 0.42
- Qms
- 13
- Vas
- 185L
- Re
- 4.6Ω
- Le
- 1.80mH
Motor and cone
- BL
- 24.5T·m
- Sd
- 1225cm²
- Mms
- 266g
- Xmax
- 12mm
- Vd †
- 1470cm³
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 95dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 8Ω
- Range
- 30–2000Hz
- EBP †
- 79 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 438mm
- Depth
- 275mm
- Weight
- 13.2kg
Other published values
- Power Program
- 3600
Sensitivity shows 94.0 dB, calculated from the T/S values. Eighteen Sound publishes 95.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 24.5T·m
- Fs
- 33Hz
- Le
- 1.80mH
- Re
- 4.6Ω
- Sd
- 1225cm²
- Mms
- 266g
- Qes
- 0.42
- Qms
- 13
- Qts
- 0.41
- SPL
- 94dB
- Vas
- 185L
- Xmax
- 12mm
- Power
- 1800W
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 30Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 94dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 13.2kg
- Diameter
- 462mm
- Depth
- 275mm
- Cutout
- 416mm
- Bolt circle
- 438mm
02
Designs
Cabinets for the 18TLW3000: three designs and a suggested box from Eighteen Sound.
All 18TLW3000 designsHow we find designsEighteen Sound’s designs
From the maker, with plans to download
Eighteen Sound design
18’’ horn loaded subwoofer
- Drivers
- 18TLW3000or 18LW2500or 18LW2400
Eighteen Sound design
Single 18” subwoofer
- Drivers
- 18TLW3000or 18LW2500or 18NLW4000or 18LW2400or 18LW1400
Eighteen Sound’s suggested box
From Eighteen Sound’s 18TLW3000 page
- Net volume
- 180L
- Tuning
- 35Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
