Fane COLOSSUS 18XB 4Ω
4 Ω · 35–1000 Hz
No current price
- Fs
- 33Hz
- Xmax
- 7.5mm
- SPL
- 96dB
- Pe
- 1000W
- BL
- 25.9T·m
- Vd
- 848cm³
- Qts
- 0.34
- Vas
- 236L

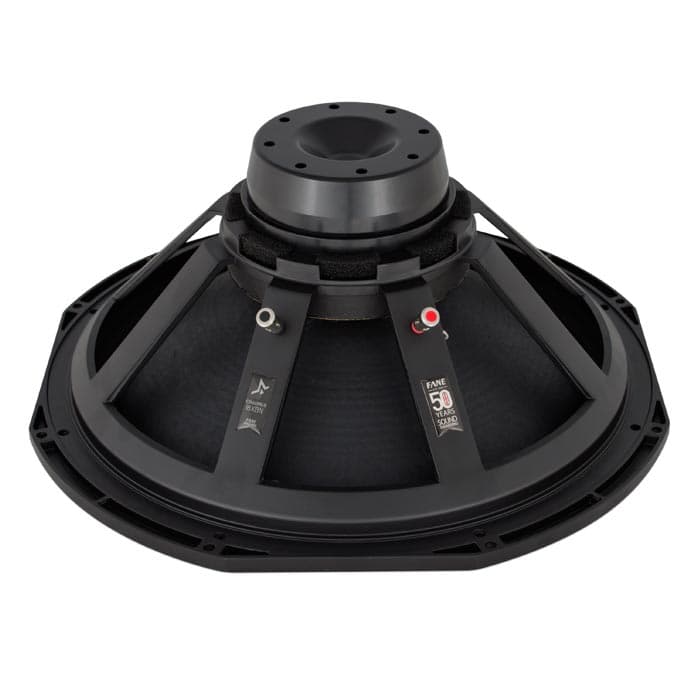

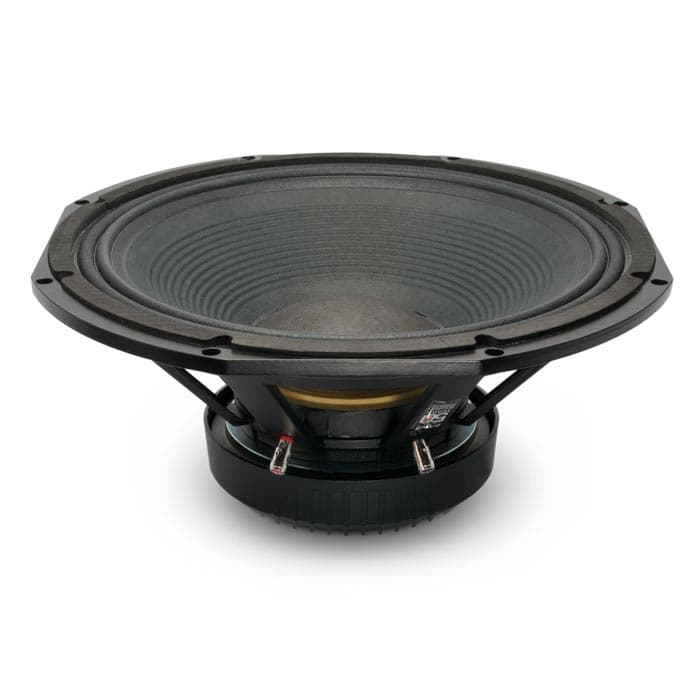

Fane COLOSSUS 18XB is an 18-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.34, Vas 236 L, Xmax 7.5 mm, sensitivity 95.8 dB, plus 848 cm³ Vd and 92 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.34
- Qes
- 0.36
- Qms
- 5.8
- Vas
- 236L
- Re
- 6.5Ω
- Le
- 1.99mH
Motor and cone
- BL
- 25.9T·m
- Sd
- 1131cm²
- Mms
- 173g
- Xmax
- 7.5mm
- Vd †
- 848cm³
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 99dB
- Power
- 1000W
- Impedance
- 4Ω
- Range
- 35–1000Hz
- EBP †
- 92 · Sealed or vented
Size and mounting
- Diameter
- 485mm
- Depth
- 205mm
- Weight
- 14.2kg
Other published values
- Cms
- 0.13mm/N
- Power Peak
- 4000
- Power Program
- 2000
Sensitivity shows 95.8 dB, calculated from the T/S values. Fane publishes 99.0 dB, 3.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 18″
- BL
- 25.9T·m
- Fs
- 33Hz
- Le
- 1.99mH
- Re
- 6.5Ω
- Sd
- 1131cm²
- Cms
- 0.13mm/N
- Mms
- 173g
- Qes
- 0.36
- Qms
- 5.8
- Qts
- 0.34
- SPL
- 95.8dB
- Vas
- 236L
- Xmax
- 7.5mm
- Power
- 1000W
- Impedance
- 4Ω
- Power Peak
- 4000
- Sensitivity
- 99dB
- Low limit
- 35Hz
- Power Program
- 2000
- Calculated sensitivity †
- 95.8dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 99dB
- Weight
- 14.2kg
- Diameter
- 485mm
- Depth
- 205mm
