Overview
LF Driver18B series
Oberton
Oberton 18B450
Oberton 18B450 is a 18" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 34Hz, Qts 0.34, Vas 241.6L, Xmax 7.3mm, sensitivity 96.4dB, plus 805cm³ Vd and 96 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.4dB
50.0dBmanufacturer; using T/S-derived value (46.4dB delta).
EBP
96
Either alignment
Vd
805cm³
T/S Parameters
Valid
Fs34Hz
Qts0.34
Qes0.36
Qms8.0
Vas241.6L
Re5.3Ω
Le1.49mH
BL22.1Tm
Sd1110cm²
Mms153g
Xmax7.3mm
SPL96dB
Power500W
Impedance8Ω
Min Impedance6.4Ω
F Low35Hz
F High1000Hz
Voice Coil77mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

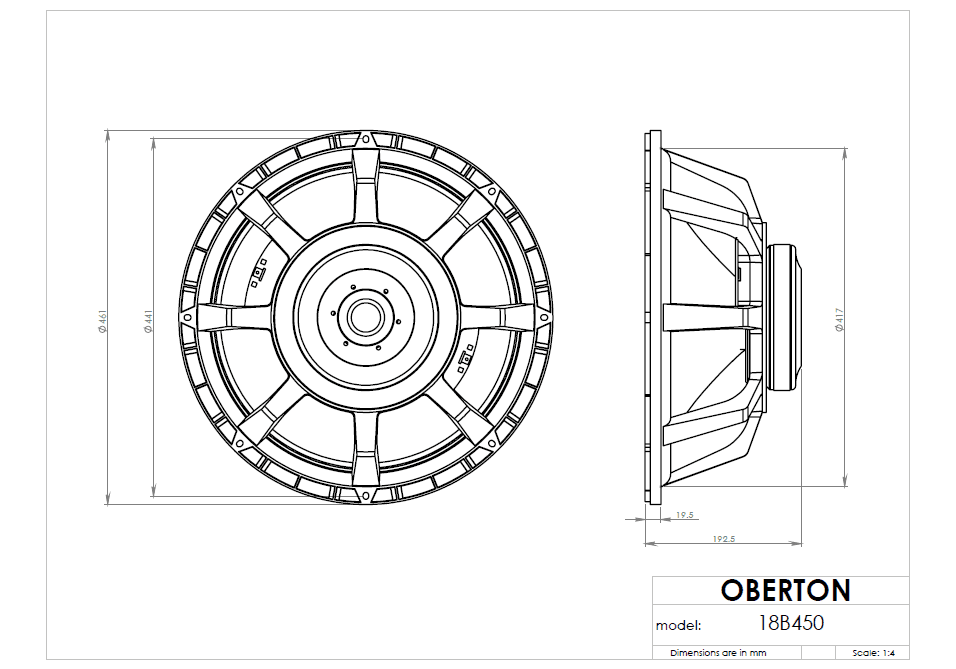

Dimensions & Physical
Weight8.6kg
Diameter461.0mm
Overall Depth192.5mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
