Eighteen Sound design
2x18" subwoofer
- Drivers
- 18TLW3000or 18LW2420or 18LW2600or 18LW4100
18-inch LF driver · 1,300 W
Eighteen Sound 18LW2420 8Ω
35–2500 Hz
£279.00
SteadyLean Business · All 3 offers
- Fs
- 32Hz
- Xmax
- 10mm
- SPL
- 96dB
- Pe
- 1300W
- BL
- 25.3T·m
- Vd
- 1225cm³
- Qts
- 0.33
- Vas
- 252L

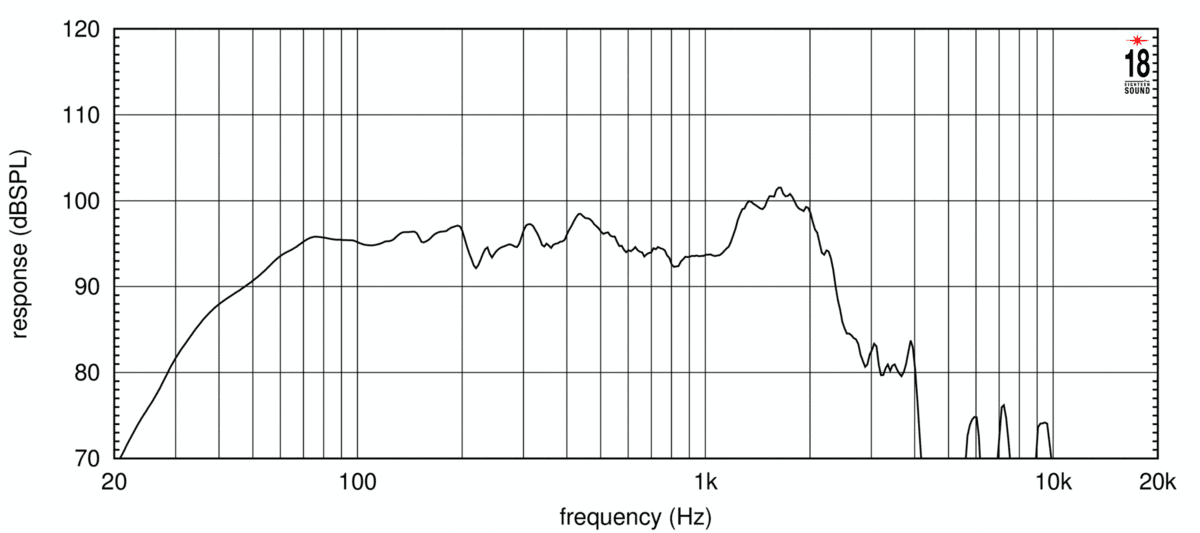

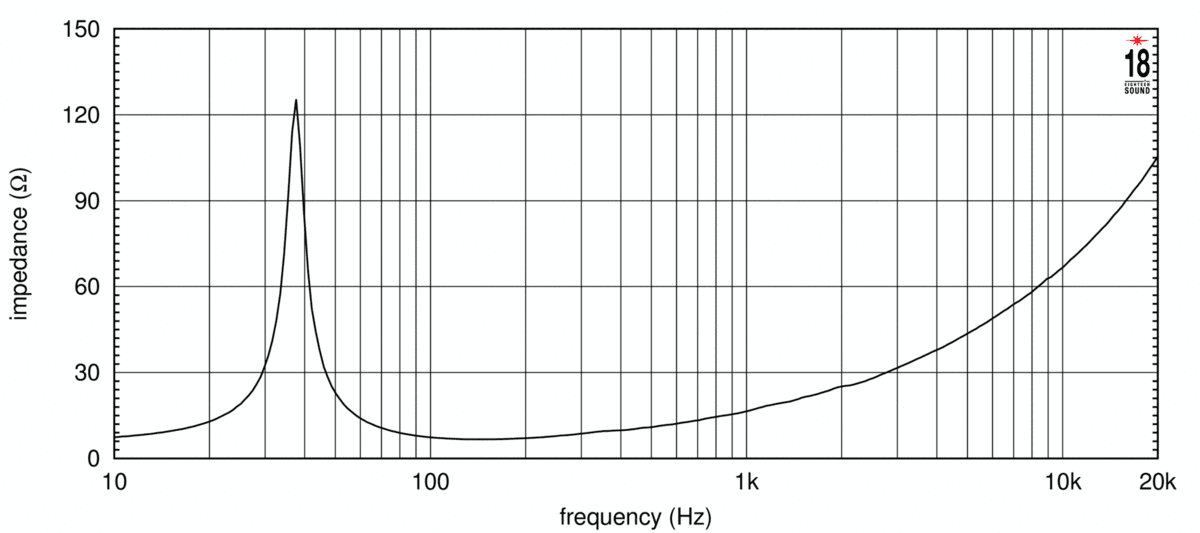

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,108 selected pixels of 1,796
Published graphs
Eighteen Sound 18LW2420 is an 18-inch 8 ohm LF driver rated at 1300 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.33, Vas 252 L, Xmax 10 mm, sensitivity 95.8 dB, plus 1225 cm³ Vd and 91 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £279.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 10.5
- Vas
- 252L
- Re
- 5.3Ω
- Le
- 1.90mH
Motor and cone
- BL
- 25.3T·m
- Sd
- 1225cm²
- Mms
- 206g
- Xmax
- 10mm
- Vd †
- 1225cm³
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 98dB
- Power
- 1300W
- Nominal power
- 1300W
- Impedance
- 8Ω
- Range
- 35–2500Hz
- EBP †
- 91 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 215mm
- Weight
- 12.4kg
Other published values
- Power Program
- 2600
Sensitivity shows 95.8 dB, calculated from the T/S values. Eighteen Sound publishes 98.0 dB, 2.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 25.3T·m
- Fs
- 32Hz
- Le
- 1.90mH
- Re
- 5.3Ω
- Sd
- 1225cm²
- Mms
- 206g
- Qes
- 0.35
- Qms
- 10.5
- Qts
- 0.33
- SPL
- 95.8dB
- Vas
- 252L
- Xmax
- 10mm
- Power
- 1300W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 35Hz
- Nominal power
- 1300W
- Power Program
- 2600
- Calculated sensitivity †
- 95.8dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 12.4kg
- Diameter
- 462mm
- Depth
- 215mm
- Cutout
- 422mm
- Bolt circle
- 440mm
02
Designs
Cabinets for the 18LW2420: a design and a suggested box from Eighteen Sound.
All 18LW2420 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 18LW2420 page
- Net volume
- 220L
- Tuning
- 37Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
