18-inch LF driver · 1,300 W
Eighteen Sound 18LW2420 4Ω
30–2000 Hz
No price for delivery to the UK
- Fs
- 34Hz
- Xmax
- 10mm
- SPL
- 96dB
- Pe
- 1300W
- BL
- 20.2T·m
- Vd
- 1225cm³
- Qts
- 0.31
- Vas
- 208L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 00c58d570bea…Medium confidence1,553 selected pixels of 1,850 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 00c58d570bea…Medium confidence588 selected pixels of 826
Published graphs

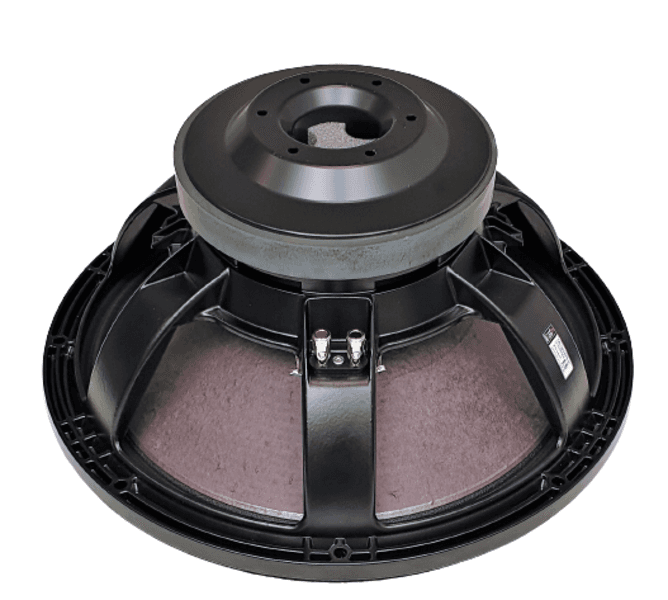

Eighteen Sound 18LW2420 is an 18-inch 4 ohm LF driver rated at 1300 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.31, Vas 208 L, Xmax 10 mm, sensitivity 96.1 dB, plus 1225 cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.31
- Qes
- 0.32
- Qms
- 6.9
- Vas
- 208L
- Re
- 2.8Ω
- Le
- 0.87mH
Motor and cone
- BL
- 20.2T·m
- Sd
- 1225cm²
- Mms
- 221g
- Xmax
- 10mm
- Vd †
- 1225cm³
Power and response
- Sensitivity †
- 96.1dB
- Manufacturer sensitivity
- 98dB
- Power
- 1300W
- Nominal power
- 1300W
- Impedance
- 4Ω
- Range
- 30–2000Hz
- EBP †
- 106 · Leans vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 215mm
- Weight
- 12.4kg
Other published values
- Power Program
- 2600
Sensitivity shows 96.1 dB, calculated from the T/S values. Eighteen Sound publishes 98.0 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 20.2T·m
- Fs
- 34Hz
- Le
- 0.87mH
- Re
- 2.8Ω
- Sd
- 1225cm²
- Mms
- 221g
- Qes
- 0.32
- Qms
- 6.9
- Qts
- 0.31
- SPL
- 96.1dB
- Vas
- 208L
- Xmax
- 10mm
- Power
- 1300W
- Impedance
- 4Ω
- Sensitivity
- 98dB
- Low limit
- 30Hz
- Nominal power
- 1300W
- Power Program
- 2600
- Calculated sensitivity †
- 96.1dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 12.4kg
- Diameter
- 462mm
- Depth
- 215mm
- Cutout
- 422mm
- Bolt circle
- 440mm
02
Designs
Cabinets for the 18LW2420: a design and a suggested box from Eighteen Sound.
All 18LW2420 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 18LW2420 page
- Net volume
- 220L
- Tuning
- 37Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18LW2420. Clear differences are green when better and red when worse.
This driver18LW2420
Best price
–
Fs
34 Hz
Qts
0.31
Vas
208 L
BL
20.2 T·m
Xmax
10 mm
Sensitivity
96.1 dB
Power
1300 W
RCFL18P300
£225.00Fs33 Hz –
Qts0.33 +6%
Vas226 L +9%
BL23.5 T·m +16%, better
Xmax8 mm −20%, worse
Sensitivity95.8 dB –
B&C18RBX100
£226.58Fs40 Hz +18%, worse
Qts0.34 +10%
Vas220 L +6%
BL25.1 T·m +24%, better
Xmax10 mm –
Sensitivity98 dB +1.9
B&C18TBW100
£227.52Fs33 Hz –
Qts0.32 +3%
Vas181.5 L −13%, better
BL22.8 T·m +13%, better
Xmax12 mm +20%, better
Sensitivity94.9 dB −1.2
B&C18NW100
£234.45Fs30 Hz −12%, better
Qts0.27 −13%, better
Vas203.5 L –
BL24.7 T·m +22%, better
Xmax9 mm −10%, worse
Sensitivity95 dB −1.1
B&C18TBX100
£234.85Fs30 Hz −12%, better
Qts0.31 –
Vas256 L +23%, worse
BL22 T·m +9%
Xmax9 mm −10%, worse
Sensitivity95.2 dB −0.9
FaitalPRO18HP1010
£246.55Fs35 Hz –
Qts0.31 –
Vas225.9 L +9%
BL18.4 T·m −9%
Xmax9.8 mm –
Sensitivity96.8 dB +0.7
Beyma18P1000FEV2S
£249.00Fs33 Hz –
Qts0.32 +3%
Vas230 L +11%, worse
BL26.8 T·m +33%, better
Xmax8 mm −20%, worse
Sensitivity96 dB –
RCFLF18G401
£252.42Fs33 Hz –
Qts0.29 −6%
Vas268 L +29%, worse
BL24.6 T·m +22%, better
Xmax9 mm −10%, worse
Sensitivity97.1 dB +1
FaitalPRO18HP1022
£265.78Fs35 Hz –
Qts0.30 −3%
Vas204.9 L –
BL28 T·m +39%, better
Xmax9.5 mm −5%
Sensitivity96.6 dB +0.5
Eighteen Sound18LW1400
£266.74Fs33 Hz –
Qts0.32 +3%
Vas210 L –
BL22.1 T·m +9%
Xmax9 mm −10%, worse
Sensitivity95.5 dB −0.6
Eighteen Sound18LW2400
£272.63Fs33 Hz –
Qts0.32 +3%
Vas235 L +13%, worse
BL18 T·m −11%, worse
Xmax9.5 mm −5%
Sensitivity96.1 dB –
Beyma18PW1400FE
£273.68Fs32 Hz −6%
Qts0.27 −13%, better
Vas228.9 L +10%, worse
BL29 T·m +44%, better
Xmax10 mm –
Sensitivity96.3 dB –
B&C18NBX100
£274.00Fs35 Hz –
Qts0.37 +19%, worse
Vas192 L −8%
BL22 T·m +9%
Xmax10 mm –
Sensitivity95.3 dB −0.8
Beyma18LEX1200ND
£278.64Fs36 Hz +6%
Qts0.33 +6%
Vas219 L +5%
BL26.4 T·m +31%, better
Xmax11 mm +10%, better
Sensitivity96.7 dB +0.6
FaneCOLOSSUS 18SB
£279.00Fs36 Hz +6%
Qts0.35 +12%, worse
Vas199 L −4%
BL24 T·m +19%, better
Xmax8.3 mm −18%, worse
Sensitivity96.1 dB –
FaitalPRO18HP1030
£300.04Fs35 Hz –
Qts0.32 +3%
Vas172.2 L −17%, better
BL21.7 T·m +7%
Xmax12.4 mm +24%, better
Sensitivity95.5 dB −0.6
Eighteen Sound18TLW3000
£336.82Fs32 Hz −6%
Qts0.35 +13%, worse
Vas185 L −11%, better
BL20 T·m –
Xmax12 mm +20%, better
Sensitivity94.3 dB −1.8
FaitalPRO18HW1070
£350.19Fs32 Hz −6%
Qts0.33 +6%
Vas191.5 L −8%
BL21.6 T·m +7%
Xmax13 mm +30%, better
Sensitivity94.7 dB −1.4
FaitalPRO18XL1600
£399.95Fs32 Hz −6%
Qts0.31 –
Vas201.1 L −3%
BL21.7 T·m +7%
Xmax12.9 mm +29%, better
Sensitivity95.2 dB −0.9
FaitalPRO18HP1060
£435.44Fs35 Hz –
Qts0.33 +6%
Vas184.4 L −11%, better
BL20.7 T·m –
Xmax12.4 mm +24%, better
Sensitivity95.7 dB –
FaneCOLOSSUS 18-800N
No current priceFs38 Hz +12%, worse
Qts0.31 –
Vas217 L +4%
BL24 T·m +19%, better
Xmax8 mm −20%, worse
Sensitivity97.7 dB +1.6
Precision DevicesPD.184C002
No current priceFs40 Hz +18%, worse
Qts0.34 +10%
Vas268 L +29%, worse
BL21 T·m +4%
Xmax9.7 mm −3%
Sensitivity98.8 dB +2.7, better
Oberton18XB700
No current priceFs36 Hz +6%
Qts0.30 –
Vas183.2 L −12%, better
BL26.1 T·m +29%, better
Xmax9 mm −10%, worse
Sensitivity96.4 dB –
Oberton18XB1201
No current priceFs38 Hz +12%, worse
Qts0.32 –
Vas159.4 L −23%, better
BL26.7 T·m +32%, better
Xmax10.5 mm +5%
Sensitivity96.3 dB –
Oberton18B35
No current priceFs32 Hz −7%
Qts0.32 +5%
Vas333.6 L +60%, worse
BL19.3 T·m −4%
Xmax9 mm −10%, worse
Sensitivity97 dB +0.9
Oberton18NXB700
No current priceFs36 Hz +7%
Qts0.31 –
Vas155.5 L −25%, better
BL27.8 T·m +38%, better
Xmax9 mm −10%, worse
Sensitivity95.6 dB −0.5
RCFLF18G908
No current priceFs33 Hz –
Qts0.29 −6%
Vas268 L +29%, worse
BL24.6 T·m +22%, better
Xmax9 mm −10%, worse
Sensitivity97.1 dB +1
Oberton18B500
No current priceFs35 Hz –
Qts0.28 −11%, better
Vas243.9 L +17%, worse
BL24.1 T·m +19%, better
Xmax8.8 mm −13%, worse
Sensitivity97.7 dB +1.6
Sica18 S 4 CP
No current priceFs33 Hz –
Qts0.35 +13%, worse
Vas225 L +8%
BL23.5 T·m +16%, better
Xmax11 mm +10%, better
Sensitivity95.2 dB −0.9
Eighteen Sound18W1300
No current priceFs35 Hz –
Qts0.33 +6%
Vas336 L +62%, worse
BL20.4 T·m –
Xmax8.5 mm −15%, worse
Sensitivity98.2 dB +2.1, better
