18-inch LF driver · 18TBX series · 100 mm voice coil · 1,200 W
B&C 18TBX100 4Ω
35–1000 Hz
£239.00
0.4%Thomann · In stock · All 6 offers
- Fs
- 30Hz
- Xmax
- 9mm
- SPL
- 95dB
- Pe
- 1200W
- BL
- 22T·m
- Vd
- 1089cm³
- Qts
- 0.31
- Vas
- 256L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL

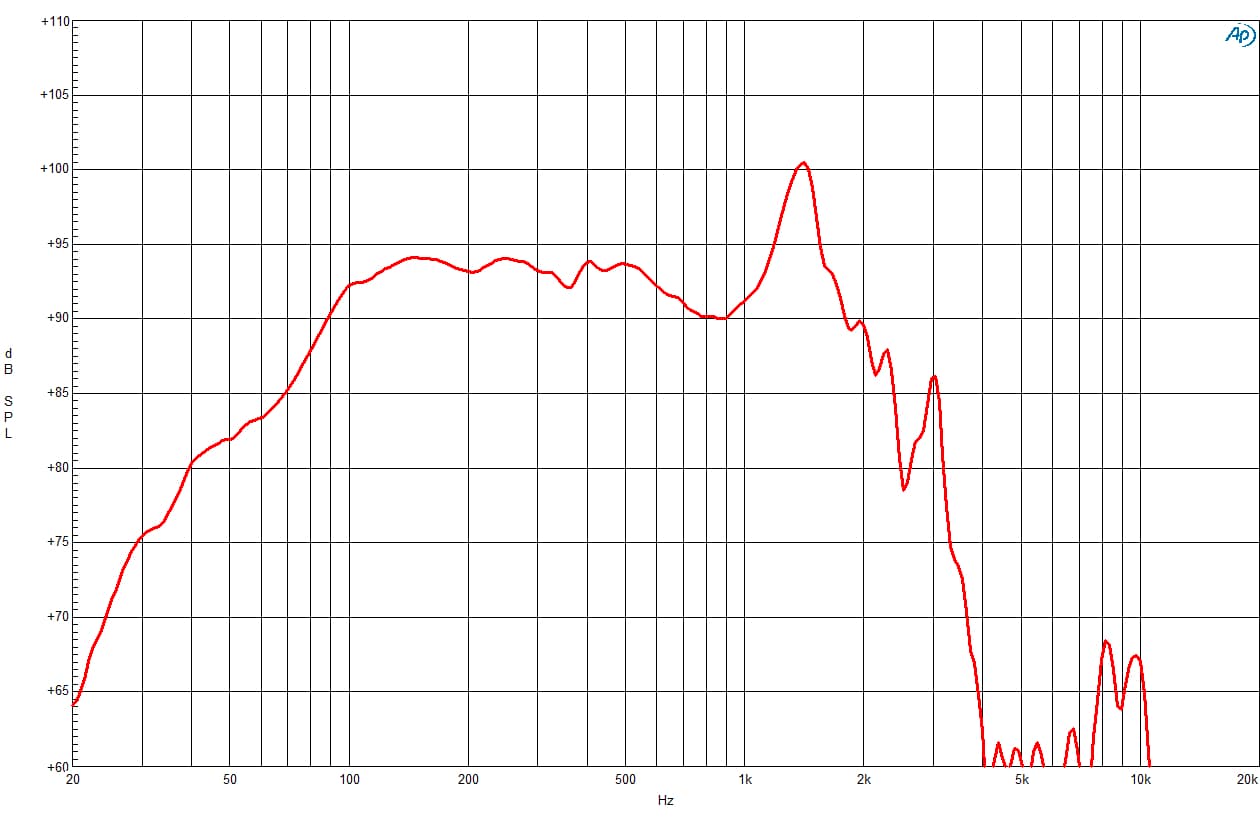

Frequency response
240 plotted pointsSource file SHA-256 11d682d6a1d1…Medium confidence4,538 selected pixels of 5,468 - Trace datasheet-response-trace-poc/v2
free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 11d682d6a1d1…Medium confidence3,742 selected pixels of 3,742
Published graphs
B&C 18TBX100 is an 18-inch 4 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 30 Hz, Qts 0.31, Vas 256 L, Xmax 9 mm, sensitivity 95.2 dB, plus 1089 cm³ Vd and 91 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £235.51.
The published T/S values agree with each other
Thiele/Small
- Fs
- 30Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 7
- Vas
- 256L
- Re
- 3.7Ω
- Le
- 1.73mH
Motor and cone
- BL
- 22T·m
- Sd
- 1210cm²
- Mms
- 230g
- Xmax
- 9mm
- Vd †
- 1089cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.2dB
- Manufacturer sensitivity
- 94dB
- Power
- 1200W
- Nominal power
- 1200W
- Impedance
- 4Ω
- Min. impedance
- 4.4Ω
- Range
- 35–1000Hz
- EBP †
- 91 · Sealed or vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 209mm
- Weight
- 12.7kg
Sensitivity shows 95.2 dB, calculated from the T/S values. B&C publishes 94.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 22T·m
- Fs
- 30Hz
- Le
- 1.73mH
- Re
- 3.7Ω
- Sd
- 1210cm²
- Mms
- 230g
- Qes
- 0.33
- Qms
- 7
- Qts
- 0.31
- SPL
- 95.2dB
- Vas
- 256L
- Xmax
- 9mm
- Power
- 1200W
- Impedance
- 4Ω
- Flux density
- 1.10T
- Sensitivity
- 94dB
- Low limit
- 35Hz
- Nominal power
- 1200W
- Calculated sensitivity †
- 95.2dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 94dB
- Min. impedance
- 4.4Ω
- Voice coil
- 100mm
- Weight
- 12.7kg
- Diameter
- 460mm
- Depth
- 209mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Bl
- 22 Tm
- Fs
- 30 Hz
- Le
- 1.73 mH
- Re
- 3.7 Ω
- Sd
- 1210 cm² (187.6 in²)
- Ebp
- 91 Hz
- Mms
- 230 g
- Qes
- 0.33
- Qms
- 7
- Qts
- 0.31
- Vas
- 256 dm³ (9.04 ft³)
- Η0
- 1.96 %
- Cone
- RCK18TBX1004
- Xmax
- 9 mm
- Xvar
- 11 mm
- Depth
- 209 mm (8.2 in)
- Spider
- Double Silicone
- Cone shape
- Radial
- Net weight
- 12.7 kg (28 lb)
- Pole design
- T-Pole
- Sensitivity
- 94 dB
- Flux density
- 1.1 T
- Shipping box
- 500x495x275 mm (19.69x19.49x10.83 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 35 Hz - 1000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 14.3 kg (31.53 lb)
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18 in)
- Winding material
- Copper
- Minimum impedance
- 4.4 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 12 mm (0.5 in)
- Recommended tuning
- 34 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 440 mm (17.3 in)
- Recommended enclosure
- 200 dm³ (7.06 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 422 mm (16.6 in)
- Nominal power handling
- 1200 W
- Continuous power handling
- 2400 W
- Flange and gasket thickness
- 16 mm (0.63 in)
- Air volume occupied by driver
- 10.5 dm³ (0.37 ft³)
02
Designs
Cabinets for the 18TBX100: a design and a suggested box from B&C, and plans builders have published.
All 18TBX100 designsHow we find designsB&C’s design
From the maker, with plans to download
B&C’s suggested box
From B&C’s 18TBX100 page
- Net volume
- 200L
- Tuning
- 34Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
