18-inch LF driver · 800 W
Fane COLOSSUS 18-800N 8Ω
8 Ω · 36–2000 Hz
No current price
- Fs
- 38Hz
- Xmax
- 8mm
- SPL
- 98dB
- Pe
- 800W
- BL
- 24T·m
- Vd
- 906cm³
- Qts
- 0.31
- Vas
- 217L

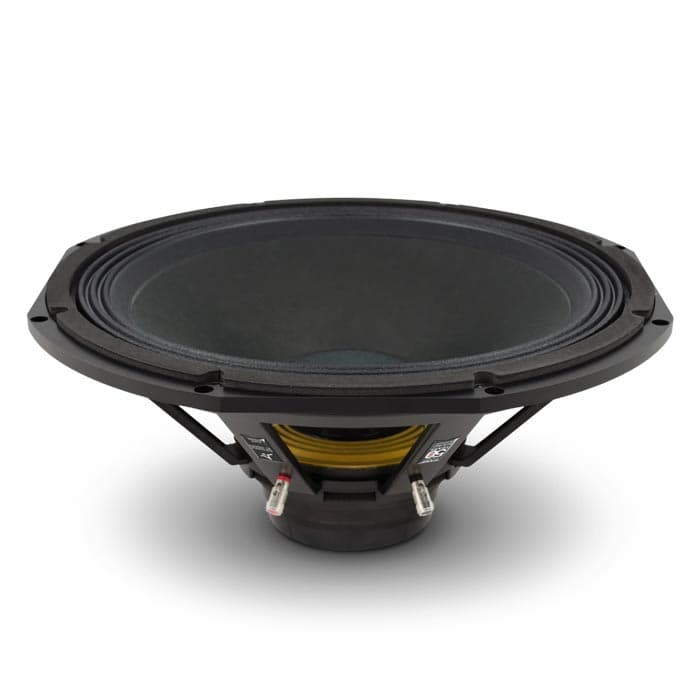

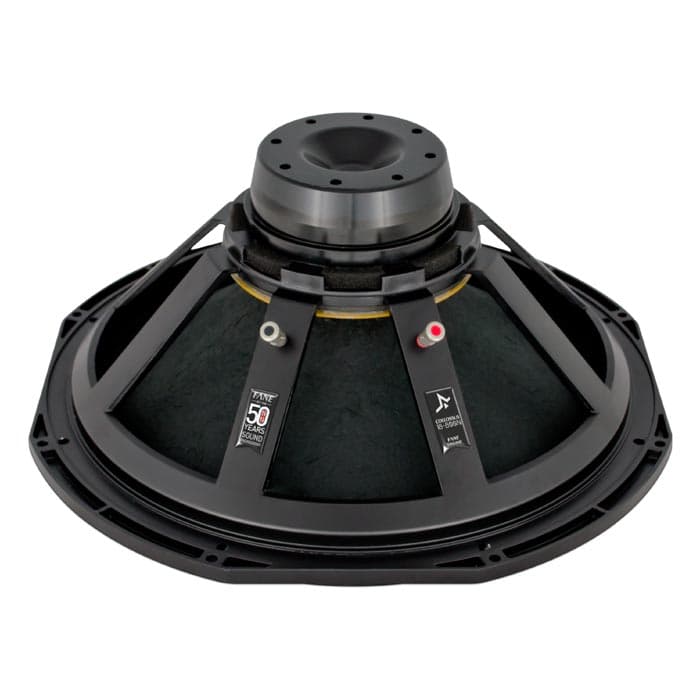

Fane COLOSSUS 18-800N is an 18-inch 8 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.31, Vas 217 L, Xmax 8 mm, sensitivity 97.7 dB, plus 906 cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 5.3
- Vas
- 217L
- Re
- 5.2Ω
- Le
- 1.96mH
Motor and cone
- BL
- 24T·m
- Sd
- 1133cm²
- Mms
- 148g
- Xmax
- 8mm
- Vd †
- 906cm³
Power and response
- Sensitivity †
- 97.7dB
- Manufacturer sensitivity
- 101dB
- Power
- 800W
- Impedance
- 8Ω
- Range
- 36–2000Hz
- EBP †
- 117 · Leans vented
Size and mounting
- Diameter
- 485mm
- Depth
- 198mm
- Weight
- 7.5kg
Other published values
- Cms
- 0.12mm/N
- Power Peak
- 3200
- Power Program
- 1600
Sensitivity shows 97.7 dB, calculated from the T/S values. Fane publishes 101.0 dB, 3.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 18″
- BL
- 24T·m
- Fs
- 38Hz
- Le
- 1.96mH
- Re
- 5.2Ω
- Sd
- 1133cm²
- Cms
- 0.12mm/N
- Mms
- 148g
- Qes
- 0.33
- Qms
- 5.3
- Qts
- 0.31
- SPL
- 97.7dB
- Vas
- 217L
- Xmax
- 8mm
- Power
- 800W
- Impedance
- 8Ω
- Power Peak
- 3200
- Sensitivity
- 101dB
- Low limit
- 36Hz
- Power Program
- 1600
- Calculated sensitivity †
- 97.7dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 101dB
- Weight
- 7.5kg
- Diameter
- 485mm
- Depth
- 198mm
02
Compare
Same-size drivers, compared with the COLOSSUS 18-800N. Clear differences are green when better and red when worse.
This driverCOLOSSUS 18-800N
Best price
–
Fs
38 Hz
Qts
0.31
Vas
217 L
BL
24 T·m
Xmax
8 mm
Sensitivity
97.7 dB
Power
800 W
B&C18TBX100
£186.26Fs34 Hz −11%, better
Qts0.35 +14%, worse
Vas212 L –
BL25.5 T·m +6%
Xmax9 mm +13%, better
Sensitivity95.6 dB −2.1, worse
CelestionFTR18-4080FD
£221.10Fs25 Hz −34%, better
Qts0.29 −7%
Vas408.7 L +88%, worse
BL22.8 T·m −5%
Xmax8.5 mm +6%
Sensitivity95.4 dB −2.3, worse
B&C18PZW100
£222.78Fs37 Hz –
Qts0.36 +18%, worse
Vas186 L −14%, better
BL25.5 T·m +6%
Xmax8 mm –
Sensitivity96 dB −1.7
RCFL18P300
£225.00Fs33 Hz −13%, better
Qts0.33 +8%
Vas226 L +4%
BL23.5 T·m –
Xmax8 mm –
Sensitivity95.8 dB −1.9
B&C18RBX100
£226.58Fs40 Hz +5%
Qts0.34 +11%, worse
Vas220 L –
BL25.1 T·m +5%
Xmax10 mm +25%, better
Sensitivity98 dB –
B&C18PZB100
£231.22Fs38 Hz –
Qts0.28 −8%
Vas164 L −24%, better
BL25 T·m +4%
Xmax8 mm –
Sensitivity96.9 dB −0.8
Beyma18P1000FEV2S
£249.00Fs33 Hz −13%, better
Qts0.32 +5%
Vas230 L +6%
BL26.8 T·m +12%, better
Xmax8 mm –
Sensitivity96 dB −1.7
RCFLF18G401
£252.42Fs33 Hz −13%, better
Qts0.29 −5%
Vas268 L +24%, worse
BL24.6 T·m –
Xmax9 mm +13%, better
Sensitivity97.1 dB −0.6
FaitalPRO18HP1022
£268.35Fs35 Hz −8%
Qts0.30 –
Vas204.9 L −6%
BL28 T·m +17%, better
Xmax9.5 mm +19%, better
Sensitivity96.6 dB −1.1
Eighteen Sound18LW2400
£272.63Fs35 Hz −8%
Qts0.31 –
Vas230 L +6%
BL25.6 T·m +7%
Xmax9.5 mm +19%, better
Sensitivity96.9 dB −0.8
Eighteen Sound18LW1400
£276.79Fs31 Hz −18%, better
Qts0.29 −5%
Vas297 L +37%, worse
BL24.7 T·m –
Xmax9 mm +13%, better
Sensitivity96.6 dB −1.1
FaitalPRO18FX600
£277.64Fs32 Hz −16%, better
Qts0.30 –
Vas257.3 L +19%, worse
BL24.5 T·m –
Xmax11.3 mm +41%, better
Sensitivity96.4 dB −1.3
Eighteen Sound18LW2420
£279.00Fs32 Hz −16%, better
Qts0.33 +8%
Vas252 L +16%, worse
BL25.3 T·m +5%
Xmax10 mm +25%, better
Sensitivity95.8 dB −1.9
FaneCOLOSSUS 18SB
£284.00Fs36 Hz −5%
Qts0.35 +13%, worse
Vas199 L −8%
BL24 T·m –
Xmax8.3 mm +3%
Sensitivity96.1 dB −1.6
Eighteen Sound18LW1251
£294.09Fs35 Hz −8%
Qts0.27 −12%, better
Vas268 L +24%, worse
BL23.6 T·m –
Xmax9 mm +13%, better
Sensitivity98.2 dB +0.5
Dayton Audio18SW1200N-8
£303.76Fs32 Hz −16%, better
Qts0.33 +8%
Vas253.6 L +17%, worse
BL27.6 T·m +15%, better
Xmax9.1 mm +14%, better
Sensitivity95.8 dB −1.9
BMS18S430V2
£316.72Fs31 Hz −18%, better
Qts0.34 +11%, worse
Vas262 L +21%, worse
BL23.5 T·m –
Xmax8 mm –
Sensitivity95.4 dB −2.3, worse
RCFLF18N405
£325.54Fs30 Hz −21%, better
Qts0.32 +5%
Vas227 L +5%
BL26.5 T·m +10%, better
Xmax14 mm +75%, better
Sensitivity94.6 dB −3.1, worse
Sica18 K 4 PL
£451.43Fs37 Hz −3%
Qts0.32 +5%
Vas201 L −7%
BL26.8 T·m +12%, better
Xmax6.5 mm −19%, worse
Sensitivity96.6 dB −1.1
Eighteen Sound18NLW9000
£550.00Fs34 Hz −11%, better
Qts0.31 –
Vas206 L −5%
BL28 T·m +17%, better
Xmax14 mm +75%, better
Sensitivity96.1 dB −1.6
Oberton18XB700
No current priceFs36 Hz −5%
Qts0.30 –
Vas183.2 L −16%, better
BL26.1 T·m +9%
Xmax9 mm +13%, better
Sensitivity96.4 dB −1.3
Oberton18FBR700
No current priceFs36 Hz −6%
Qts0.27 −11%, better
Vas231.3 L +7%
BL25.2 T·m +5%
Xmax8 mm –
Sensitivity97.8 dB –
FaneCOLOSSUS 18XB
No current priceFs33 Hz −13%, better
Qts0.34 +10%, worse
Vas236 L +9%
BL25.9 T·m +8%
Xmax7.5 mm −6%
Sensitivity95.8 dB −1.9
Oberton18B500
No current priceFs35 Hz −8%
Qts0.28 −10%, better
Vas243.9 L +12%, worse
BL24.1 T·m –
Xmax8.8 mm +9%
Sensitivity97.7 dB –
RCFLF18G908
No current priceFs33 Hz −13%, better
Qts0.29 −5%
Vas268 L +24%, worse
BL24.6 T·m –
Xmax9 mm +13%, better
Sensitivity97.1 dB −0.6
Oberton18NXB700
No current priceFs36 Hz −5%
Qts0.31 –
Vas155.5 L −28%, better
BL27.8 T·m +16%, better
Xmax9 mm +13%, better
Sensitivity95.6 dB −2.1, worse
Oberton18B450
No current priceFs34 Hz −10%
Qts0.34 +12%, worse
Vas241.6 L +11%, worse
BL22.1 T·m −8%
Xmax7.3 mm −9%
Sensitivity96.4 dB −1.3
CelestionFTR18-4080F
No current priceFs33 Hz −14%, better
Qts0.31 –
Vas281.3 L +30%, worse
BL22.5 T·m −6%
Xmax6 mm −25%, worse
Sensitivity96.6 dB −1.1
Oberton18XB1301DS
No current priceFs36 Hz −6%
Qts0.30 –
Vas172.9 L −20%, better
BL26.9 T·m +12%, better
Xmax12 mm +50%, better
Sensitivity96 dB −1.7
