Overview
LF Driver
Eighteen Sound

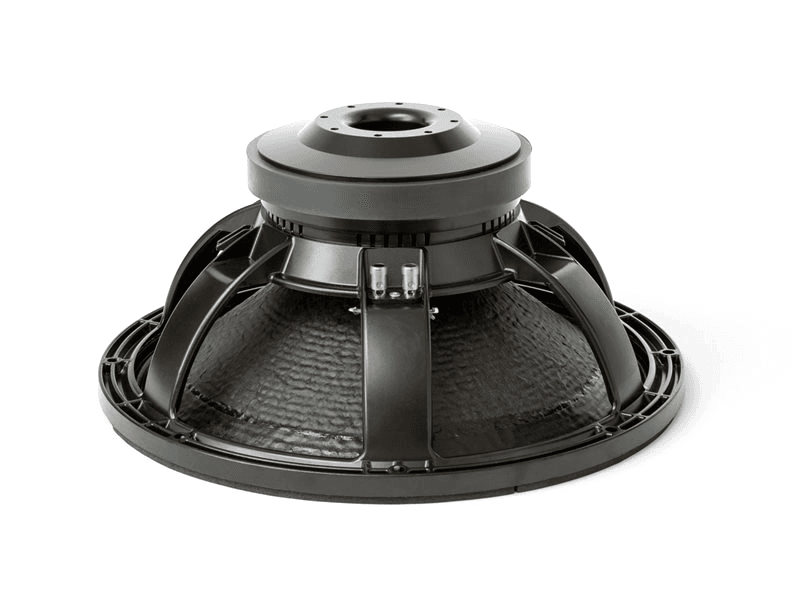

Eighteen Sound 18LW1400
Eighteen Sound 18LW1400 is a 18" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 31Hz, Qts 0.29, Vas 297L, Xmax 9mm, sensitivity 96.6dB, plus 1103cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £270.47.
Size
18"
Impedance
8Ω
RMS Power
1000W
Sensitivity
96.6dB
98.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
100
Either alignment
Vd
1103cm³

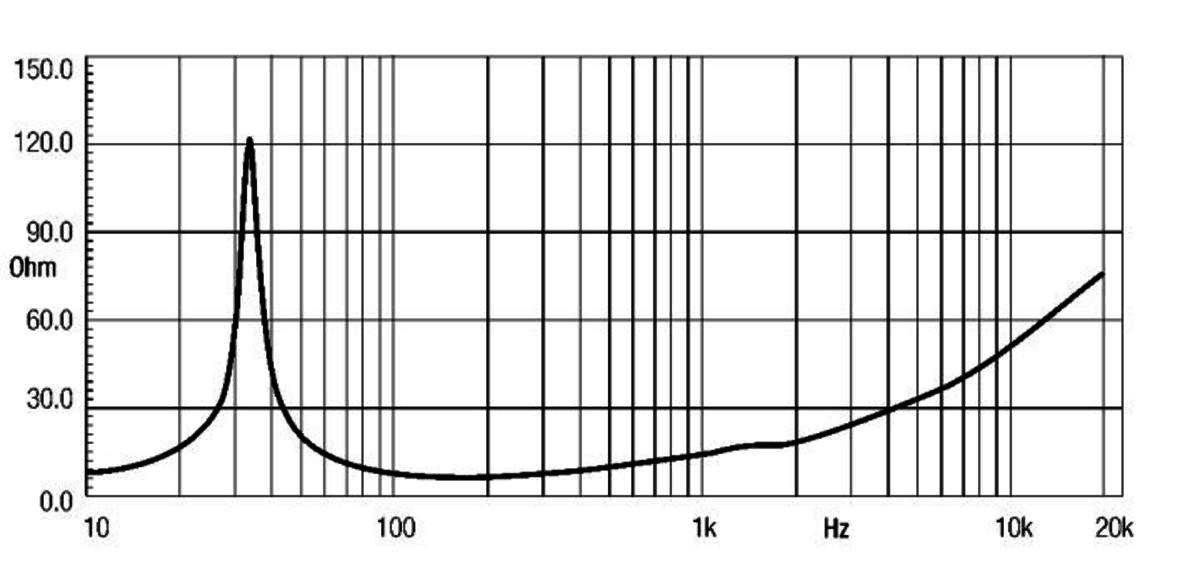

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

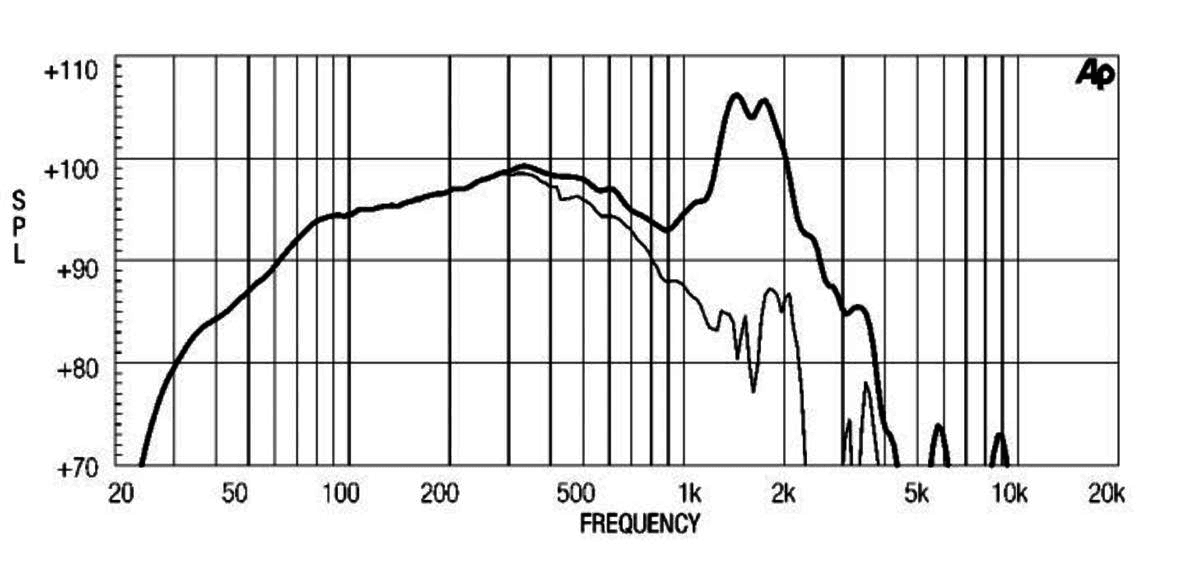

frequency response
Frequency response
240 plotted pointsMedium confidence1,811 selected pixels of 2,062
T/S Parameters
Valid
Fs31Hz
Qts0.29
Qes0.31
Qms7.2
Vas297.0L
Re5.0Ω
Le2.30mH
BL24.7Tm
Sd1225cm²
Mms190g
Xmax9.0mm
SPL97dB
Power1000W
Power Nominal1000W
Impedance8Ω
F Low28Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£270.47
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.3kg
Diameter462.0mm
Overall Depth215.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter438.0mm
