- Net volume
- 160L
- Tuning
- 39Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
18-inch LF driver · 18PZB series · 100 mm voice coil · 700 W
B&C 18PZB100 8Ω
40–2000 Hz
- Fs
- 30Hz
- Xmax
- 8mm
- SPL
- 97dB
- Pe
- 700W
- BL
- 26T·m
- Vd
- 907cm³
- Qts
- 0.24
- Vas
- 297L

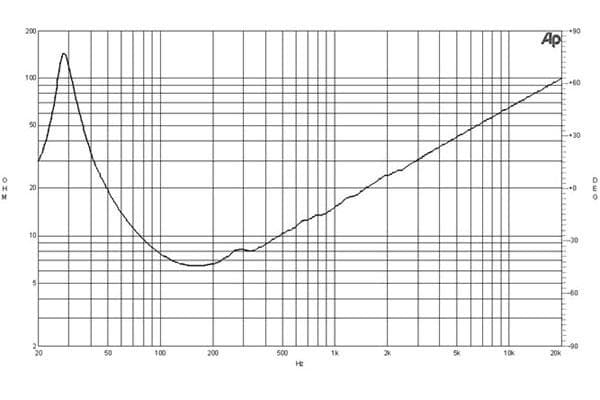

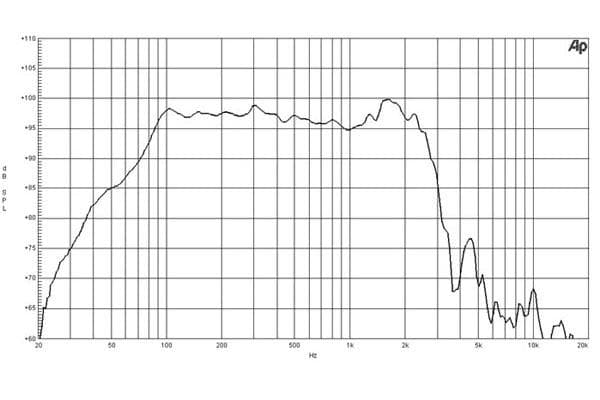

Published graphs
B&C 18PZB100 is an 18-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 30 Hz, Qts 0.24, Vas 297 L, Xmax 8 mm, sensitivity 97.1 dB, plus 907 cm³ Vd and 120 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £232.58.
The published T/S values agree with each other
Thiele/Small
- Fs
- 30Hz
- Qts
- 0.24
- Qes
- 0.25
- Qms
- 8.8
- Vas
- 297L
- Re
- 5.3Ω
- Le
- 2.10mH
Motor and cone
- BL
- 26T·m
- Sd
- 1134cm²
- Mms
- 170g
- Xmax
- 8mm
- Vd †
- 907cm³
- Voice coil
- 100mm
- Flux density
- 1.15T
Power and response
- Sensitivity †
- 97.1dB
- Manufacturer sensitivity
- 97dB
- Power
- 700W
- Nominal power
- 700W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 40–2000Hz
- EBP †
- 120 · Leans vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 202mm
- Weight
- 12.2kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 26T·m
- Fs
- 30Hz
- Le
- 2.10mH
- Re
- 5.3Ω
- Sd
- 1134cm²
- Mms
- 170g
- Qes
- 0.25
- Qms
- 8.8
- Qts
- 0.24
- SPL
- 97.1dB
- Vas
- 297L
- Xmax
- 8mm
- Power
- 700W
- Impedance
- 8Ω
- Flux density
- 1.15T
- Sensitivity
- 97dB
- Low limit
- 40Hz
- Nominal power
- 700W
- Calculated sensitivity †
- 97.1dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 97dB
- Min. impedance
- 6.5Ω
- Voice coil
- 100mm
- Weight
- 12.2kg
- Diameter
- 460mm
- Depth
- 202mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Bl
- 26 Tm
- Fs
- 30 Hz
- Le
- 2.1 mH
- Re
- 5.3 Ω
- Sd
- 1134 cm² (175.8 in²)
- Ebp
- 120 Hz
- Mms
- 170 g
- Qes
- 0.25
- Qms
- 8.8
- Qts
- 0.24
- Vas
- 297 dm³ (10.5 ft³)
- Η0
- 3.1 %
- Cone
- RCK18PZB1008
- Xmax
- 8 mm
- Xvar
- 8 mm
- Depth
- 202 mm (7.95 in)
- Spider
- Double Silicone
- Cone shape
- Exponential
- Net weight
- 12.2 kg (26.9 lb)
- Pole design
- Straight Pole
- Sensitivity
- 97 dB
- Flux density
- 1.15 T
- Shipping box
- 500x495x275 mm (19.69x19.49x10.83 in)
- Winding depth
- 21 mm (0.83 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 2000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 13.8 kg (30.42 lb)
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18.11 in)
- Winding material
- Copper
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 39 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 440 mm (17.3 in)
- Recommended enclosure
- 160 dm³ (5.65 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 422 mm (16.6 in)
- Nominal power handling
- 700 W
- Continuous power handling
- 1400 W
- Flange and gasket thickness
- 16 mm (0.63 in)
- Air volume occupied by driver
- 9.5 dm³ (0.33 ft³)
