Overview
LF Driver18NSW series
Oberton
Oberton 18NSW700
Oberton 18NSW700 is a 18" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 30Hz, Qts 0.24, Vas 309.0L, Xmax 14mm, sensitivity 97.5dB, plus 1621cm³ Vd and 122 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
700W

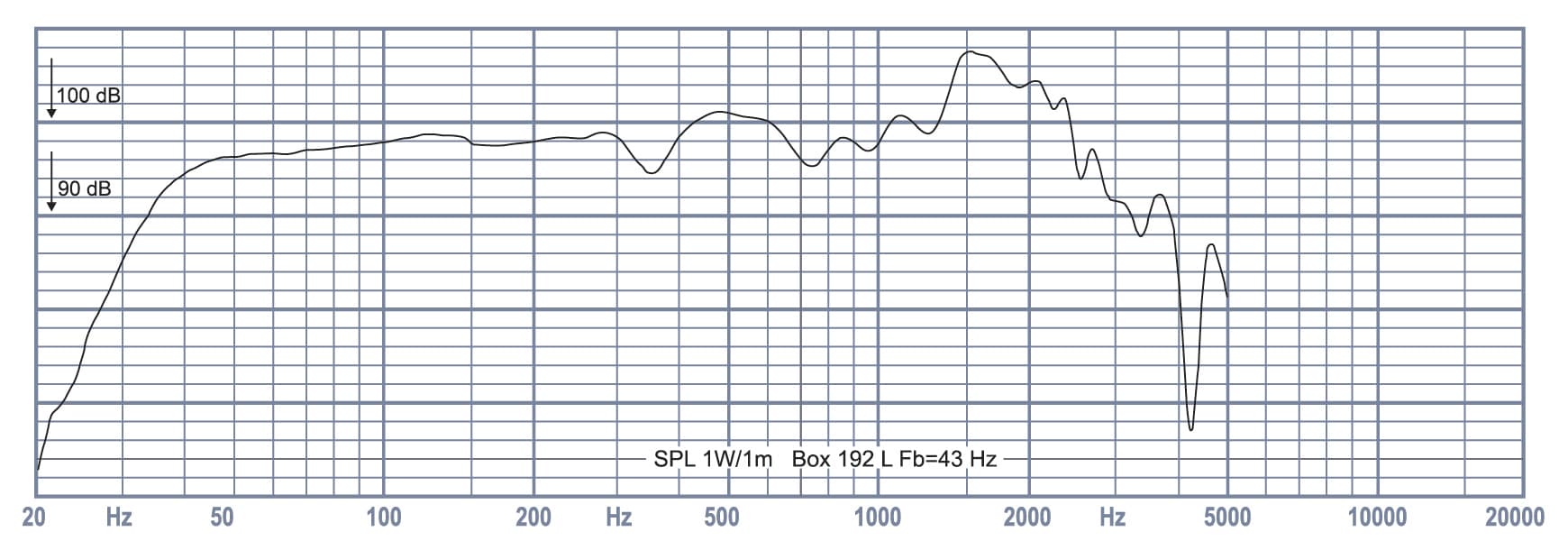

Sensitivity
97.5dB
40.0dBmanufacturer; using T/S-derived value (57.5dB delta).
EBP
122
Vented alignment
Vd
1621cm³
T/S Parameters
Valid
Fs30Hz
Qts0.24
Qes0.25
Qms9.2
Vas309.0L
Re6.1Ω
Le0.96mH
BL26.6Tm
Sd1158cm²
Mms152g
Xmax14.0mm
SPL98dB
Power700W
Impedance8Ω
Min Impedance7.1Ω
F Low30Hz
F High1000Hz
Voice Coil77mm
Flux Density1.35T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

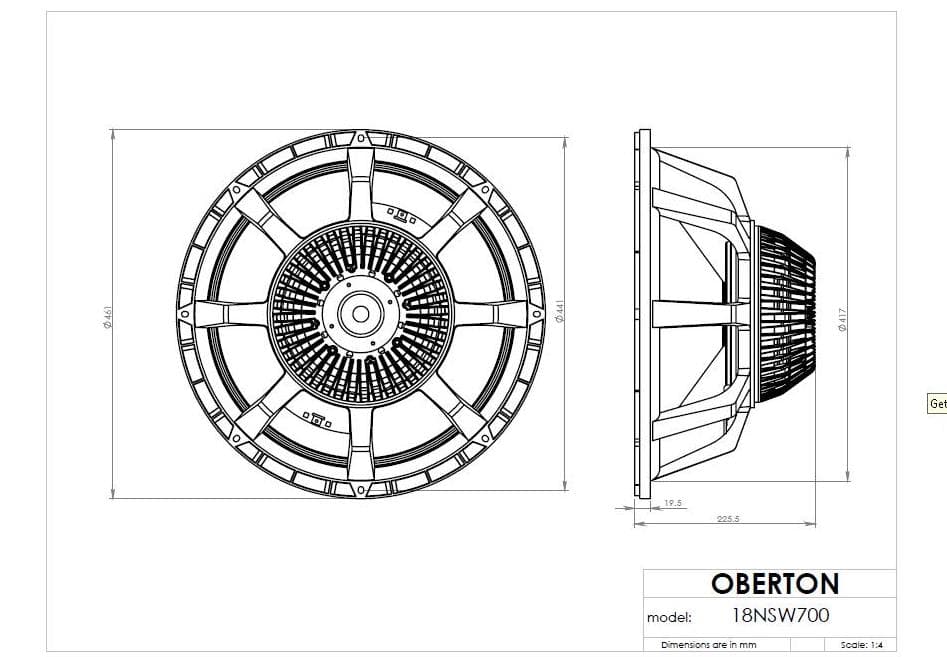

Dimensions & Physical
Weight10.3kg
Diameter461.0mm
Overall Depth225.0mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
