Eighteen Sound design
Manifolded 2x18" band-pass IPAL™ powered subwoofer
- Drivers
- 2 × 18ID
18-inch LF driver · 1,800 W
Eighteen Sound 18ID 2Ω
2 Ω · 30–2500 Hz
No current price
- Fs
- 40Hz
- Xmax
- 15.5mm
- SPL
- 94dB
- Pe
- 1800W
- BL
- 24T·m
- Vd
- 1899cm³
- Qts
- 0.26
- Vas
- 67L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

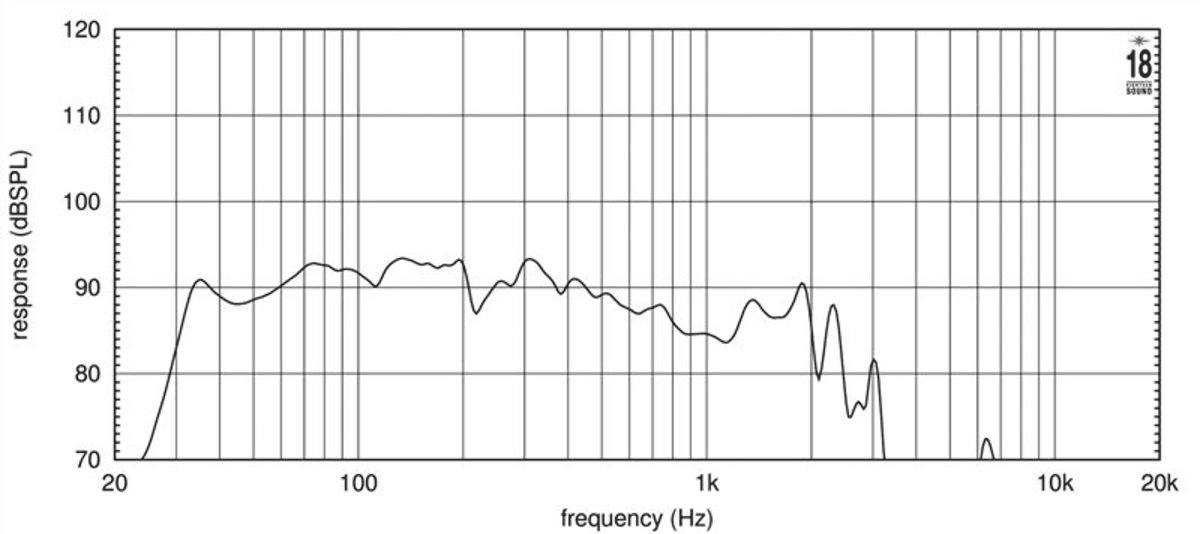

Frequency response
116 plotted pointsMedium confidence627 selected pixels of 1,176 - Trace datasheet-response-trace-poc/v1
impedance

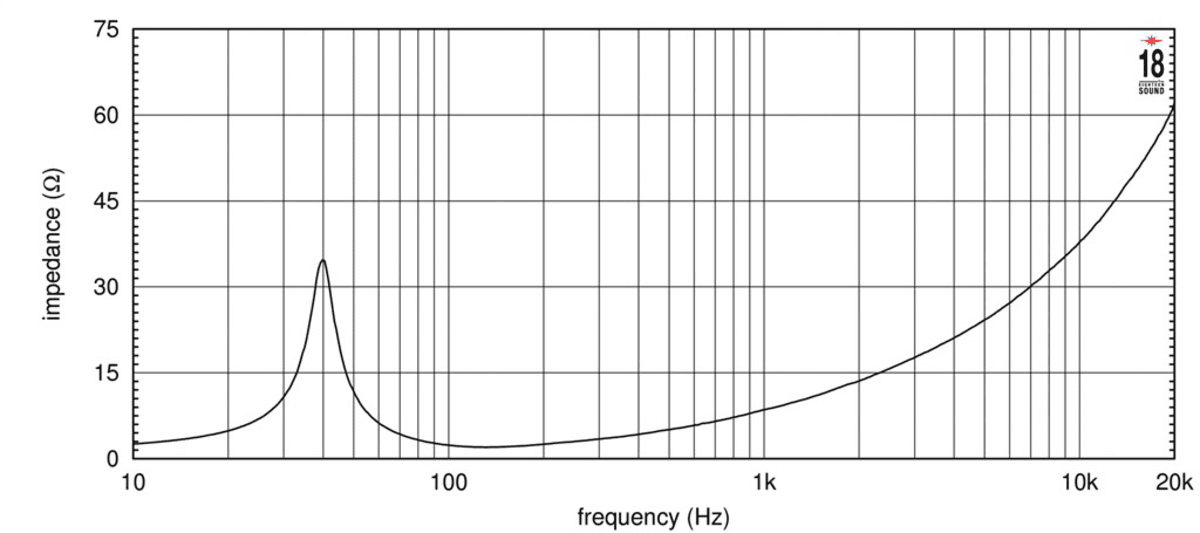

Impedance response
240 plotted pointsMedium confidence1,021 selected pixels of 1,333
Published graphs

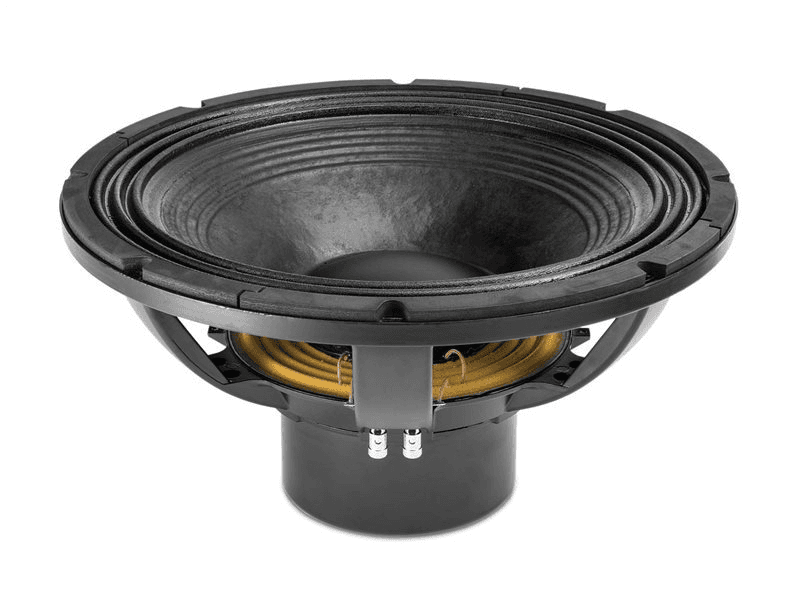

Eighteen Sound 18ID is an 18-inch 2 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.26, Vas 67 L, Xmax 15.5 mm, sensitivity 94 dB, plus 1899 cm³ Vd and 148 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 5.5
- Vas
- 67L
- Re
- 1.5Ω
- Le
- 1.22mH
Motor and cone
- BL
- 24T·m
- Sd
- 1225cm²
- Mms
- 420g
- Xmax
- 15.5mm
- Vd †
- 1899cm³
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 95dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 2Ω
- Range
- 30–2500Hz
- EBP †
- 148 · Leans vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 440mm
- Depth
- 236mm
- Weight
- 12.5kg
Other published values
- Power Program
- 3600
Sensitivity shows 94.0 dB, calculated from the T/S values. Eighteen Sound publishes 95.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 24T·m
- Fs
- 40Hz
- Le
- 1.22mH
- Re
- 1.5Ω
- Sd
- 1225cm²
- Mms
- 420g
- Qes
- 0.27
- Qms
- 5.5
- Qts
- 0.26
- SPL
- 94dB
- Vas
- 67L
- Xmax
- 15.5mm
- Power
- 1800W
- Impedance
- 2Ω
- Sensitivity
- 95dB
- Low limit
- 30Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 94dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 12.5kg
- Diameter
- 462mm
- Depth
- 236mm
- Cutout
- 416mm
- Bolt circle
- 440mm
02
Designs
Cabinets for the 18ID: a design and a suggested box from Eighteen Sound.
All 18ID designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 18ID page
- Net volume
- 200L
- Tuning
- 40Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18ID. Clear differences are green when better and red when worse.
This driver18ID
Best price
–
Fs
40 Hz
Qts
0.26
Vas
67 L
BL
24 T·m
Xmax
15.5 mm
Sensitivity
94 dB
Power
1800 W
B&C18PS76
£163.07Fs39 Hz –
Qts0.27 +4%
Vas207 L +209%, worse
BL25.8 T·m +8%
Xmax7 mm −55%, worse
Sensitivity98.3 dB +4.3, better
FaitalPRO18FH510
£216.88Fs30 Hz −25%, better
Qts0.26 –
Vas391.4 L +484%, worse
BL18.3 T·m −24%, worse
Xmax9.4 mm −39%, worse
Sensitivity98 dB +4, better
B&C18NW100
£234.88Fs30 Hz −25%, better
Qts0.27 +4%
Vas203.5 L +204%, worse
BL24.7 T·m –
Xmax9 mm −42%, worse
Sensitivity95 dB +1
B&C18PZB100
£238.00Fs38 Hz −5%
Qts0.28 +8%
Vas164 L +145%, worse
BL25 T·m +4%
Xmax8 mm −48%, worse
Sensitivity96.9 dB +2.9, better
RCFL18P400
£289.00Fs29 Hz −28%, better
Qts0.28 +8%
Vas340 L +407%, worse
BL24.6 T·m –
Xmax9 mm −42%, worse
Sensitivity96.6 dB +2.6, better
CIARENDH18-4S
£291.62Fs31 Hz −23%, better
Qts0.25 −4%
Vas240 L +258%, worse
BL22.2 T·m −8%
Xmax11.5 mm −26%, worse
Sensitivity96.6 dB +2.6, better
Eighteen Sound18LW2600
£297.25Fs30 Hz −25%, better
Qts0.28 +8%
Vas186 L +178%, worse
BL23.4 T·m –
Xmax14 mm −10%
Sensitivity94.4 dB –
Eighteen Sound18NLW9400
£305.62Fs33 Hz −18%, better
Qts0.26 –
Vas268 L +300%, worse
BL26 T·m +8%
Xmax9.5 mm −39%, worse
Sensitivity97.4 dB +3.4, better
REDCATT18NPW
£347.48Fs36 Hz −10%, better
Qts0.28 +7%
Vas211.5 L +216%, worse
BL27.3 T·m +14%, better
Xmax4.8 mm −69%, worse
Sensitivity97.5 dB +3.5, better
RCFLF18N401
£359.21Fs32 Hz −20%, better
Qts0.26 –
Vas257 L +284%, worse
BL27.8 T·m +16%, better
Xmax9 mm −42%, worse
Sensitivity97 dB +3, better
RCFLF18X451
£360.00Fs30 Hz −25%, better
Qts0.28 +8%
Vas220 L +228%, worse
BL30.5 T·m +27%, better
Xmax14 mm −10%
Sensitivity95.1 dB +1.1
Eighteen Sound18NLW4100
£371.77Fs29 Hz −28%, better
Qts0.27 +4%
Vas207 L +209%, worse
BL22.8 T·m −5%
Xmax15 mm −3%
Sensitivity94.6 dB +0.6
Oberton18XB1600V2
£388.58Fs33 Hz −19%, better
Qts0.28 +7%
Vas267 L +299%, worse
BL29.6 T·m +23%, better
Xmax12.5 mm −19%, worse
Sensitivity97.1 dB +3.1, better
RCFLN19S400
£416.98Fs32 Hz −20%, better
Qts0.26 –
Vas204 L +204%, worse
BL32 T·m +33%, better
Xmax17 mm +10%
Sensitivity96 dB +2, better
FaitalPRO18XL2000
£420.00Fs28 Hz −30%, better
Qts0.27 +4%
Vas232.1 L +246%, worse
BL30.8 T·m +28%, better
Xmax16.3 mm +5%
Sensitivity94.6 dB +0.6
B&C18SW115
£426.19Fs34 Hz −15%, better
Qts0.30 +15%, worse
Vas149.1 L +123%, worse
BL26 T·m +8%
Xmax14 mm −10%
Sensitivity94.8 dB +0.8
B&C18DS100
£456.91Fs32 Hz −20%, better
Qts0.24 −8%
Vas157 L +134%, worse
BL24.3 T·m –
Xmax14 mm −10%
Sensitivity95.3 dB +1.3
Eighteen Sound18NLW4500
£468.89Fs37 Hz −8%
Qts0.31 +19%, worse
Vas127 L +90%, worse
BL26.7 T·m +11%, better
Xmax14.8 mm −5%
Sensitivity95.1 dB +1.1
FaitalPRO18XL1700
£469.00Fs28 Hz −30%, better
Qts0.28 +8%
Vas227 L +239%, worse
BL30.5 T·m +27%, better
Xmax16.2 mm +4%
Sensitivity94.4 dB –
Eighteen Sound18NLW9601
£543.41Fs38 Hz −5%
Qts0.28 +8%
Vas111 L +66%, worse
BL25 T·m +4%
Xmax14 mm −10%
Sensitivity95.3 dB +1.3
REDCATT181XR
£544.21Fs30 Hz −25%, better
Qts0.23 −12%, better
Vas195 L +191%, worse
BL28.3 T·m +18%, better
Xmax17 mm +10%
Sensitivity95.4 dB +1.4
Eighteen Sound18NTLW5000
£550.00Fs32 Hz −20%, better
Qts0.30 +15%, worse
Vas165 L +146%, worse
BL25 T·m +4%
Xmax17.5 mm +13%, better
Sensitivity94.4 dB –
Oberton18NSW700
No current priceFs30 Hz −24%, better
Qts0.24 −7%
Vas309.0 L +361%, worse
BL26.6 T·m +11%, better
Xmax14 mm −10%
Sensitivity97.5 dB +3.5, better
Eighteen Sound18LW1251
No current priceFs35 Hz −13%, better
Qts0.27 +4%
Vas268 L +300%, worse
BL23.6 T·m –
Xmax9 mm −42%, worse
Sensitivity98.2 dB +4.2, better
Oberton18B500
No current priceFs35 Hz −13%, better
Qts0.28 +6%
Vas243.9 L +264%, worse
BL24.1 T·m –
Xmax8.8 mm −44%, worse
Sensitivity97.7 dB +3.7, better
Oberton18FBR700
No current priceFs36 Hz −11%, better
Qts0.27 +4%
Vas231.3 L +245%, worse
BL25.2 T·m +5%
Xmax8 mm −48%, worse
Sensitivity97.8 dB +3.8, better
Eighteen Sound18W2000
No current priceFs37 Hz −8%
Qts0.25 −4%
Vas230 L +243%, worse
BL27.1 T·m +13%, better
Xmax–
Sensitivity98.5 dB +4.5, better
Eighteen Sound18W2001
No current priceFs37 Hz −8%
Qts0.25 −4%
Vas230 L +243%, worse
BL27.1 T·m +13%, better
Xmax7 mm −55%, worse
Sensitivity98.5 dB +4.5, better

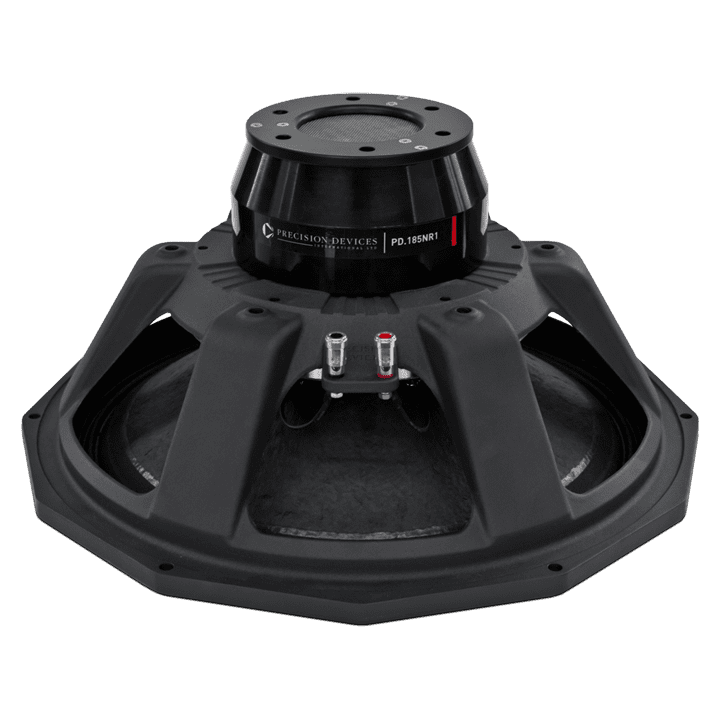

Precision DevicesPD.185NR1
No current priceFs34 Hz −15%, better
Qts0.27 +4%
Vas102 L +52%, worse
BL29.5 T·m +23%, better
Xmax11.8 mm −24%, worse
Sensitivity93.4 dB −0.6
Eighteen Sound18NLW9000
No current priceFs32 Hz −20%, better
Qts0.21 −19%, better
Vas247 L +269%, worse
BL25 T·m +4%
Xmax14 mm −10%
Sensitivity97.7 dB +3.7, better
