- Net volume
- 120L
- Tuning
- 33Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
18-inch LF driver · 1,500 W
Eighteen Sound 18NLW4100 4Ω
30–800 Hz
No price for delivery to the UK
- Fs
- 29Hz
- Xmax
- 15mm
- SPL
- 95dB
- Pe
- 1500W
- BL
- 22.8T·m
- Vd
- 1838cm³
- Qts
- 0.27
- Vas
- 207L
Published graphs

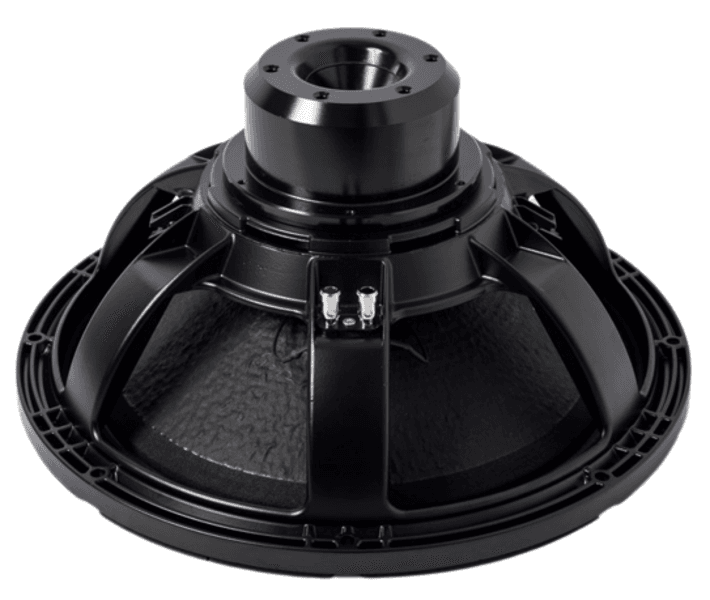

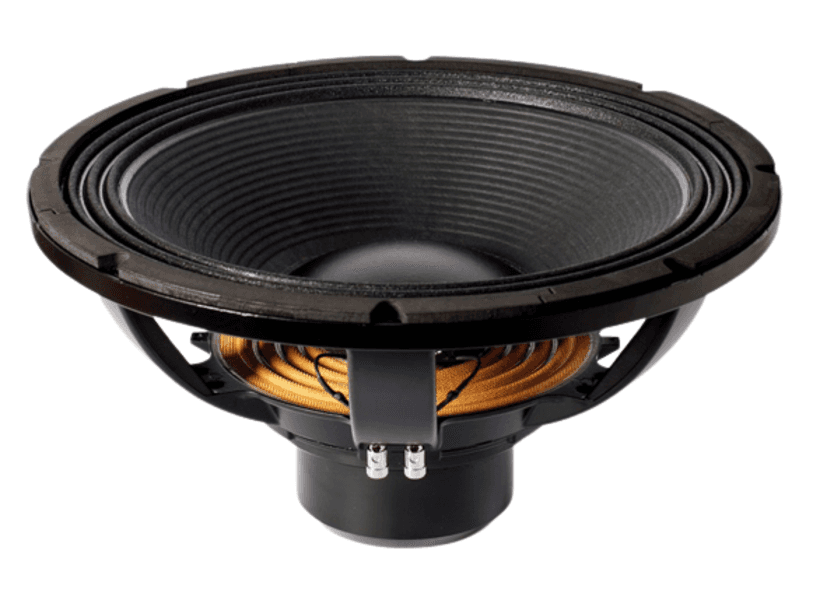

Eighteen Sound 18NLW4100 is an 18-inch 4 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.27, Vas 207 L, Xmax 15 mm, sensitivity 94.6 dB, plus 1838 cm³ Vd and 104 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £371.08.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 11.9
- Vas
- 207L
- Re
- 2.5Ω
- Le
- 1.55mH
Motor and cone
- BL
- 22.8T·m
- Sd
- 1225cm²
- Mms
- 314g
- Xmax
- 15mm
- Vd †
- 1838cm³
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 97dB
- Power
- 1500W
- Nominal power
- 1500W
- Impedance
- 4Ω
- Range
- 30–800Hz
- EBP †
- 104 · Leans vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 440mm
- Depth
- 232mm
- Weight
- 10kg
Other published values
- Power Program
- 3000
Sensitivity shows 94.6 dB, calculated from the T/S values. Eighteen Sound publishes 97.0 dB, 2.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 22.8T·m
- Fs
- 29Hz
- Le
- 1.55mH
- Re
- 2.5Ω
- Sd
- 1225cm²
- Mms
- 314g
- Qes
- 0.28
- Qms
- 11.9
- Qts
- 0.27
- SPL
- 94.6dB
- Vas
- 207L
- Xmax
- 15mm
- Power
- 1500W
- Impedance
- 4Ω
- Sensitivity
- 97dB
- Low limit
- 30Hz
- Nominal power
- 1500W
- Power Program
- 3000
- Calculated sensitivity †
- 94.6dB
- High limit
- 800Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 10kg
- Diameter
- 462mm
- Depth
- 232mm
- Cutout
- 416mm
- Bolt circle
- 440mm
02
Designs
What Eighteen Sound suggests for the 18NLW4100. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 18NLW4100 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18NLW4100. Clear differences are green when better and red when worse.
This driver18NLW4100
Best price
£371.08
Fs
29 Hz
Qts
0.27
Vas
207 L
BL
22.8 T·m
Xmax
15 mm
Sensitivity
94.6 dB
Power
1500 W
B&C18PS76
£162.77 · 56% less, betterFs39 Hz +34%, worse
Qts0.27 –
Vas207 L –
BL25.8 T·m +13%, better
Xmax7 mm −53%, worse
Sensitivity98.3 dB +3.7, better
B&C18TBW100
£227.52 · 39% less, betterFs33 Hz +14%, worse
Qts0.32 +19%, worse
Vas181.5 L −12%, better
BL22.8 T·m –
Xmax12 mm −20%, worse
Sensitivity94.9 dB –
B&C18NW100
£234.45 · 37% less, betterFs30 Hz +3%
Qts0.27 –
Vas203.5 L –
BL24.7 T·m +8%
Xmax9 mm −40%, worse
Sensitivity95 dB –
B&C18PZB100
£238.00 · 36% less, betterFs38 Hz +31%, worse
Qts0.28 +4%
Vas164 L −21%, better
BL25 T·m +10%
Xmax8 mm −47%, worse
Sensitivity96.9 dB +2.3, better
Beyma18PW1400FE
£273.68 · 26% less, betterFs32 Hz +10%, worse
Qts0.27 –
Vas228.9 L +11%, worse
BL29 T·m +27%, better
Xmax10 mm −33%, worse
Sensitivity96.3 dB +1.7
CIARENDH18-4S
£291.62 · 21% less, betterFs31 Hz +7%
Qts0.25 −7%
Vas240 L +16%, worse
BL22.2 T·m –
Xmax11.5 mm −23%, worse
Sensitivity96.6 dB +2, better

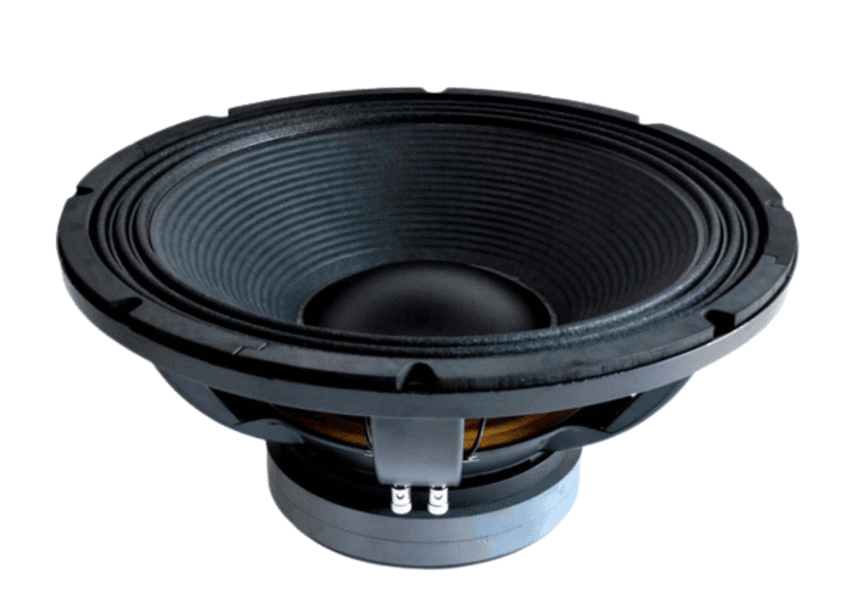

Eighteen Sound18LW2600
£296.70 · 20% less, betterFs30 Hz +3%
Qts0.28 +4%
Vas186 L −10%, better
BL23.4 T·m –
Xmax14 mm −7%
Sensitivity94.4 dB –
RCFLF18N405
£325.54 · 12% less, betterFs30 Hz +3%
Qts0.32 +19%, worse
Vas227 L +10%
BL26.5 T·m +16%, better
Xmax14 mm −7%
Sensitivity94.6 dB –
REDCATT18NPW
£346.84 · 7% less, betterFs36 Hz +24%, worse
Qts0.28 –
Vas211.5 L –
BL27.3 T·m +20%, better
Xmax4.8 mm −68%, worse
Sensitivity97.5 dB +2.9, better
FaitalPRO18HW1070
£350.19 · 6% less, betterFs32 Hz +10%, worse
Qts0.33 +22%, worse
Vas191.5 L −7%
BL21.6 T·m −5%
Xmax13 mm −13%, worse
Sensitivity94.7 dB –
RCFLF18X451
£360.00 · 3% lessFs30 Hz +3%
Qts0.28 +4%
Vas220 L +6%
BL30.5 T·m +34%, better
Xmax14 mm −7%
Sensitivity95.1 dB +0.5
Oberton18XB1600V2
£388.58 · 5% moreFs33 Hz +12%, worse
Qts0.28 –
Vas267 L +29%, worse
BL29.6 T·m +30%, better
Xmax12.5 mm −17%, worse
Sensitivity97.1 dB +2.5, better
FaitalPRO18XL1600
£399.95 · 8% more, worseFs32 Hz +10%, worse
Qts0.31 +15%, worse
Vas201.1 L –
BL21.7 T·m −5%
Xmax12.9 mm −14%, worse
Sensitivity95.2 dB +0.6
RCFLN19S400
£416.21 · 12% more, worseFs32 Hz +10%, worse
Qts0.26 −4%
Vas204 L –
BL32 T·m +40%, better
Xmax17 mm +13%, better
Sensitivity96 dB +1.4
FaitalPRO18XL2000
£420.00 · 13% more, worseFs28 Hz −3%
Qts0.27 –
Vas232.1 L +12%, worse
BL30.8 T·m +35%, better
Xmax16.3 mm +9%
Sensitivity94.6 dB –
B&C18SW115
£425.41 · 15% more, worseFs34 Hz +17%, worse
Qts0.30 +11%, worse
Vas149.1 L −28%, better
BL26 T·m +14%, better
Xmax14 mm −7%
Sensitivity94.8 dB –
B&C18DS100
£455.18 · 23% more, worseFs32 Hz +10%, worse
Qts0.24 −11%, better
Vas157 L −24%, better
BL24.3 T·m +7%
Xmax14 mm −7%
Sensitivity95.3 dB +0.7
FaitalPRO18XL1700
£468.00 · 26% more, worseFs28 Hz −3%
Qts0.28 +4%
Vas227 L +10%
BL30.5 T·m +34%, better
Xmax16.2 mm +8%
Sensitivity94.4 dB –
Eighteen Sound18NLW4500
£468.03 · 26% more, worseFs37 Hz +28%, worse
Qts0.31 +15%, worse
Vas127 L −39%, better
BL26.7 T·m +17%, better
Xmax14.8 mm –
Sensitivity95.1 dB +0.5
Eighteen Sound18NLW9601
£542.42 · 46% more, worseFs38 Hz +31%, worse
Qts0.28 +4%
Vas111 L −46%, better
BL25 T·m +10%
Xmax14 mm −7%
Sensitivity95.3 dB +0.7
Eighteen Sound18NTLW5000
£550.00 · 48% more, worseFs32 Hz +10%, worse
Qts0.30 +11%, worse
Vas165 L −20%, better
BL25 T·m +10%
Xmax17.5 mm +17%, better
Sensitivity94.4 dB –
Eighteen Sound18ID
No current priceFs40 Hz +38%, worse
Qts0.26 −4%
Vas67 L −68%, better
BL24 T·m +5%
Xmax15.5 mm +3%
Sensitivity94 dB −0.6
Oberton18FBR700
No current priceFs36 Hz +23%, worse
Qts0.27 –
Vas231.3 L +12%, worse
BL25.2 T·m +10%, better
Xmax8 mm −47%, worse
Sensitivity97.8 dB +3.2, better
Oberton18B500
No current priceFs35 Hz +20%, worse
Qts0.28 –
Vas243.9 L +18%, worse
BL24.1 T·m +6%
Xmax8.8 mm −42%, worse
Sensitivity97.7 dB +3.1, better
Eighteen Sound18LW1251
No current priceFs35 Hz +21%, worse
Qts0.27 –
Vas268 L +29%, worse
BL23.6 T·m +4%
Xmax9 mm −40%, worse
Sensitivity98.2 dB +3.6, better
VAS Audio18-1700NC
No current priceFs32 Hz +10%, worse
Qts0.28 +4%
Vas178 L −14%, better
BL34.4 T·m +51%, better
Xmax13.5 mm −10%, worse
Sensitivity95.1 dB +0.5
No photo
FaneIMPERIUM 18NDXL
No current priceFs33 Hz +14%, worse
Qts0.29 +9%
Vas203 L –
BL29.4 T·m +29%, better
Xmax12 mm −20%, worse
Sensitivity95.9 dB +1.3
RCFLF18N408
No current priceFs30 Hz +3%
Qts0.33 +22%, worse
Vas193 L −7%
BL25.7 T·m +13%, better
Xmax15 mm –
Sensitivity93.6 dB −1
VAS Audio18-1700FC
No current priceFs33 Hz +14%, worse
Qts0.29 +9%
Vas181 L −13%, better
BL33 T·m +45%, better
Xmax13.5 mm −10%, worse
Sensitivity95.4 dB +0.8
CIAREPW455
No current priceFs35 Hz +21%, worse
Qts0.24 −11%, better
Vas236 L +14%, worse
BL21.8 T·m −4%
Xmax8.5 mm −43%, worse
Sensitivity98.3 dB +3.7, better
