Overview
LF Driver
Eighteen Sound

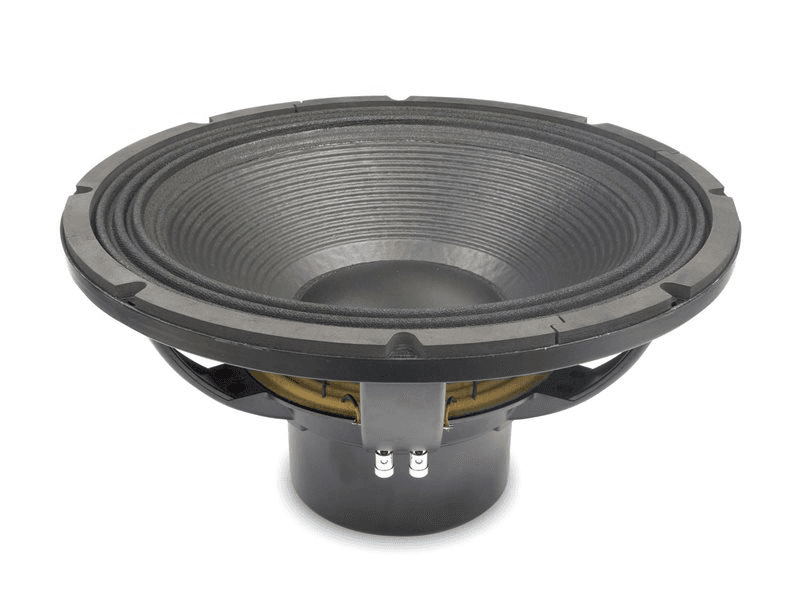

Eighteen Sound 18NLW9601
Eighteen Sound 18NLW9601 is a 18" 4 ohm LF driver rated at 1800W RMS. The validated T/S data includes Fs 38Hz, Qts 0.28, Vas 111L, Xmax 14mm, sensitivity 95.3dB, plus 1813cm³ Vd and 131 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
4Ω
RMS Power
1800W
Sensitivity
95.3dB
EBP
131
Vented alignment
Vd
1813cm³
T/S Parameters
Valid
Fs38Hz
Qts0.28
Qes0.29
Qms6.0
Vas111.0L
Re2.7Ω
Le1.53mH
BL25.0Tm
Sd1295cm²
Mms255g
Xmax14.0mm
SPL95dB
Power1800W
Power Nominal1800W
Impedance4Ω
F Low30Hz
F High2300Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.8kg
Diameter462.0mm
Overall Depth236.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter440.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
18NLW9601
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
£610.00
Eighteen Sound
18NLW9601
18"
Xmax14mm0%
Qts0.280%
BL31Tm+24%
Vas120L+8%
Qes0.3+3%
81%
Similarity
£435.74
B&C
18SW115
18"
Xmax14mm0%
Qts0.3+7%
BL26Tm+4%
Vas149.1L+34%
Qes0.31+7%
78%
Similarity
Eighteen Sound
18NLW4500
18"
Xmax14.8mm+5%
Qts0.31+11%
BL26.7Tm+7%
Vas127L+14%
Qes0.32+10%
78%
Similarity
Precision Devices
PD.185NR1
18"
Xmax11.8mm-16%
Qts0.27-4%
BL29.5Tm+18%
Vas102L-8%
Qes0.290%
74%
Similarity
£359.00
B&C
18DS100
18"
Xmax14.5mm+4%
Qts0.29+4%
BL30Tm+20%
Vas155L+40%
Qes0.3+3%
74%
Similarity
Eighteen Sound
18ID
18"
Xmax15.5mm+11%
Qts0.26-7%
BL24Tm-4%
Vas67L-40%
Qes0.27-7%
72%
Similarity
Oberton
18NXB1601
18"
Xmax12.5mm-11%
Qts0.29+2%
BL30.5Tm+22%
Vas146.2L+32%
Qes0.3+4%
71%
Similarity
£460.91
B&C
18DS100
18"
Xmax14mm0%
Qts0.24-14%
BL24.3Tm-3%
Vas157L+41%
Qes0.24-17%
69%
Similarity
Oberton
18NXB1200
18"
Xmax11.5mm-18%
Qts0.28+1%
BL29.4Tm+17%
Vas159.6L+44%
Qes0.290%
65%
Similarity

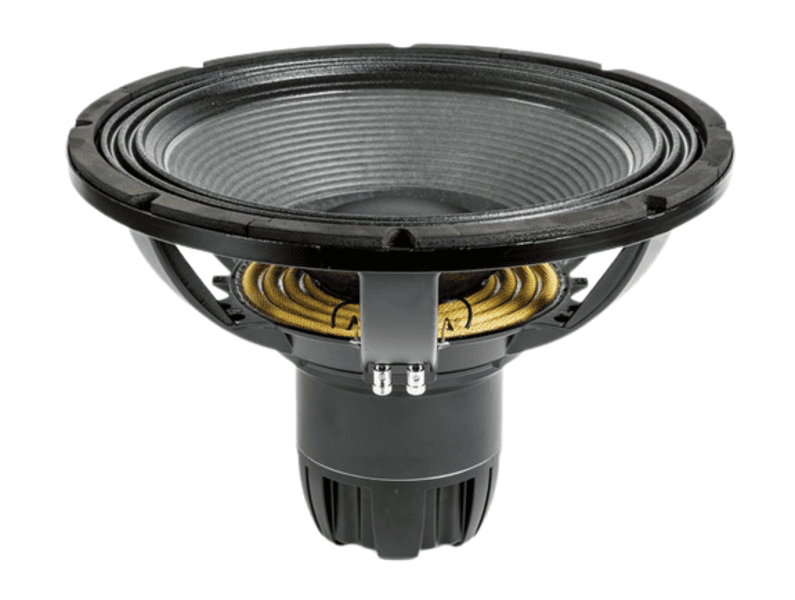

Eighteen Sound
