B&C design · archived
S18BN
18" 3400W Subwoofer Enclosure - 18" Neo Subwoofer
- Drivers
- 18SW115, 8 Ω
- Power
- 3,400 W
Designed with the 8 Ω version.
18-inch LF driver · 18SW series · 116 mm voice coil · 1,700 W
B&C 18SW115 4Ω
35–1500 Hz
- Fs
- 34Hz
- Xmax
- 14mm
- SPL
- 95dB
- Pe
- 1700W
- BL
- 26T·m
- Vd
- 1694cm³
- Qts
- 0.30
- Vas
- 149L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

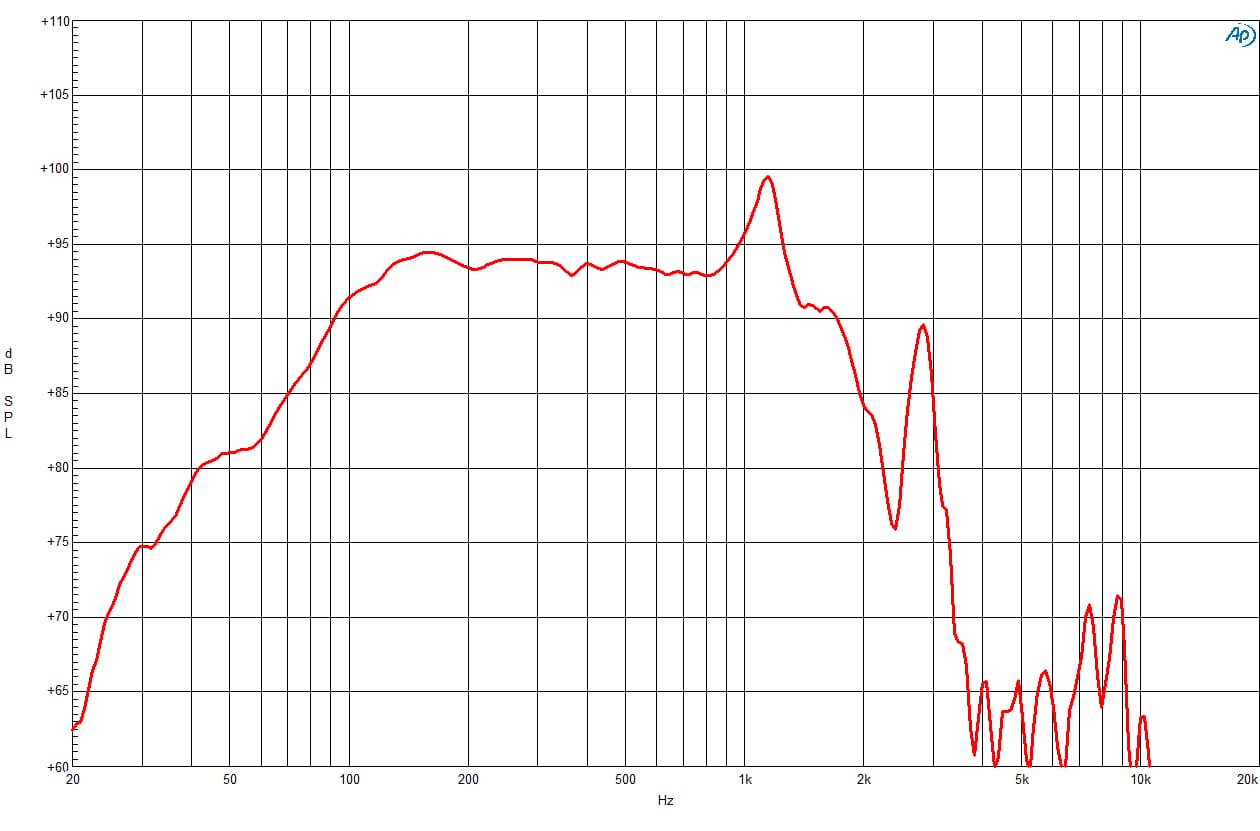

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 ac6a2bf4a385…Medium confidence6,828 selected pixels of 6,828 - Trace datasheet-response-trace-poc/v2
free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 ac6a2bf4a385…Medium confidence3,823 selected pixels of 3,823
Published graphs
B&C 18SW115 is an 18-inch 4 ohm LF driver rated at 1700 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.30, Vas 149.1 L, Xmax 14 mm, sensitivity 94.8 dB, plus 1694 cm³ Vd and 110 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £431.10.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 6.1
- Vas
- 149.1L
- Re
- 3.3Ω
- Le
- 1.36mH
Motor and cone
- BL
- 26T·m
- Sd
- 1210cm²
- Mms
- 304g
- Xmax
- 14mm
- Vd †
- 1694cm³
- Voice coil
- 116mm
- Flux density
- 1.16T
Power and response
- Sensitivity †
- 94.8dB
- Manufacturer sensitivity
- 96dB
- Power
- 1700W
- Nominal power
- 1700W
- Impedance
- 4Ω
- Min. impedance
- 4.1Ω
- Range
- 35–1500Hz
- EBP †
- 110 · Leans vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 425mm
- Bolt circle
- 443mm
- Depth
- 242mm
- Weight
- 11.9kg
Sensitivity shows 94.8 dB, calculated from the T/S values. B&C publishes 96.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 26T·m
- Fs
- 34Hz
- Le
- 1.36mH
- Re
- 3.3Ω
- Sd
- 1210cm²
- Mms
- 304g
- Qes
- 0.31
- Qms
- 6.1
- Qts
- 0.30
- SPL
- 94.8dB
- Vas
- 149.1L
- Xmax
- 14mm
- Power
- 1700W
- Impedance
- 4Ω
- Flux density
- 1.16T
- Sensitivity
- 96dB
- Low limit
- 35Hz
- Nominal power
- 1700W
- Calculated sensitivity †
- 94.8dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 96dB
- Min. impedance
- 4.1Ω
- Voice coil
- 116mm
- Weight
- 11.9kg
- Diameter
- 460mm
- Depth
- 242mm
- Cutout
- 425mm
- Bolt circle
- 443mm
- Bl
- 26 Tm
- Fs
- 34 Hz
- Le
- 1.36 mH
- Re
- 3.3 Ω
- Sd
- 1210 cm² (187.6 in²)
- Ebp
- 110 Hz
- Mms
- 304 g
- Qes
- 0.31
- Qms
- 6.1
- Qts
- 0.3
- Vas
- 149.1 dm³ (5.27 ft³)
- Η0
- 1.8 %
- Cone
- RCK18SW1154
- Xmax
- 14 mm
- Xvar
- 16 mm
- Depth
- 242 mm (9.5 in)
- Spider
- Double Silicone
- Cone shape
- Radial
- Net weight
- 11.9 kg (26.2 lb)
- Pole design
- T-Pole
- Sensitivity
- 96 dB
- Flux density
- 1.16 T
- Shipping box
- 500x500x300 mm (19.69x19.69x11.81 in)
- Winding depth
- 34 mm (1.33 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 35 Hz - 1500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 13.7 kg (30.2 lb)
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18 in)
- Winding material
- Copper
- Minimum impedance
- 4.1 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 14 mm (0.55 in)
- Recommended tuning
- 35 Hz
- Voice coil diameter
- 116 mm (4.5 in)
- Bolt circle diameter
- 443 mm (17.44 in)
- Recommended enclosure
- 150 dm³ (5.3 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 425 mm (16.73 in)
- Nominal power handling
- 1700 W
- Continuous power handling
- 3400 W
- Flange and gasket thickness
- 16 mm (0.62 in)
- Air volume occupied by driver
- 10.5 dm³ (0.37 ft³)
02
Designs
Cabinets for the 18SW115: two designs and a suggested box from B&C, and plans builders have published.
All 18SW115 designsHow we find designsB&C’s designs
From the maker, with plans to download
B&C design · archived
S18CN
18" 3400W Small Enclosure Subwoofer - 18" Neo Subwoofer
- Drivers
- 18SW115, 8 Ω
- Power
- 3,400 W
Designed with the 8 Ω version.

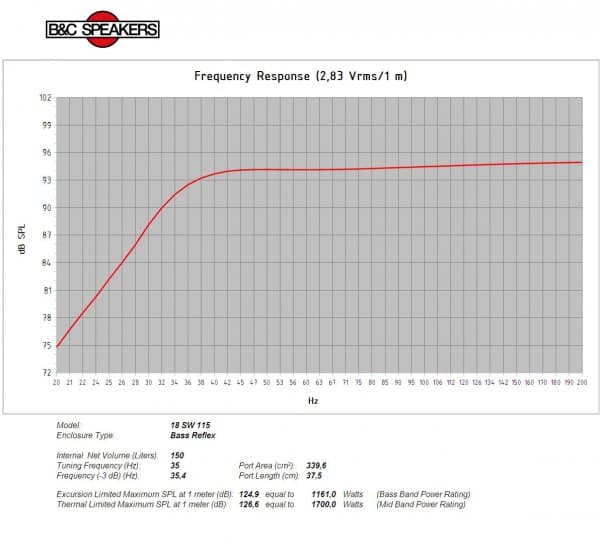

B&C’s suggested box
From B&C’s 18SW115 page
- Net volume
- 150L
- Tuning
- 35Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
