No product photo

18-inch LF driver · 1,200 W

Fane IMPERIUM 18NDXL 8Ω

Name: Fane IMPERIUM 18NDXL 8 Ohm
Brand: Fane
SKU: IMPERIUM 18NDXL

8 Ω · 30–2000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 33Hz
Xmax: 12mm
SPL: 96dB
Pe: 1200W
BL: 29.4T·m
Vd: 1397cm³
Qts: 0.29
Vas: 203L

See all 24 specs

Specifications

Published by Fane

Manufacturer page

Datasheet PDF

Fane IMPERIUM 18NDXL is an 18-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.29, Vas 203 L, Xmax 12 mm, sensitivity 95.9 dB, plus 1397 cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 33Hz
Qts: 0.29
Qes: 0.30
Qms: 17.7
Vas: 203L
Re: 5.6Ω
Le: 2.76mH

Motor and cone

BL: 29.4T·m
Sd: 1164cm²
Mms: 220g
Xmax: 12mm
Vd †: 1397cm³

Power and response

Sensitivity †: 95.9dB
Manufacturer sensitivity: 98.5dB
Power: 1200W
Impedance: 8Ω
Range: 30–2000Hz
EBP †: 110 · Leans vented

Size and mounting

Diameter: 485mm
Depth: 203.6mm
Weight: 11.5kg

Other published values

Cms: 0.11mm/N
Power Peak: 4800
Power Program: 2400

Sensitivity shows 95.9 dB, calculated from the T/S values. Fane publishes 98.5 dB, 2.6 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Fane lists

LF · Primary · 18″

BL: 29.4T·m
Fs: 33Hz
Le: 2.76mH
Re: 5.6Ω
Sd: 1164cm²
Cms: 0.11mm/N
Mms: 220g
Qes: 0.30
Qms: 17.7
Qts: 0.29
SPL: 95.9dB
Vas: 203L
Xmax: 12mm
Power: 1200W
Impedance: 8Ω
Power Peak: 4800
Sensitivity: 98.5dB
Low limit: 30Hz
Power Program: 2400
Calculated sensitivity †: 95.9dB
High limit: 2000Hz
Manufacturer sensitivity: 98.5dB
Weight: 11.5kg
Diameter: 485mm
Depth: 203.6mm

Compare

Same-size drivers, compared with the IMPERIUM 18NDXL. Clear differences are green when better and red when worse.

No photo

This driverIMPERIUM 18NDXL

Best price

–

33 Hz

Qts

0.29

Vas

203 L

29.4 T·m

Xmax

12 mm

Sensitivity

95.9 dB

Power

1200 W

FaitalPRO18HP1022

£266.26

Fs35 Hz +6%

Qts0.30 –

Vas204.9 L –

BL28 T·m −5%

Xmax9.5 mm −21%

Sensitivity96.6 dB +0.7

Eighteen Sound18LW2400

£272.63

Fs35 Hz +6%

Qts0.31 +5%

Vas230 L +13%

BL25.6 T·m −13%

Xmax9.5 mm −21%

Sensitivity96.9 dB +1

Beyma18PW1400FE

£273.68

Fs32 Hz −3%

Qts0.27 −8%

Vas228.9 L +13%

BL29 T·m –

Xmax10 mm −17%

Sensitivity96.3 dB –

Beyma18LEX1200ND

£279.79

Fs36 Hz +9%

Qts0.33 +12%

Vas219 L +8%

BL26.4 T·m −10%

Xmax11 mm −8%

Sensitivity96.7 dB +0.8

Oberton18XB1301DS

£284.15

Fs36 Hz +8%

Qts0.30 –

Vas172.9 L −15%

BL26.9 T·m −9%

Xmax12 mm –

Sensitivity96 dB –

RCFLF18X401

£289.00

Fs30 Hz −9%

Qts0.30 –

Vas274 L +35%

BL26.5 T·m −10%

Xmax12 mm –

Sensitivity95.8 dB –

CIARENDH18-4S

£291.62

Fs31 Hz −6%

Qts0.32 +8%

Vas239 L +18%

BL27.7 T·m −6%

Xmax11.5 mm −4%

Sensitivity95.4 dB −0.5

Eighteen Sound18LW2600

£297.25

Fs31 Hz −6%

Qts0.29 –

Vas187 L −8%

BL31 T·m +5%

Xmax14.8 mm +23%

Sensitivity94.7 dB −1.2

SB AudienceNERO-18SW1100D

£334.88

Fs36 Hz +9%

Qts0.33 +12%

Vas153.1 L −25%

BL30.9 T·m +5%

Xmax12.2 mm –

Sensitivity95.3 dB −0.6

BMS18S450

£345.00

Fs29 Hz −12%

Qts0.31 +5%

Vas281 L +38%

BL26.5 T·m −10%

Xmax12 mm –

Sensitivity95.3 dB −0.6

B&C18DS100

£346.65

Fs34 Hz +3%

Qts0.29 –

Vas155 L −24%

BL30 T·m –

Xmax14.5 mm +21%

Sensitivity95.1 dB −0.8

RCFLF18X451

£360.00

Fs30 Hz −9%

Qts0.28 −5%

Vas220 L +8%

BL30.5 T·m +4%

Xmax14 mm +17%

Sensitivity95.1 dB −0.8

Oberton18XB1600V2

£388.58

Fs33 Hz –

Qts0.28 −6%

Vas267 L +32%

BL29.6 T·m –

Xmax12.5 mm +4%

Sensitivity97.1 dB +1.2

Precision DevicesPD.1852/2

£397.00

Fs42 Hz +27%

Qts0.33 +12%

Vas120.4 L −41%

BL30.5 T·m +4%

Xmax12 mm –

Sensitivity96.2 dB –

CelestionCF18VJD

£399.00

Fs35 Hz +5%

Qts0.31 +5%

Vas145.8 L −28%

BL32.6 T·m +11%

Xmax12 mm –

Sensitivity94.6 dB −1.3

B&C18SW115

£430.38

Fs32 Hz −3%

Qts0.30 –

Vas187 L −8%

BL30.3 T·m +3%

Xmax14 mm +17%

Sensitivity94.9 dB −1

BMS18N850V2

£457.13

Fs30 Hz −10%

Qts0.33 +12%

Vas243 L +20%

BL25.4 T·m −14%

Xmax12 mm –

Sensitivity94.7 dB −1.2

FaitalPRO18XL1700

£469.00

Fs28 Hz −15%

Qts0.28 −5%

Vas227 L +12%

BL30.5 T·m +4%

Xmax16.2 mm +35%

Sensitivity94.4 dB −1.5

Eighteen Sound18NLW9601

£543.41

Fs39 Hz +18%

Qts0.28 −5%

Vas120 L −41%

BL31 T·m +5%

Xmax14 mm +17%

Sensitivity95.8 dB –

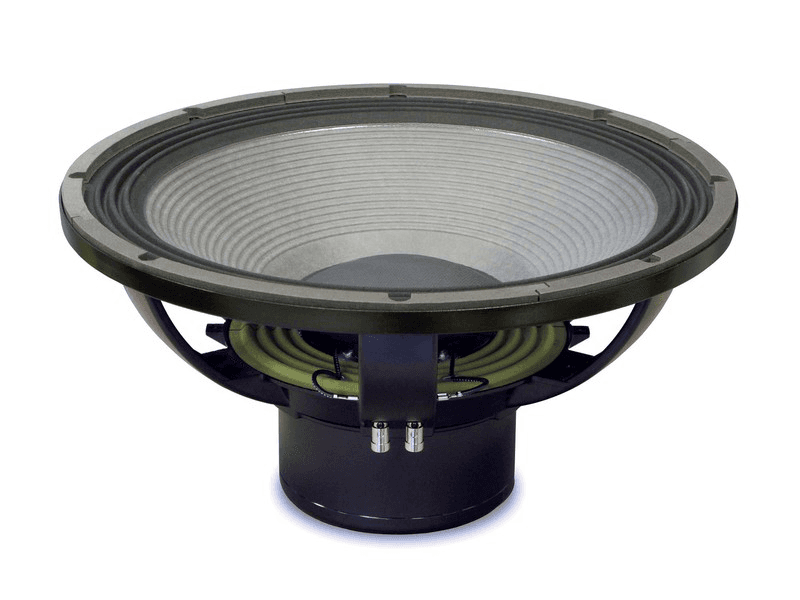

Eighteen Sound18NLW9000

£550.00

Fs34 Hz +3%

Qts0.31 +5%

Vas206 L –

BL28 T·m −5%

Xmax14 mm +17%

Sensitivity96.1 dB –

B&C18HTX100

£809.86

Fs44 Hz +33%

Qts0.32 +8%

Vas173 L −15%

BL26.3 T·m −11%

Xmax13 mm +8%

Sensitivity98.4 dB +2.5

Oberton18NXB1200

No current price

Fs36 Hz +9%

Qts0.28 −4%

Vas159.6 L −21%

BL29.4 T·m –

Xmax11.5 mm −4%

Sensitivity96 dB –

Oberton18NXB1601

No current price

Fs35 Hz +5%

Qts0.29 −3%

Vas146.2 L −28%

BL30.5 T·m +4%

Xmax12.5 mm +4%

Sensitivity95.1 dB −0.8

VAS Audio18-1700FC

No current price

Fs33 Hz –

Qts0.29 –

Vas181 L −11%

BL33 T·m +12%

Xmax13.5 mm +13%

Sensitivity95.4 dB −0.5

No photo

RCFLF18Y402

No current price

Fs30 Hz −9%

Qts0.30 –

Vas274 L +35%

BL26.5 T·m −10%

Xmax12 mm –

Sensitivity95.8 dB –

Oberton18NXB1600

No current price

Fs32 Hz –

Qts0.30 –

Vas173.1 L −15%

BL29.6 T·m –

Xmax13.5 mm +13%

Sensitivity94.5 dB −1.4

Precision DevicesPD.185NR1

No current price

Fs34 Hz +3%

Qts0.27 −8%

Vas102 L −50%

BL29.5 T·m –

Xmax11.8 mm –

Sensitivity93.4 dB −2.5

VAS Audio18-1700NC

No current price

Fs32 Hz −3%

Qts0.28 −5%

Vas178 L −12%

BL34.4 T·m +17%

Xmax13.5 mm +13%

Sensitivity95.1 dB −0.8

Oberton18XB700

No current price

Fs36 Hz +9%

Qts0.30 +3%

Vas183.2 L −10%

BL26.1 T·m −11%

Xmax9 mm −25%

Sensitivity96.4 dB +0.5

Oberton18XB1201

No current price

Fs38 Hz +15%

Qts0.32 +7%

Vas159.4 L −21%

BL26.7 T·m −9%

Xmax10.5 mm −13%

Sensitivity96.3 dB –

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.
