Overview
LF Driver
Beyma
Beyma 18QLEX1600FE
Beyma 18QLEX1600FE is a 18" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 30Hz, Qts 0.23, Vas 195L, Xmax 13mm, sensitivity 95.4dB, plus 1632cm³ Vd and 125 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £299.00.
Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
95.4dB
97.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
125
Vented alignment
Vd
1632cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,199 selected pixels of 7,737 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,814 selected pixels of 3,814
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs30Hz
Qts0.23
Qes0.24
Qms6.5
Vas195.0L
Re5.3Ω
Le3.90mH
BL36.4Tm
Sd1255cm²
Mms323g
Xmax13.0mm
SPL95dB
Power1600W
Impedance8Ω
F Low30Hz
F High1000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£299.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight14.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
18QLEX1600FE
18"
Best current price
£299.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
55%
Similarity
8% cheaper£273.68
Beyma
18PW1400FE
18"
Lower price
Xmax10mm-23%
Qts0.27+17%
BL29Tm-20%
Vas228.9L+17%
Qes0.28+17%
82%
Similarity
£299.00

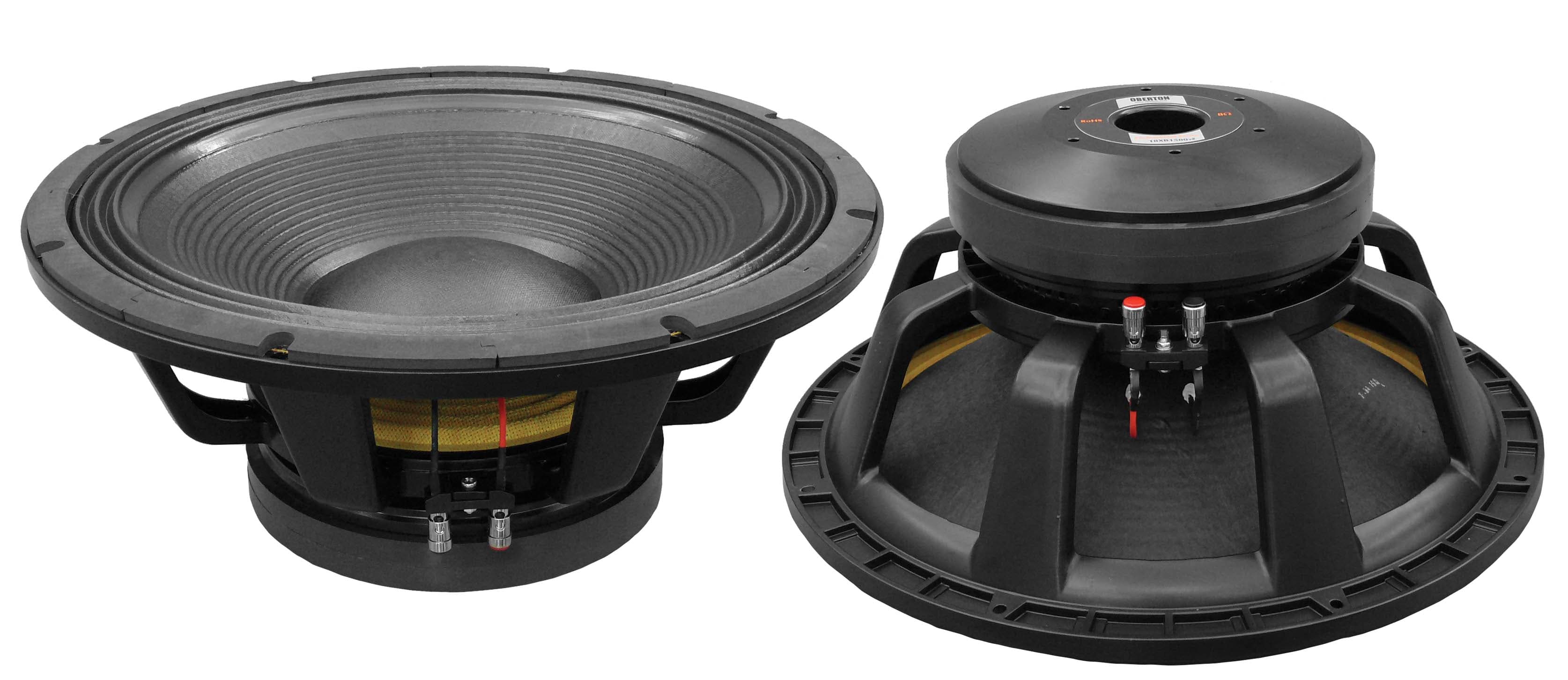

Oberton
18XB1500v2
18"
Xmax11mm-15%
Qts0.23-2%
BL31.6Tm-13%
Vas192.5L-1%
Qes0.23-5%
62%
Similarity
20% more£360.00
RCF
LF18X451
18"
Higher price
Xmax14mm+8%
Qts0.28+22%
BL30.5Tm-16%
Vas220L+13%
Qes0.29+21%
58%
Similarity
30% more£388.58
Oberton
18XB1600v2
18"
Higher price
Xmax12.5mm-4%
Qts0.28+21%
BL29.6Tm-19%
Vas267L+37%
Qes0.29+20%
55%
Similarity
42% more£425.00
FaitalPRO
18XL2000
18"
Higher price
Xmax16.3mm+26%
Qts0.27+17%
BL30.8Tm-15%
Vas232.1L+19%
Qes0.28+17%
54%
Similarity
47% more£438.26
Eighteen Sound
18NLW9601
18"
Higher price
Xmax14mm+8%
Qts0.28+22%
BL31Tm-15%
Vas120L-38%
Qes0.3+25%
64%
Similarity
50% more£448.36

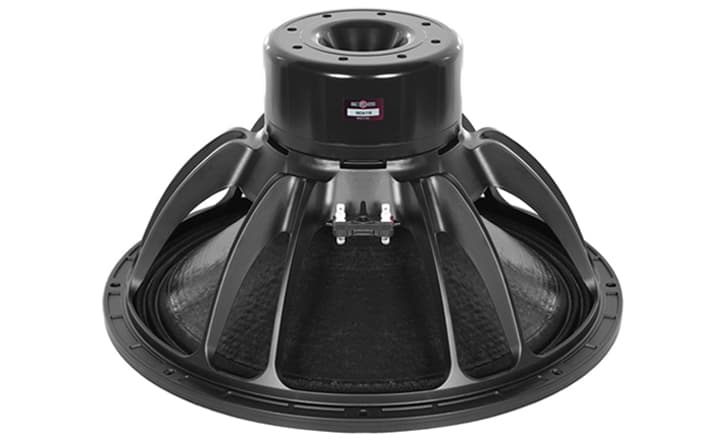

B&C
18DS115
18"
Higher price
Xmax16.5mm+27%
Qts0.2-13%
BL39Tm+7%
Vas168L-14%
Qes0.21-12%
72%
Similarity
53% more£457.46
B&C
18DS100
18"
Higher price
Xmax14mm+8%
Qts0.24+4%
BL24.3Tm-33%
Vas157L-19%
Qes0.240%
52%
Similarity
60% more£477.00
FaitalPRO
18XL1700
18"
Higher price
Xmax16.2mm+24%
Qts0.28+22%
BL30.5Tm-16%
Vas227L+16%
Qes0.29+21%
81%
Similarity

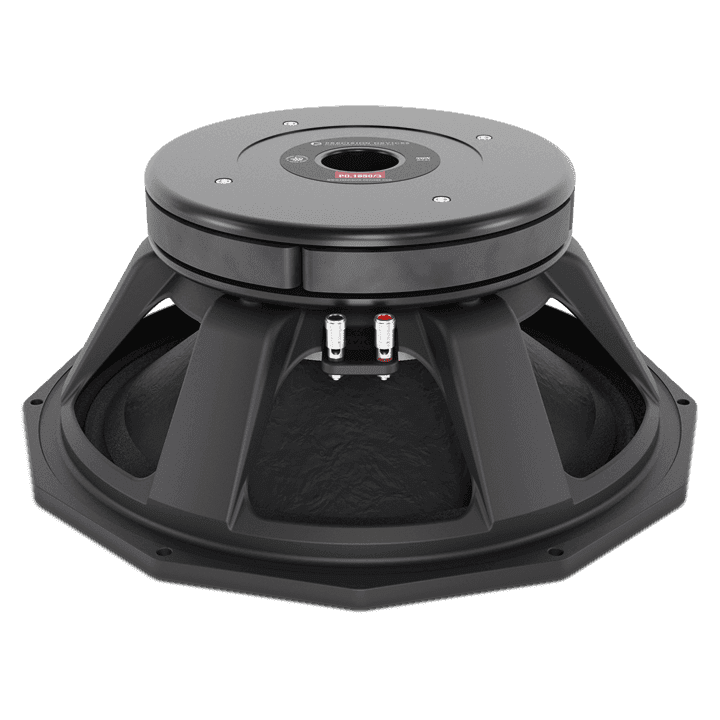

Precision Devices
PD.1850/3
18"
Xmax11.1mm-15%
Qts0.24+4%
BL31Tm-15%
Vas203.8L+5%
Qes0.240%
76%
Similarity

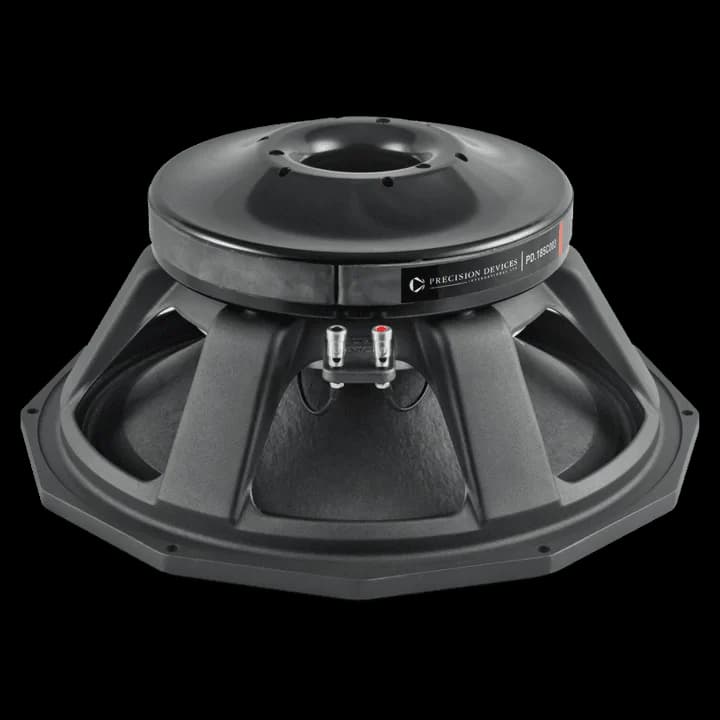

Precision Devices
PD.185C003
18"
Xmax11mm-15%
Qts0.24+4%
BL31.5Tm-13%
Vas224L+15%
Qes0.23-5%
61%
Similarity
Oberton
18NSW700
18"
Xmax14mm+8%
Qts0.24+6%
BL26.6Tm-27%
Vas309L+58%
Qes0.25+4%
