LF Driver18DS series
B&C
B&C 18DS115
B&C 18DS115 is a 18" 8 ohm LF driver rated at 1700W RMS. The validated T/S data includes Fs 30Hz, Qts 0.20, Vas 168L, Xmax 16.5mm, sensitivity 95.4dB, plus 1997cm³ Vd and 143 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £448.36.
Size
18"
Impedance
8Ω
RMS Power
1700W
Sensitivity
95.4dB
98.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
143
Vented alignment
Vd
1997cm³

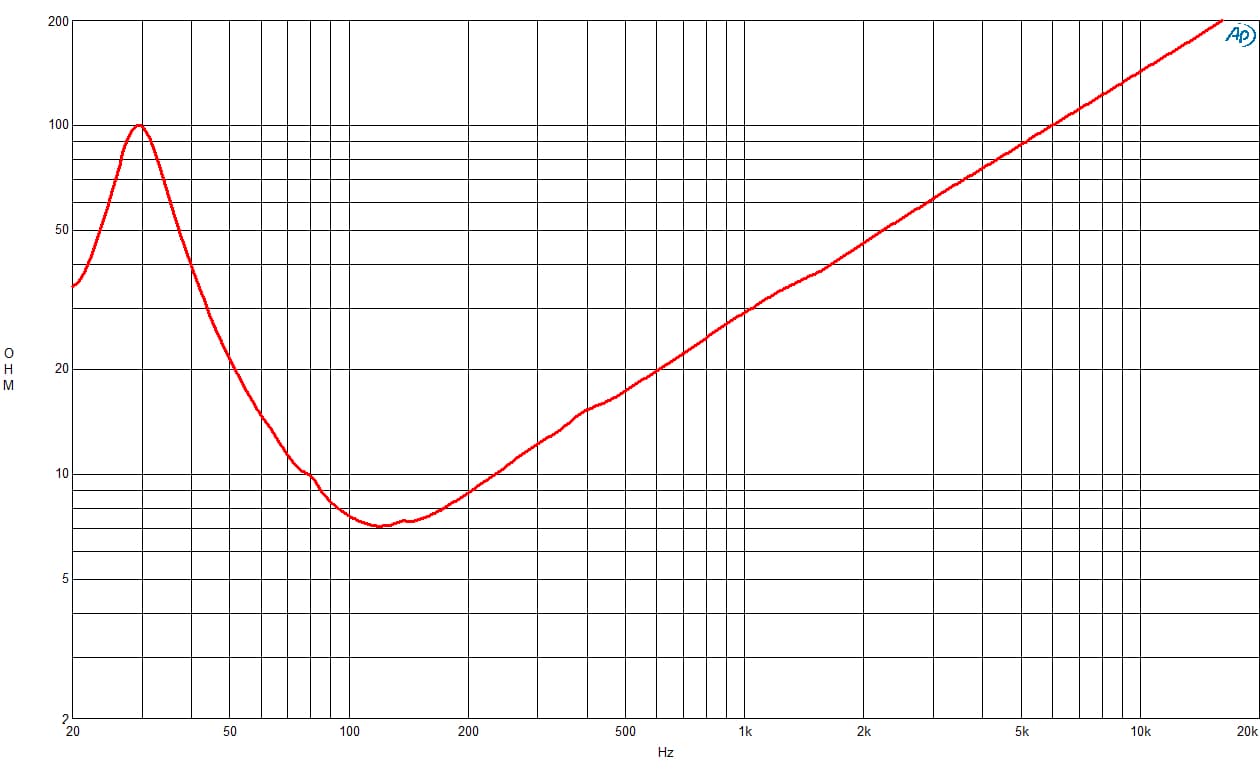

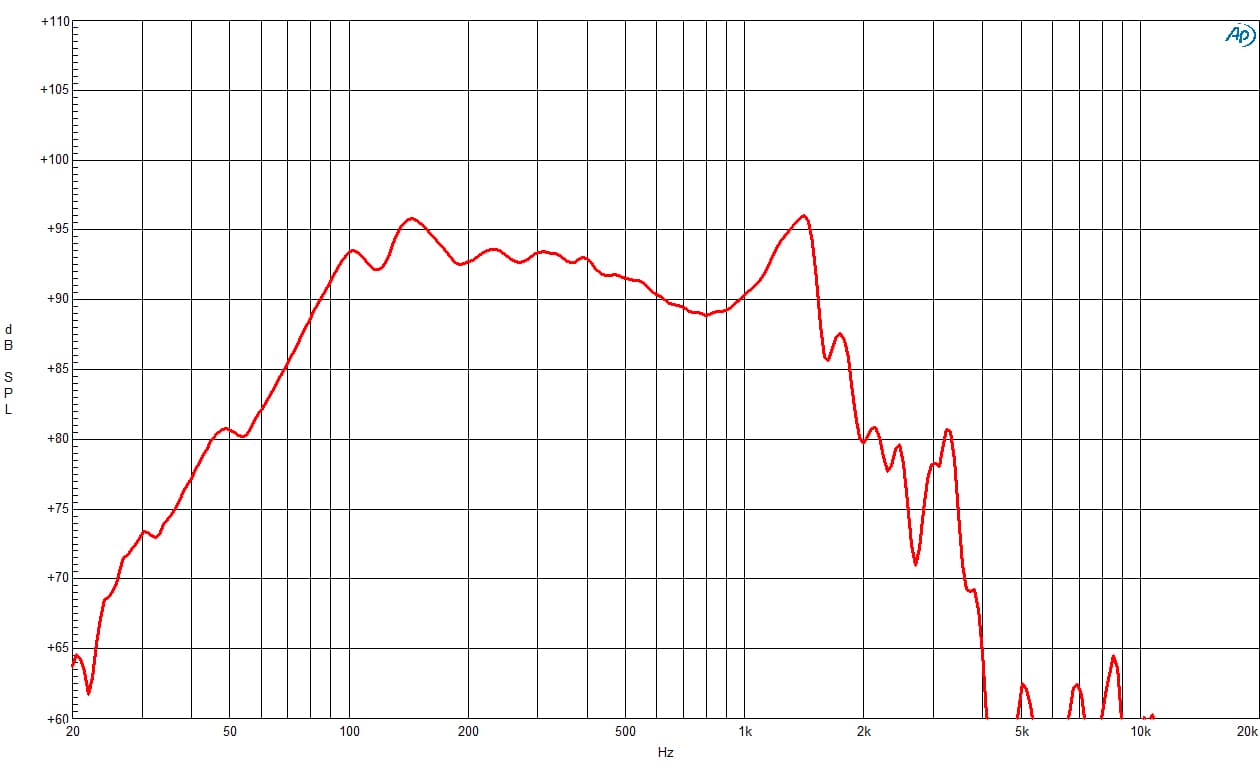

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs30Hz
Qts0.20
Qes0.21
Qms4.3
Vas168.0L
Re5.0Ω
Le3.85mH
BL39.0Tm
Sd1210cm²
Mms330g
Xmax16.5mm
SPL95dB
Power1700W
Power Nominal1700W
Impedance8Ω
Min Impedance7.0Ω
F Low30Hz
F High500Hz
Voice Coil116mm
Flux Density0.80T
Pricing & availability
Price definitionsPrice movement
Best current price
£448.36
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.6kg
Diameter460.0mm
Overall Depth248.0mm
Cutout Diameter425.0mm
Bolt Circle Diameter442.0mm
Additional Manufacturer Specs
Bl39 Tm
Fs30 Hz
Le3.85 mH
Re5 Ω
Sd1210 cm² (187.55 in²)
Ebp143 Hz
Mms330 g
Qes0.21
Qms4.3
Qts0.2
Vas168 dm³ (5.93 ft³)
η02.2 %
ConeRCK18DS1158
Xmax16.5 mm
Xvar14 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth40 mm (1.57 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter460 mm (18 in)
Winding MaterialAluminium
Magnetic Gap Depth14 mm (0.55 in)
Recommended Tuning40 Hz
Bolt Circle Diameter442 mm (17.4 in)
Recommended Enclosure100 dm³ (3.53 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter425 mm (16.73 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver10 dm³ (0.35 ft³)
