Name: B&C 19RS115 8 Ohm
Brand: B&C
SKU: 19RS115

Media

B&C 19RS115 19 inch 8 ohm loudspeaker driver view 1

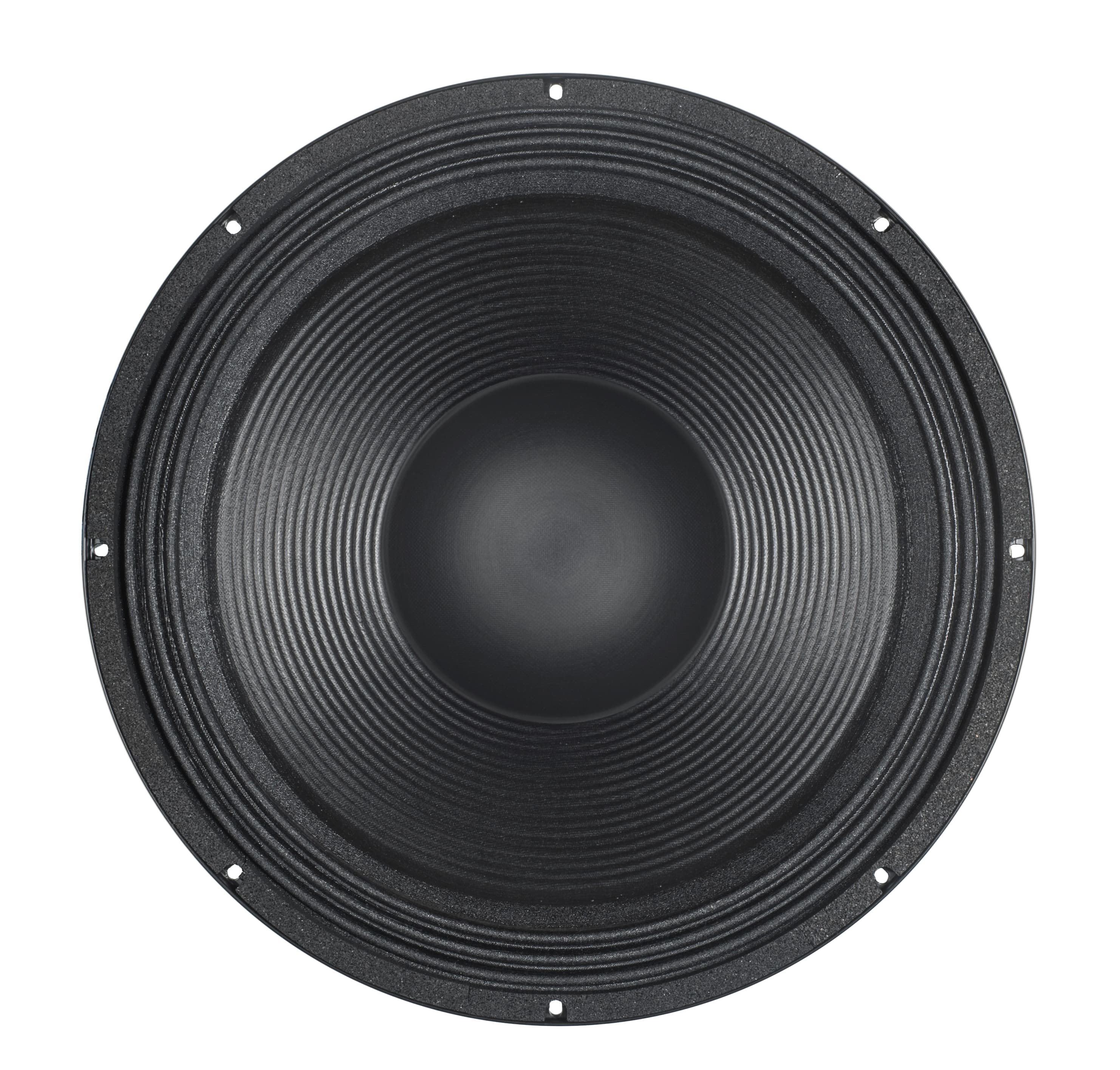

B&C 19RS115 19 inch 8 ohm loudspeaker driver view 2

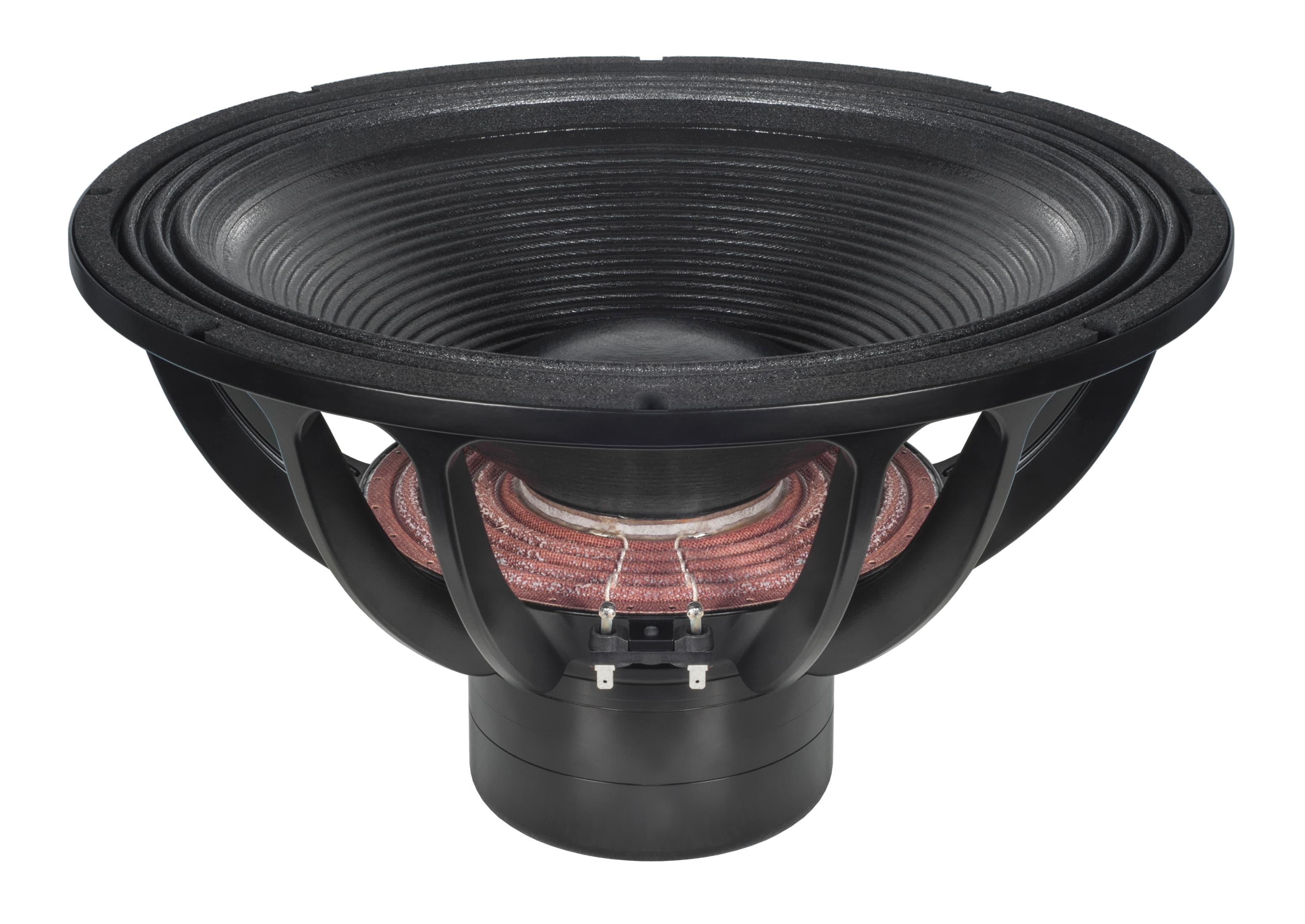

B&C 19RS115 19 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver19RS series

B&C

B&C 19RS115

B&C 19RS115 is a 19" 8 ohm LF driver rated at 2000W RMS. The validated T/S data includes Fs 29Hz, Qts 0.20, Vas 197L, Xmax 23.5mm, sensitivity 95.6dB, plus 3408cm³ Vd and 138 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

19"

Impedance

8Ω

RMS Power

2000W

Sensitivity

95.6dB

96.7dBmanufacturer; using T/S-derived value (1.1dB delta).

EBP

138

Vented alignment

V_d

3408cm³

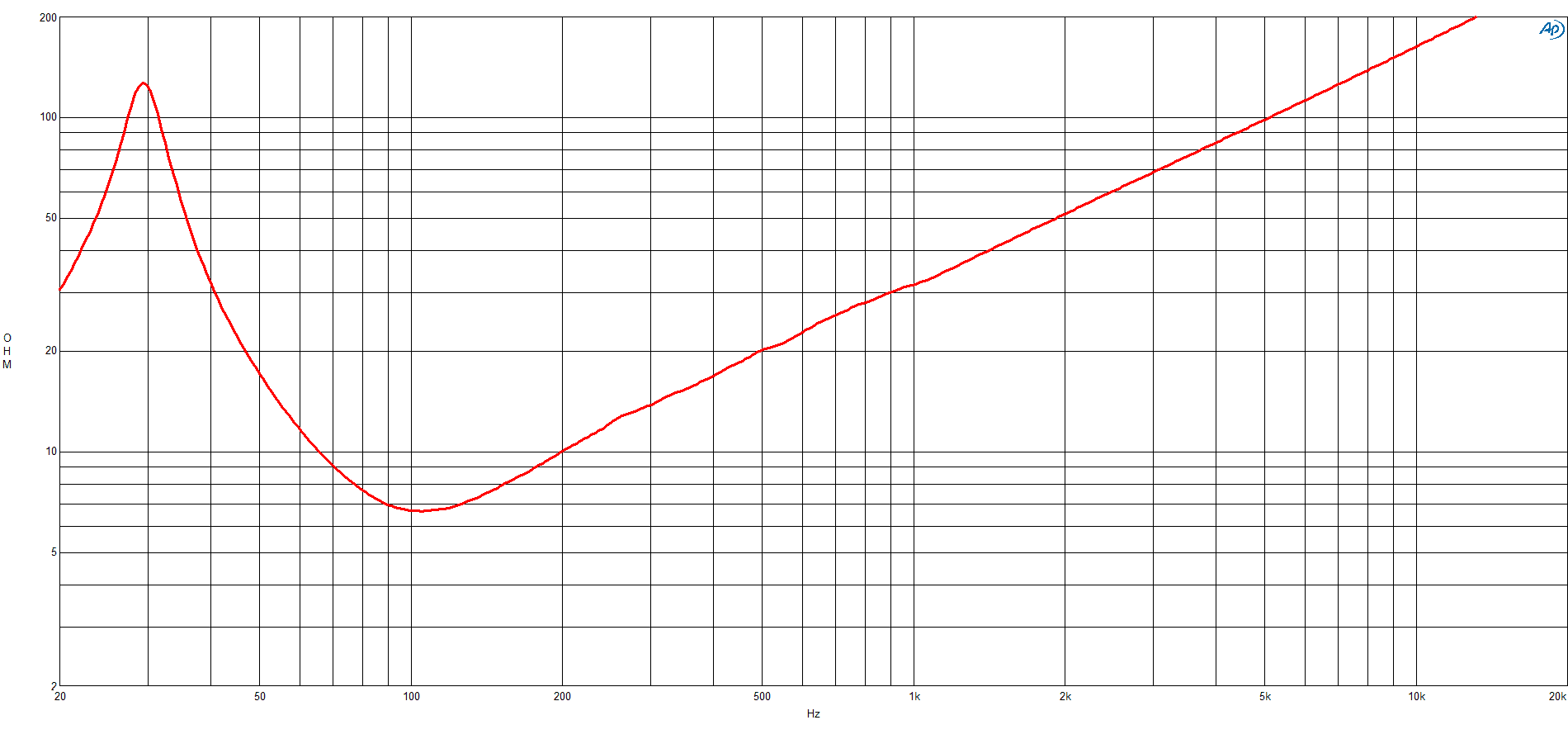

Frequency response

Manufacturer-provided response plots and related charts.

2 images

T/S Parameters

Valid

Canonical

Fs29Hz

Qts0.20

Qes0.21

Qms6.2

Vas197.0L

Re4.6Ω

Le4.10mH

BL42.0Tm

Sd1450cm²

Mms447g

Xmax23.5mm

SPL96dB

Power2000W

Power Nominal2000W

Impedance8Ω

Min Impedance6.5Ω

F Low30Hz

F High1000Hz

Voice Coil116mm

Flux Density0.90T

What this validation status means

Pricing & availability

Price definitions

No current price found

Pricing may appear after the next vendor refresh.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight15.8kg

Diameter494.0mm

Overall Depth285.0mm

Cutout Diameter455.0mm

Bolt Circle Diameter476.0mm

Additional Manufacturer Specs

Bl42 Tm

Fs29 Hz

Le4.1 mH

Re4.6 Ω

Sd1450 cm² (224.75 in²)

Ebp138 Hz

Mms447 g

Qes0.21

Qms6.2

Qts0.2

Vas197 dm³ (6.96 ft³)

η02.3 %

Xmax23.5 mm

Xvar19 mm

SpiderDouble Silicone

Cone ShapeStraight

Pole DesignT-Pole

Winding Depth54 mm (2.13 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialNeodymium Inside Slug

Nominal Diameter483 mm (19 in)

Winding MaterialAluminium

Magnetic Gap Depth14 mm (0.55 in)

Bolt Circle Diameter476 mm (18.74 in)

Woofer Cone TreatmentTWP Waterproof Both Sides

Baffle Cutout Diameter455 mm (17.91 in)

Flange And Gasket Thickness13 mm (0.51 in)
