- Net volume
- 120L
- Tuning
- 33Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
18-inch LF driver · 1,800 W
Eighteen Sound 18ID200 2Ω
2 Ω · 29–1000 Hz
No price for delivery to the UK
- Fs
- 29Hz
- Xmax
- 18mm
- SPL
- 95dB
- Pe
- 1800W
- BL
- 24.4T·m
- Vd
- 2205cm³
- Qts
- 0.17
- Vas
- 136L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

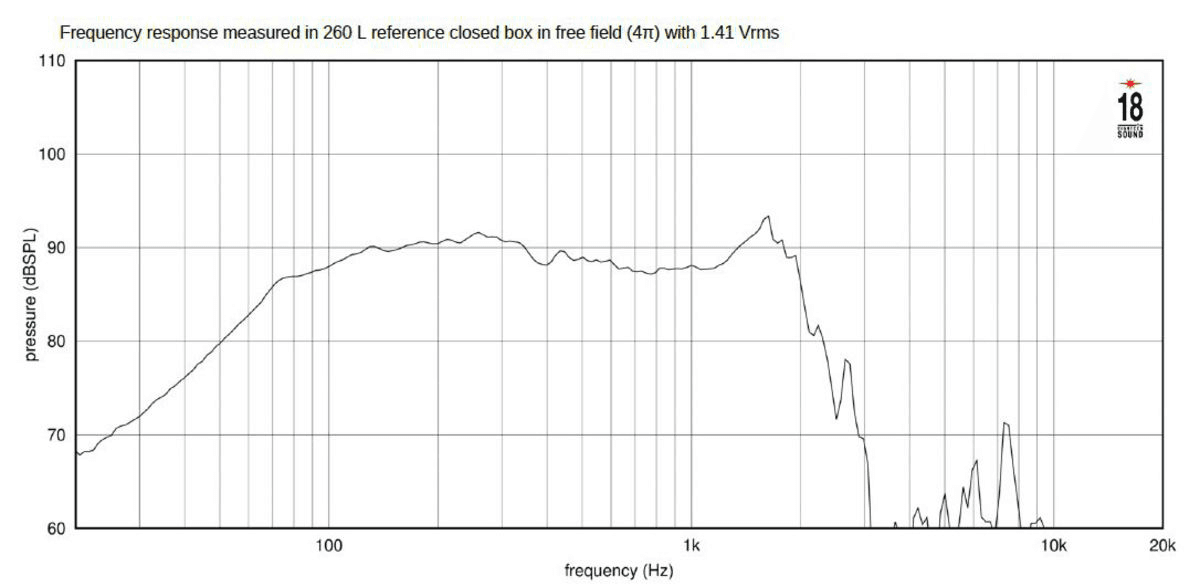

frequency response
Frequency response
240 plotted pointsMedium confidence462 selected pixels of 1,792

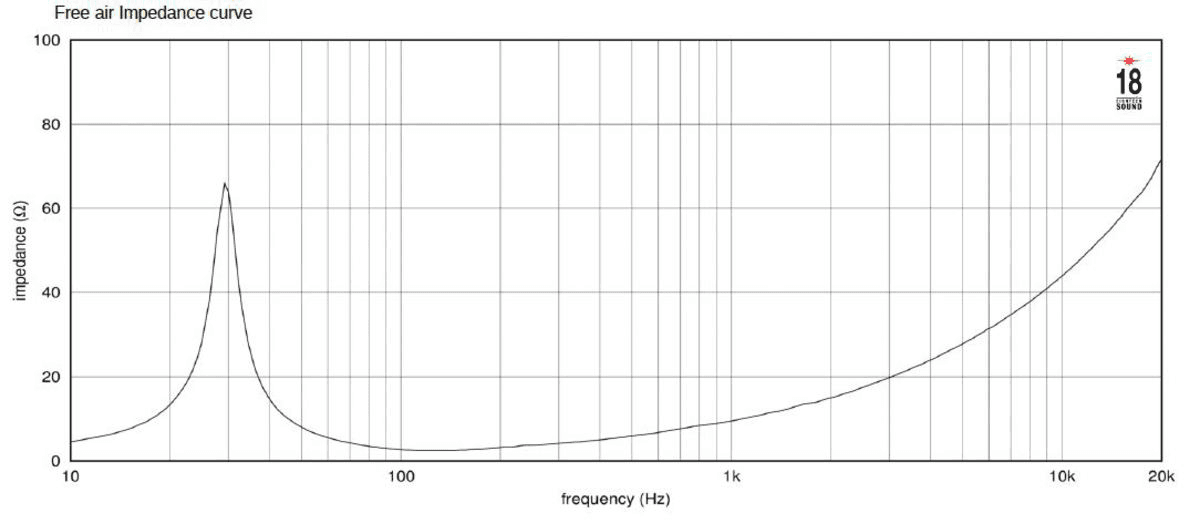

Published graphs
Eighteen Sound 18ID200 is an 18-inch 2 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.17, Vas 136 L, Xmax 18 mm, sensitivity 94.7 dB, plus 2205 cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.17
- Qes
- 0.18
- Qms
- 7
- Vas
- 136L
- Re
- 1.3Ω
- Le
- 0.93mH
Motor and cone
- BL
- 24.4T·m
- Sd
- 1225cm²
- Mms
- 444g
- Xmax
- 18mm
- Vd †
- 2205cm³
Power and response
- Sensitivity †
- 94.7dB
- Manufacturer sensitivity
- 95dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 2Ω
- Range
- 29–1000Hz
- EBP †
- 161 · Leans vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 417mm
- Bolt circle
- 440mm
- Depth
- 238mm
- Weight
- 16kg
Other published values
- Power Program
- 3600
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 24.4T·m
- Fs
- 29Hz
- Le
- 0.93mH
- Re
- 1.3Ω
- Sd
- 1225cm²
- Mms
- 444g
- Qes
- 0.18
- Qms
- 7
- Qts
- 0.17
- SPL
- 94.7dB
- Vas
- 136L
- Xmax
- 18mm
- Power
- 1800W
- Impedance
- 2Ω
- Sensitivity
- 95dB
- Low limit
- 29Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 94.7dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 16kg
- Diameter
- 462mm
- Depth
- 238mm
- Cutout
- 417mm
- Bolt circle
- 440mm
02
Designs
What Eighteen Sound suggests for the 18ID200. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 18ID200 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18ID200. Clear differences are green when better and red when worse.
This driver18ID200
Best price
–
Fs
29 Hz
Qts
0.17
Vas
136 L
BL
24.4 T·m
Xmax
18 mm
Sensitivity
94.7 dB
Power
1800 W
LavoceSAF184.04
£225.24Fs38 Hz +31%, worse
Qts0.50 +194%, worse
Vas134.8 L –
BL26.5 T·m +9%
Xmax12.5 mm −31%, worse
Sensitivity93.5 dB −1.2
CelestionCF1840JD
£239.00Fs37 Hz +28%, worse
Qts0.40 +134%, worse
Vas155 L +14%, worse
BL24.8 T·m –
Xmax12.5 mm −31%, worse
Sensitivity94.6 dB –
MonacorCF1840JD/4
£283.85Fs37 Hz +28%, worse
Qts0.40 +134%, worse
Vas155 L +14%, worse
BL24.8 T·m –
Xmax12.5 mm −31%, worse
Sensitivity94.6 dB –
SB AudienceROSSO-18SW1000D
£309.76Fs35 Hz +21%, worse
Qts0.46 +171%, worse
Vas164.3 L +21%, worse
BL25.8 T·m +6%
Xmax13.7 mm −24%, worse
Sensitivity93.6 dB −1.1
Sica18 PF 4
£355.82Fs38 Hz +31%, worse
Qts0.43 +153%, worse
Vas147.3 L +8%
BL24.6 T·m –
Xmax8 mm −56%, worse
Sensitivity94.4 dB –
SB AudienceNERO-18SW1900D
£393.49Fs34 Hz +17%, worse
Qts0.42 +147%, worse
Vas157.9 L +16%, worse
BL28.5 T·m +17%, better
Xmax17.5 mm –
Sensitivity93.6 dB −1.1
No photo
Precision DevicesPD.1845-2N
£422.00Fs35 Hz +21%, worse
Qts0.39 +128%, worse
Vas157 L +15%, worse
BL27 T·m +11%, better
Xmax18 mm –
Sensitivity94.3 dB –
B&C18SW115
£426.19Fs34 Hz +17%, worse
Qts0.30 +76%, worse
Vas149.1 L +10%
BL26 T·m +7%
Xmax14 mm −22%, worse
Sensitivity94.8 dB –
B&C18DS115
£434.56Fs30 Hz +3%
Qts0.17 –
Vas177 L +30%, worse
BL34 T·m +39%, better
Xmax16.5 mm −8%
Sensitivity96.3 dB +1.6
B&C18DS100
£456.91Fs32 Hz +10%, worse
Qts0.24 +41%, worse
Vas157 L +15%, worse
BL24.3 T·m –
Xmax14 mm −22%, worse
Sensitivity95.3 dB +0.6
Eighteen Sound18NLW4500
£468.89Fs37 Hz +28%, worse
Qts0.31 +82%, worse
Vas127 L −7%
BL26.7 T·m +9%
Xmax14.8 mm −18%, worse
Sensitivity95.1 dB –
Eighteen Sound18NLS4000
£486.84Fs27 Hz −7%
Qts0.35 +106%, worse
Vas168 L +24%, worse
BL24.2 T·m –
Xmax22.3 mm +24%, better
Sensitivity91.7 dB −3, worse
Eighteen Sound18NLW9601
£543.41Fs38 Hz +31%, worse
Qts0.28 +65%, worse
Vas111 L −18%, better
BL25 T·m –
Xmax14 mm −22%, worse
Sensitivity95.3 dB +0.6
REDCATT181XR
£544.21Fs30 Hz +3%
Qts0.23 +35%, worse
Vas195 L +43%, worse
BL28.3 T·m +16%, better
Xmax17 mm −6%
Sensitivity95.4 dB +0.7
Eighteen Sound18NTLW5000
£550.00Fs32 Hz +10%, worse
Qts0.30 +76%, worse
Vas165 L +21%, worse
BL25 T·m –
Xmax17.5 mm –
Sensitivity94.4 dB –
BMS18N862
£669.01Fs25 Hz −13%, better
Qts0.34 +100%, worse
Vas312 L +129%, worse
BL25.5 T·m +5%
Xmax19 mm +6%
Sensitivity93.4 dB −1.3
B&C18IPAL
£691.79Fs32 Hz +10%, worse
Qts0.14 −18%, better
Vas164 L +21%, worse
BL24.5 T·m –
Xmax20 mm +11%, better
Sensitivity97.9 dB +3.2, better
Eighteen Sound18IDSDS
No current priceFs29 Hz –
Qts0.17 –
Vas136 L –
BL24.4 T·m –
Xmax18 mm –
Sensitivity94.7 dB –
B&C18RS115
No current priceFs29 Hz –
Qts0.18 +6%
Vas143 L +5%
BL35.3 T·m +45%, better
Xmax23.3 mm +29%, better
Sensitivity94.7 dB –
P.AudioC18-1200
No current priceFs38 Hz +31%, worse
Qts0.55 +224%, worse
Vas136.4 L –
BL25.1 T·m –
Xmax9.5 mm −47%, worse
Sensitivity93.2 dB −1.5
P.Audio18BMA-1200S
No current priceFs39 Hz +34%, worse
Qts0.52 +206%, worse
Vas141.5 L +4%
BL24 T·m –
Xmax6.8 mm −62%, worse
Sensitivity93.9 dB −0.8
No photo
Precision DevicesPD.1845-1N
No current priceFs34 Hz +18%, worse
Qts0.32 +91%, worse
Vas179.0 L +32%, worse
BL26.4 T·m +8%
Xmax16 mm −11%, worse
Sensitivity95.3 dB +0.6
P.Audio18NT-100SW
No current priceFs35 Hz +21%, worse
Qts0.48 +182%, worse
Vas144.6 L +6%
BL25.2 T·m +3%
Xmax9 mm −50%, worse
Sensitivity93 dB −1.7
BishopSoundBWP18/8/V2
No current priceFs43 Hz +48%, worse
Qts0.64 +279%, worse
Vas120.9 L −11%, better
BL24.1 T·m –
Xmax12 mm −33%, worse
Sensitivity93.5 dB −1.2
Eighteen Sound18LW2500
No current priceFs34 Hz +17%, worse
Qts0.33 +94%, worse
Vas135 L –
BL30 T·m +23%, better
Xmax15 mm −17%, worse
Sensitivity94 dB −0.7
Eighteen Sound18NLW4000
No current priceFs34 Hz +17%, worse
Qts0.33 +94%, worse
Vas135 L –
BL30 T·m +23%, better
Xmax15 mm −17%, worse
Sensitivity94 dB −0.7
B&C18RBX100
No current priceFs42 Hz +45%, worse
Qts0.40 +135%, worse
Vas136 L –
BL22 T·m −10%
Xmax10 mm −44%, worse
Sensitivity95.9 dB +1.2
Eighteen Sound18NLW9000
No current priceFs32 Hz +10%, worse
Qts0.21 +24%, worse
Vas247 L +82%, worse
BL25 T·m –
Xmax14 mm −22%, worse
Sensitivity97.7 dB +3, better
Eighteen Sound18ID
No current priceFs40 Hz +38%, worse
Qts0.26 +53%, worse
Vas67 L −51%, better
BL24 T·m –
Xmax15.5 mm −14%, worse
Sensitivity94 dB −0.7
P.AudioC18-650EL-V4
No current priceFs35 Hz +21%, worse
Qts0.68 +298%, worse
Vas127.0 L −7%
BL22.1 T·m −9%
Xmax7 mm −61%, worse
Sensitivity90.9 dB −3.8, worse
