LF Driver18PZW series
B&C

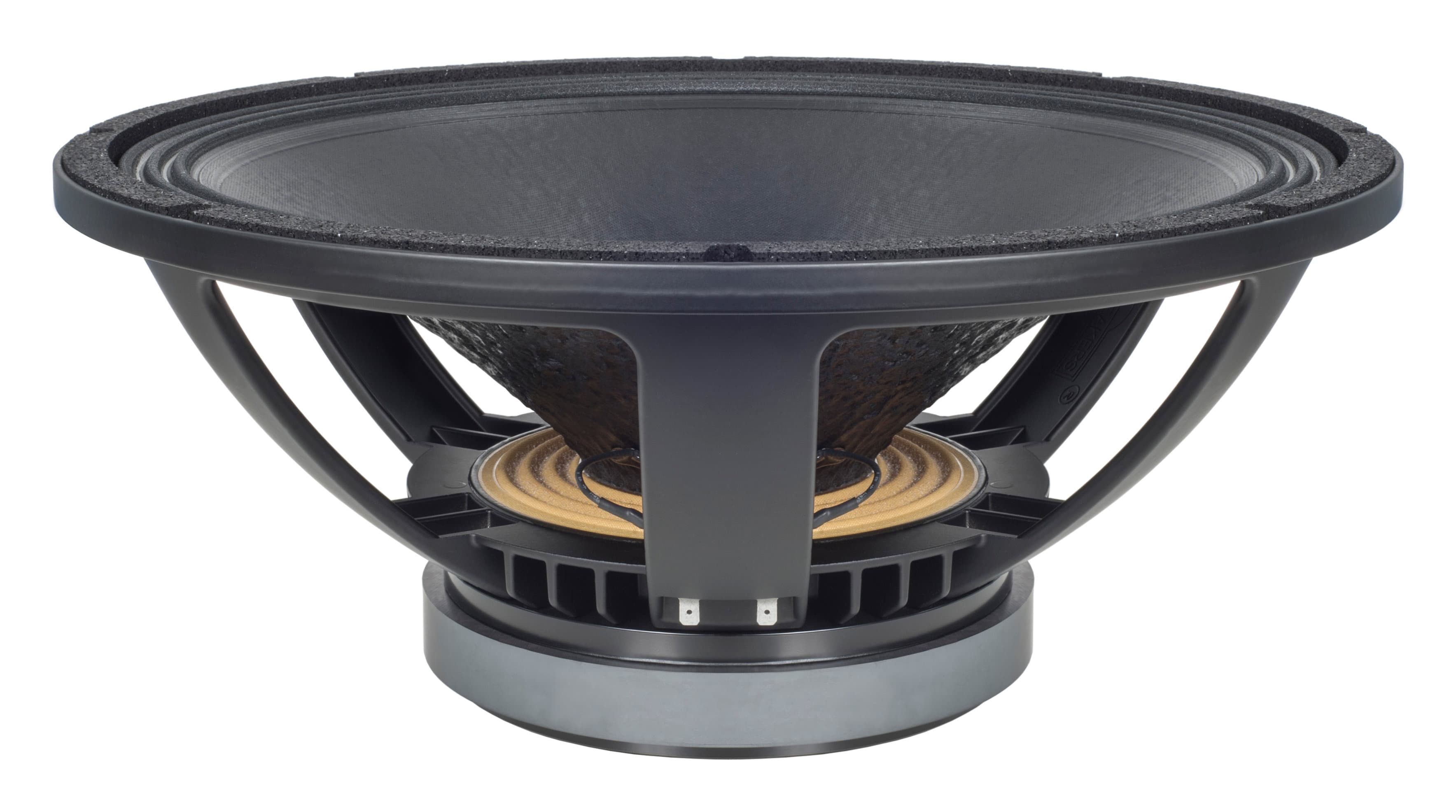

B&C 18PZW100
B&C 18PZW100 is a 18" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 37Hz, Qts 0.36, Vas 186L, Xmax 8mm, sensitivity 96dB, plus 968cm³ Vd and 97 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £229.99.
Size
18"
Impedance
8Ω
RMS Power
1000W
Sensitivity
96.0dB
97.6dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
97
Either alignment
Vd
968cm³

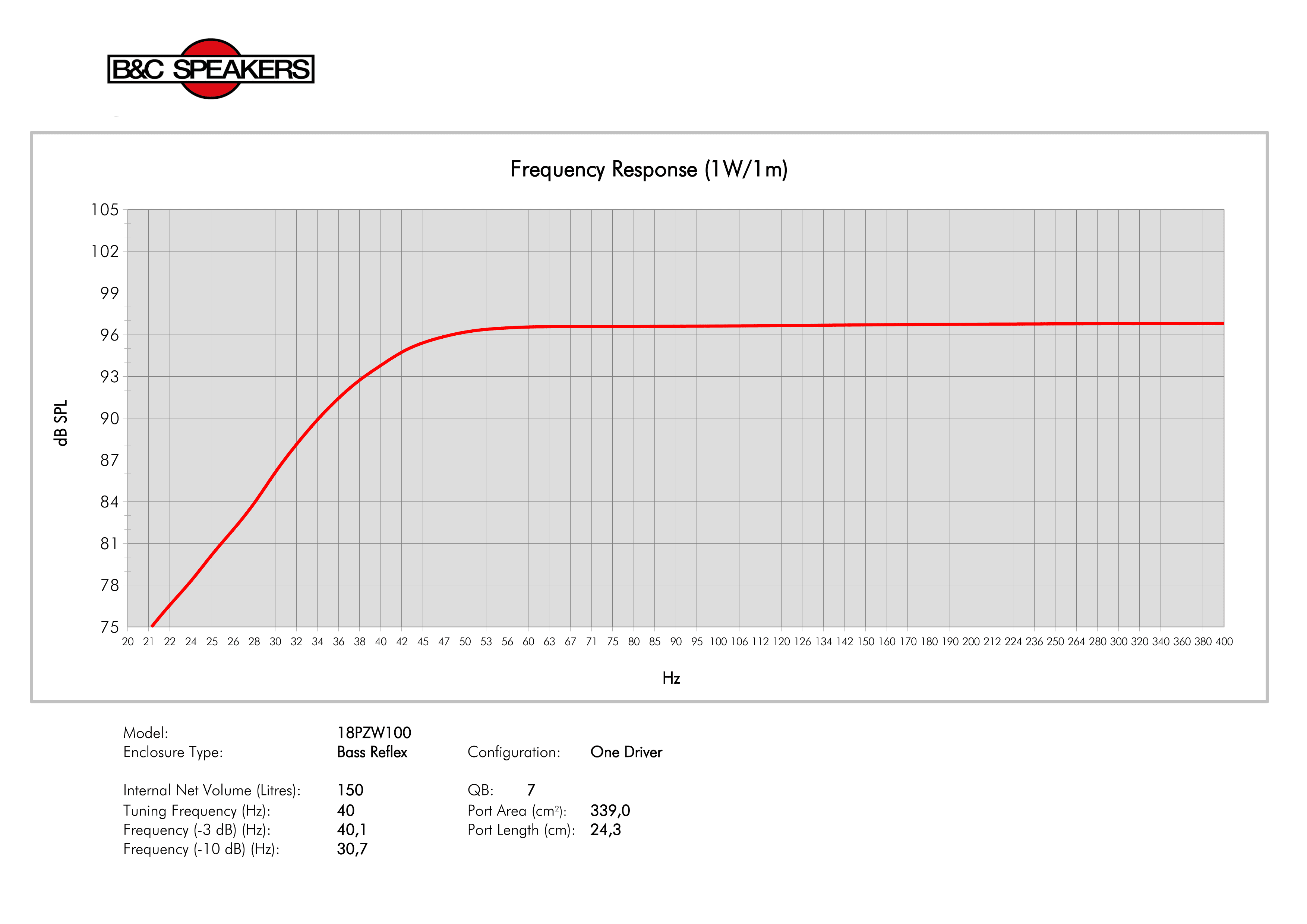

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs37Hz
Qts0.36
Qes0.38
Qms7.9
Vas186.0L
Re5.1Ω
Le1.58mH
BL25.5Tm
Sd1210cm²
Mms209g
Xmax8.0mm
SPL96dB
Power1000W
Power Nominal1000W
Impedance8Ω
Min Impedance6.2Ω
F Low37Hz
F High2000Hz
Voice Coil100mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Best current price
£229.99
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.3kg
Diameter460.0mm
Overall Depth202.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter440.0mm
Additional Manufacturer Specs
Bl25.5 Tm
Fs37 Hz
Le1.58 mH
Re5.1 Ω
Sd1210 cm² (187.55 in²)
Ebp97 Hz
Mms209 g
Qes0.38
Qms7.9
Qts0.36
Vas186 dm³ (6.57 ft³)
η02.32 %
ConeRCK18PZW1008
Xmax8 mm
Xvar10.5 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth21 mm (0.83 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter460 mm (18 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning40 Hz
Bolt Circle Diameter440 mm (17.32 in)
Recommended Enclosure150 dm³ (5.3 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter422 mm (16.61 in)
Flange And Gasket Thickness16 mm (0.65 in)
Air Volume Occupied By Driver9.5 dm³ (0.34 ft³)
