S18H
18" 2400W Horn Loaded Subwoofer Enclosure - 18" Subwoofer
- Drivers
- 18TBX100, 8 Ω
- Power
- 2,400 W
18-inch LF driver · 18TBX series · 100 mm voice coil · 1,200 W
B&C 18TBX100 8Ω
35–1000 Hz
- Fs
- 34Hz
- Xmax
- 9mm
- SPL
- 96dB
- Pe
- 1200W
- BL
- 25.5T·m
- Vd
- 1089cm³
- Qts
- 0.35
- Vas
- 212L

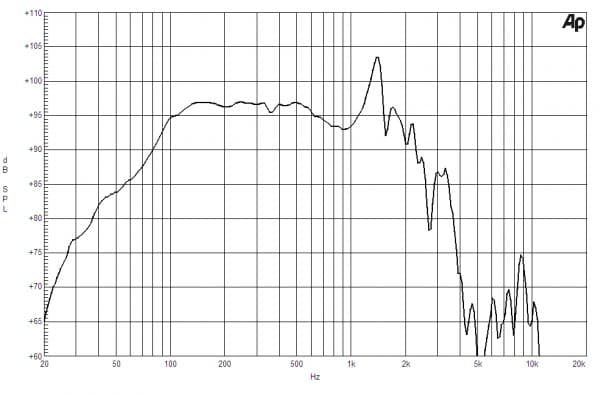

Published graphs
B&C 18TBX100 is an 18-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.35, Vas 212 L, Xmax 9 mm, sensitivity 95.6 dB, plus 1089 cm³ Vd and 92 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £186.94.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.35
- Qes
- 0.37
- Qms
- 7.2
- Vas
- 212L
- Re
- 5.1Ω
- Le
- 1.60mH
Motor and cone
- BL
- 25.5T·m
- Sd
- 1210cm²
- Mms
- 209g
- Xmax
- 9mm
- Vd †
- 1089cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.6dB
- Manufacturer sensitivity
- 97dB
- Power
- 1200W
- Nominal power
- 1200W
- Impedance
- 8Ω
- Min. impedance
- 6.2Ω
- Range
- 35–1000Hz
- EBP †
- 92 · Sealed or vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 209mm
- Weight
- 12.7kg
Sensitivity shows 95.6 dB, calculated from the T/S values. B&C publishes 97.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 25.5T·m
- Fs
- 34Hz
- Le
- 1.60mH
- Re
- 5.1Ω
- Sd
- 1210cm²
- Mms
- 209g
- Qes
- 0.37
- Qms
- 7.2
- Qts
- 0.35
- SPL
- 95.6dB
- Vas
- 212L
- Xmax
- 9mm
- Power
- 1200W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 97dB
- Low limit
- 35Hz
- Nominal power
- 1200W
- Calculated sensitivity †
- 95.6dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 97dB
- Min. impedance
- 6.2Ω
- Voice coil
- 100mm
- Weight
- 12.7kg
- Diameter
- 460mm
- Depth
- 209mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Bl
- 25.5 Tm
- Fs
- 34 Hz
- Le
- 1.6 mH
- Re
- 5.1 Ω
- Sd
- 1210 cm² (187.6 in²)
- Ebp
- 92 Hz
- Mms
- 209 g
- Qes
- 0.37
- Qms
- 7.2
- Qts
- 0.35
- Vas
- 212 dm³ (7.5 ft³)
- Η0
- 2.2 %
- Cone
- RCK18TBX1008
- Xmax
- 9 mm
- Xvar
- 11 mm
- Depth
- 209 mm (8.2 in)
- Spider
- Double Silicone
- Cone shape
- Radial
- Net weight
- 12.7 kg (28 lb)
- Pole design
- T-Pole
- Sensitivity
- 97 dB
- Flux density
- 1.1 T
- Shipping box
- 500x495x275 mm (19.69x19.49x10.83 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 35 Hz - 1000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 14.3 kg (31.53 lb)
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18 in)
- Winding material
- Copper
- Minimum impedance
- 6.2 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 12 mm (0.5 in)
- Recommended tuning
- 34 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 440 mm (17.3 in)
- Recommended enclosure
- 200 dm³ (7.06 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 422 mm (16.6 in)
- Nominal power handling
- 1200 W
- Continuous power handling
- 2400 W
- Flange and gasket thickness
- 16 mm (0.63 in)
- Air volume occupied by driver
- 10.5 dm³ (0.37 ft³)
02
Designs
Cabinets for the 18TBX100: a design and a suggested box from B&C, and plans builders have published.
All 18TBX100 designsHow we find designsB&C’s design
From the maker, with plans to download
B&C’s suggested box
From B&C’s 18TBX100 page
- Net volume
- 200L
- Tuning
- 34Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
