Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Overview
LF Driver
Eighteen Sound
Eighteen Sound 18NLW9601C
Eighteen Sound 18NLW9601C is a 18" 8 ohm LF driver rated at 1800W RMS. The validated T/S data includes Fs 38Hz, Qts 0.34, Vas 99L, Xmax 14mm, sensitivity 93.8dB, plus 1582cm³ Vd and 106 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £695.05.
Size
18"
Impedance
8Ω
RMS Power
1800W
Sensitivity
93.8dB
95.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
106
Vented alignment
Vd
1582cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response120 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

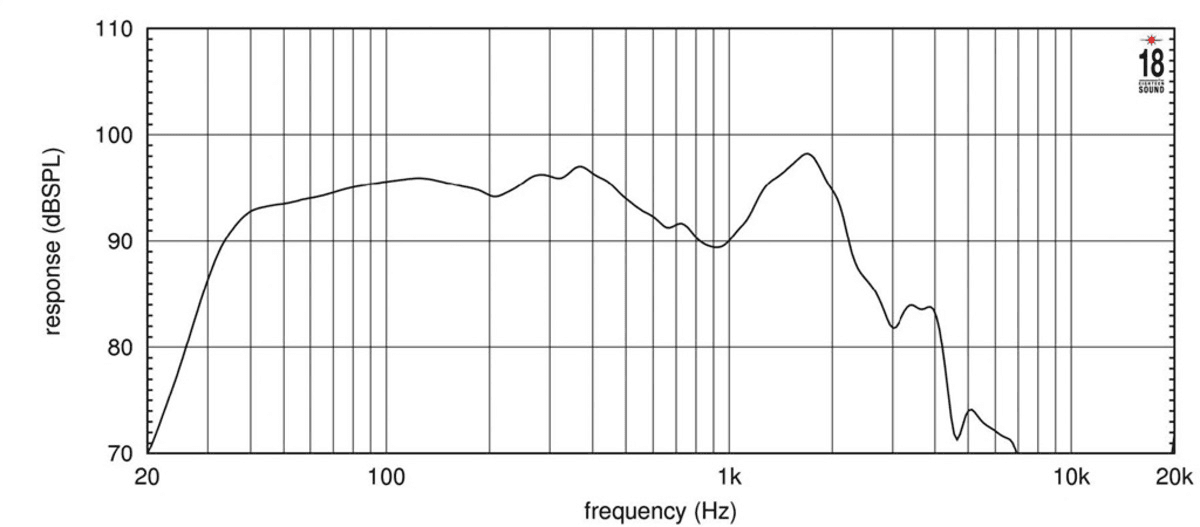

frequency response
Frequency response
120 plotted pointsMedium confidence607 selected pixels of 1,254 - Trace datasheet-response-trace-poc/v1

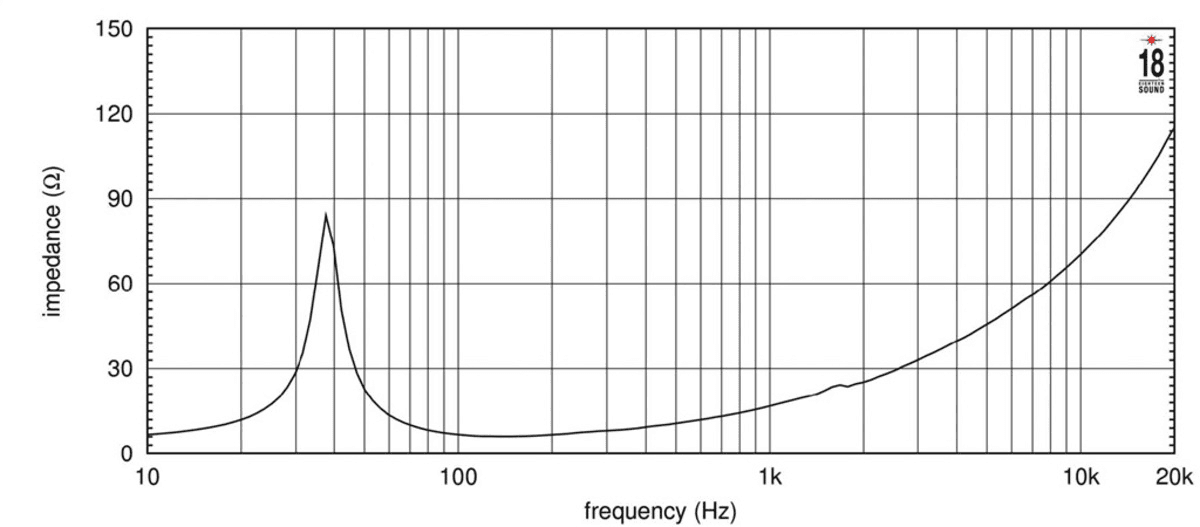

impedance
Impedance response
240 plotted pointsMedium confidence1,191 selected pixels of 1,500
T/S Parameters
Valid
Fs38Hz
Qts0.34
Qes0.36
Qms6.3
Vas99.0L
Re4.7Ω
Le1.80mH
BL31.7Tm
Sd1130cm²
Mms275g
Xmax14.0mm
SPL94dB
Power1800W
Power Nominal1800W
Impedance8Ω
F Low30Hz
F High2300Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£695.05
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.8kg
Diameter462.0mm
Overall Depth236.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter440.0mm
