Overview
LF Driver
CIARE
CIARE 18.00SW
CIARE 18.00SW is a 18" 8 ohm LF driver rated at 2000W RMS. The validated T/S data includes Fs 36Hz, Qts 0.50, Vas 93L, Xmax 14mm, sensitivity 91dB, plus 1588cm³ Vd and 65 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £304.00.
Size
18"
Impedance
8Ω
RMS Power
2000W
Sensitivity
91.0dB
EBP
65
Either alignment
Vd
1588cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,619 selected pixels of 2,118 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence1,954 selected pixels of 1,954
T/S Parameters
Valid
Fs36Hz
Qts0.50
Qes0.55
Qms6.7
Vas93.0L
Re7.0Ω
Le3.00mH
BL32.5Tm
Sd1134cm²
Mms377g
Xmax14.0mm
SPL91dB
Power2000W
Power Nominal1000W
Impedance8Ω
F Low20Hz
F High200Hz
Voice Coil100mm
Pricing & availability
Price definitionsPrice movement
Best current price
£304.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight15.7kg
Diameter460.0mm
Overall Depth210.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter440.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
18.00SW
18"
Best current price
£304.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity

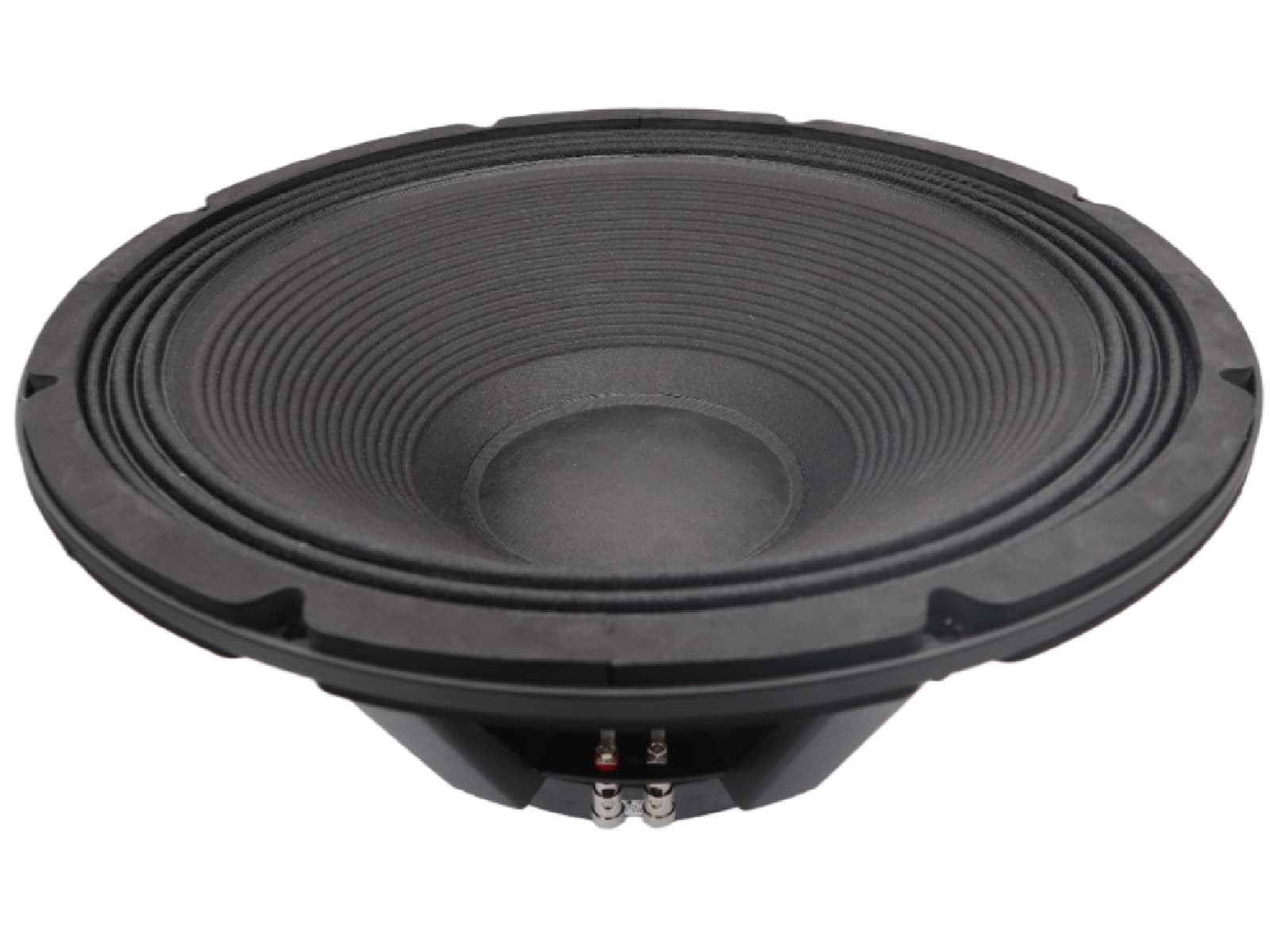

Peerless
FCP-1840R03-08
18"
Xmax12.3mm-12%
Qts0.47-6%
BL26.8Tm-18%
Vas128L+38%
Qes0.49-12%
