- Net volume
- 120L
- Tuning
- 40Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
18-inch LF driver · 1,800 W
Eighteen Sound 18NTLS5000 4Ω
4 Ω · 35–4000 Hz
£665.00
SteadyLean Audio · 2 in stock · All 2 offers
- Fs
- 37Hz
- Xmax
- 17.8mm
- SPL
- 92dB
- Pe
- 1800W
- BL
- 30.7T·m
- Vd
- 2174cm³
- Qts
- 0.33
- Vas
- 75L

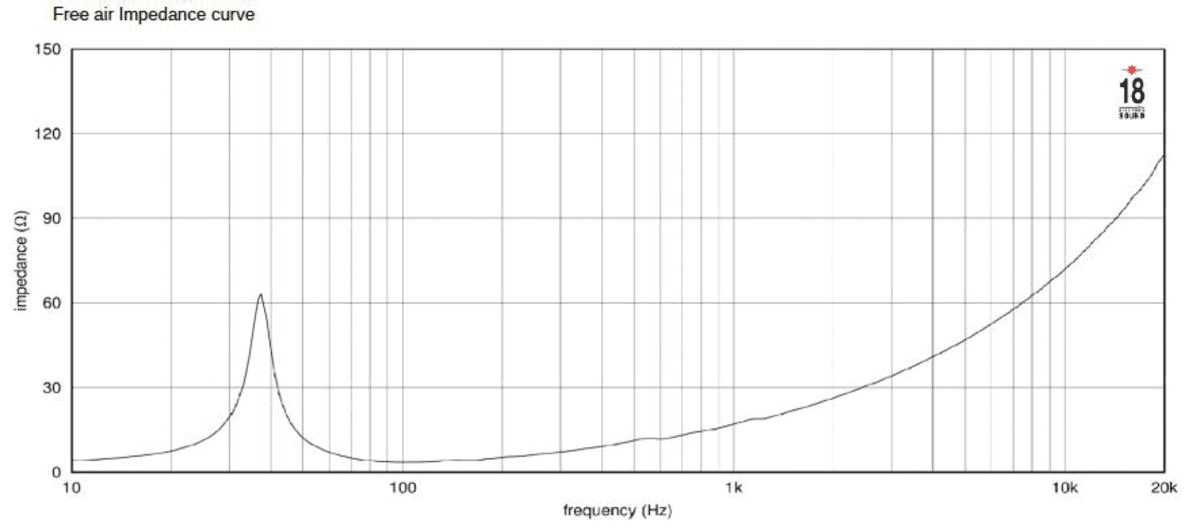

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

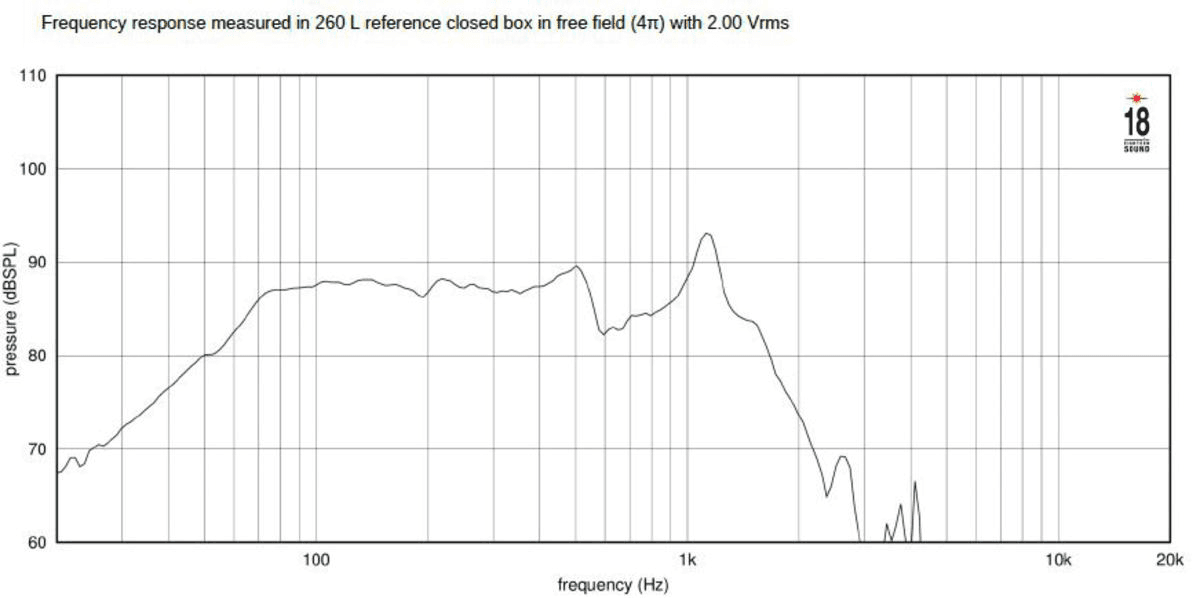

Frequency response
240 plotted pointsMedium confidence8,414 selected pixels of 8,552
Published graphs
Eighteen Sound 18NTLS5000 is an 18-inch 4 ohm LF driver rated at 1800 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.33, Vas 75 L, Xmax 17.8 mm, sensitivity 92.4 dB, plus 2174 cm³ Vd and 106 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £665.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 8.4
- Vas
- 75L
- Re
- 2.7Ω
- Le
- 2mH
Motor and cone
- BL
- 30.7T·m
- Sd
- 1225cm²
- Mms
- 510g
- Xmax
- 17.8mm
- Vd †
- 2174cm³
Power and response
- Sensitivity †
- 92.4dB
- Manufacturer sensitivity
- 89dB
- Power
- 1800W
- Nominal power
- 1800W
- Impedance
- 4Ω
- Range
- 35–4000Hz
- EBP †
- 106 · Leans vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 417mm
- Bolt circle
- 440mm
- Depth
- 330mm
- Weight
- 13.6kg
Other published values
- Power Program
- 3600
Sensitivity shows 92.4 dB, calculated from the T/S values. Eighteen Sound publishes 89.0 dB, 3.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 30.7T·m
- Fs
- 37Hz
- Le
- 2mH
- Re
- 2.7Ω
- Sd
- 1225cm²
- Mms
- 510g
- Qes
- 0.35
- Qms
- 8.4
- Qts
- 0.33
- SPL
- 92.4dB
- Vas
- 75L
- Xmax
- 17.8mm
- Power
- 1800W
- Impedance
- 4Ω
- Sensitivity
- 89dB
- Low limit
- 35Hz
- Nominal power
- 1800W
- Power Program
- 3600
- Calculated sensitivity †
- 92.4dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 89dB
- Weight
- 13.6kg
- Diameter
- 462mm
- Depth
- 330mm
- Cutout
- 417mm
- Bolt circle
- 440mm
02
Designs
What Eighteen Sound suggests for the 18NTLS5000. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 18NTLS5000 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18NTLS5000. Clear differences are green when better and red when worse.
This driver18NTLS5000
Best price
£665.00
Fs
37 Hz
Qts
0.33
Vas
75 L
BL
30.7 T·m
Xmax
17.8 mm
Sensitivity
92.4 dB
Power
1800 W
RCFL18P300
£225.00 · 66% less, betterFs33 Hz −11%, better
Qts0.33 –
Vas226 L +201%, worse
BL23.5 T·m −23%, worse
Xmax8 mm −55%, worse
Sensitivity95.8 dB +3.4, better
Beyma18P1000FEV2S
£249.00 · 63% less, betterFs33 Hz −11%, better
Qts0.32 −3%
Vas230 L +207%, worse
BL26.8 T·m −13%, worse
Xmax8 mm −55%, worse
Sensitivity96 dB +3.6, better
Beyma18LEX1200ND
£279.79 · 58% less, betterFs36 Hz –
Qts0.33 –
Vas219 L +192%, worse
BL26.4 T·m −14%, worse
Xmax11 mm −38%, worse
Sensitivity96.7 dB +4.3, better
Dayton Audio18SW1200N-8
£301.39 · 55% less, betterFs32 Hz −14%, better
Qts0.33 –
Vas253.6 L +238%, worse
BL27.6 T·m −10%, worse
Xmax9.1 mm −49%, worse
Sensitivity95.8 dB +3.4, better
RCFLF18N405
£325.54 · 51% less, betterFs30 Hz −19%, better
Qts0.32 −3%
Vas227 L +203%, worse
BL26.5 T·m −14%, worse
Xmax14 mm −21%, worse
Sensitivity94.6 dB +2.2, better
SB AudienceNERO-18SW1100D
£334.88 · 50% less, betterFs36 Hz –
Qts0.33 –
Vas153.1 L +104%, worse
BL30.9 T·m –
Xmax12.2 mm −31%, worse
Sensitivity95.3 dB +2.9, better
CelestionTSQ1845
£380.98 · 43% less, betterFs35 Hz −5%
Qts0.29 −12%, better
Vas119.3 L +59%, worse
BL33.8 T·m +10%, better
Xmax15 mm −15%, worse
Sensitivity94.3 dB +1.9
Precision DevicesPD.1852/2
£397.00 · 40% less, betterFs42 Hz +13%, worse
Qts0.33 –
Vas120.4 L +61%, worse
BL30.5 T·m –
Xmax12 mm −32%, worse
Sensitivity96.2 dB +3.8, better
CelestionCF18VJD
£399.00 · 40% less, betterFs35 Hz −7%
Qts0.31 −6%
Vas145.8 L +94%, worse
BL32.6 T·m +6%
Xmax12 mm −32%, worse
Sensitivity94.6 dB +2.2, better
RCFLN19S400
£416.98 · 37% less, betterFs32 Hz −14%, better
Qts0.26 −21%, better
Vas204 L +172%, worse
BL32 T·m +4%
Xmax17 mm −4%
Sensitivity96 dB +3.6, better
FaitalPRO18XL2000
£420.00 · 37% less, betterFs28 Hz −24%, better
Qts0.27 −18%, better
Vas232.1 L +209%, worse
BL30.8 T·m –
Xmax16.3 mm −8%
Sensitivity94.6 dB +2.2, better
No photo
Precision DevicesPD.1845-2N
£422.00 · 37% less, betterFs35 Hz −5%
Qts0.39 +18%, worse
Vas157 L +109%, worse
BL27 T·m −12%, worse
Xmax18 mm –
Sensitivity94.3 dB +1.9
Dayton AudioRSS460HO-4
£442.94 · 33% less, betterFs19 Hz −49%, better
Qts0.32 −3%
Vas272 L +263%, worse
BL23.4 T·m −24%, worse
Xmax12.8 mm −28%, worse
Sensitivity89.2 dB −3.2, worse
Sica18 K 4 PL
£447.92 · 33% less, betterFs37 Hz –
Qts0.32 −3%
Vas201 L +168%, worse
BL26.8 T·m −13%, worse
Xmax6.5 mm −63%, worse
Sensitivity96.6 dB +4.2, better
BMS18N850V2
£457.13 · 31% less, betterFs30 Hz −19%, better
Qts0.33 –
Vas243 L +224%, worse
BL25.4 T·m −17%, worse
Xmax12 mm −32%, worse
Sensitivity94.7 dB +2.3, better
Eighteen Sound18NLW4500
£468.89 · 29% less, betterFs37 Hz –
Qts0.31 −6%
Vas127 L +69%, worse
BL26.7 T·m −13%, worse
Xmax14.8 mm −17%, worse
Sensitivity95.1 dB +2.7, better
FaitalPRO18XL1700
£469.00 · 29% less, betterFs28 Hz −24%, better
Qts0.28 −15%, better
Vas227 L +203%, worse
BL30.5 T·m –
Xmax16.2 mm −9%
Sensitivity94.4 dB +2, better
Eighteen Sound18NTLW5000
£550.00 · 17% less, betterFs32 Hz −14%, better
Qts0.30 −9%
Vas165 L +120%, worse
BL25 T·m −19%, worse
Xmax17.5 mm –
Sensitivity94.4 dB +2, better
BMS18N862
£568.53 · 15% less, betterFs25 Hz −32%, better
Qts0.34 +3%
Vas312 L +316%, worse
BL25.5 T·m −17%, worse
Xmax19 mm +7%
Sensitivity93.4 dB +1
B&C18HTX100
£809.86 · 22% more, worseFs44 Hz +19%, worse
Qts0.32 −3%
Vas173 L +131%, worse
BL26.3 T·m −14%, worse
Xmax13 mm −27%, worse
Sensitivity98.4 dB +6, better
Eighteen Sound18NLW9601C
No current priceFs38 Hz –
Qts0.34 +3%
Vas99 L +32%, worse
BL31.7 T·m +3%
Xmax14 mm −21%, worse
Sensitivity93.8 dB +1.4
Eighteen Sound18NLW4000
No current priceFs34 Hz −8%
Qts0.33 –
Vas135 L +80%, worse
BL30 T·m –
Xmax15 mm −15%, worse
Sensitivity94 dB +1.6
No photo
Precision DevicesPD.1845-1N
No current priceFs34 Hz −8%
Qts0.32 –
Vas179.0 L +139%, worse
BL26.4 T·m −14%, worse
Xmax16 mm −10%
Sensitivity95.3 dB +2.9, better
RCFLF18N408
No current priceFs30 Hz −19%, better
Qts0.33 –
Vas193 L +157%, worse
BL25.7 T·m −16%, worse
Xmax15 mm −15%, worse
Sensitivity93.6 dB +1.2
Oberton18NXB1600
No current priceFs32 Hz −13%, better
Qts0.30 −8%
Vas173.1 L +131%, worse
BL29.6 T·m −4%
Xmax13.5 mm −24%, worse
Sensitivity94.5 dB +2.1, better
REDCATT186FIND
No current priceFs33 Hz −11%, better
Qts0.35 +6%
Vas174.2 L +132%, worse
BL30.2 T·m –
Xmax8.4 mm −53%, worse
Sensitivity94.4 dB +2, better
FaneCOLOSSUS 18XB
No current priceFs33 Hz −11%, better
Qts0.34 –
Vas236 L +215%, worse
BL25.9 T·m −16%, worse
Xmax7.5 mm −58%, worse
Sensitivity95.8 dB +3.4, better
Eighteen Sound18ID
No current priceFs40 Hz +8%
Qts0.26 −21%, better
Vas67 L −11%, better
BL24 T·m −22%, worse
Xmax15.5 mm −13%, worse
Sensitivity94 dB +1.6
Oberton18XB1201
No current priceFs38 Hz –
Qts0.32 −4%
Vas159.4 L +112%, worse
BL26.7 T·m −13%, worse
Xmax10.5 mm −41%, worse
Sensitivity96.3 dB +3.9, better
Oberton18NXB700
No current priceFs36 Hz –
Qts0.31 −5%
Vas155.5 L +107%, worse
BL27.8 T·m −9%
Xmax9 mm −49%, worse
Sensitivity95.6 dB +3.2, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
