SB AudienceBIANCO-18SW500
£151.79 · 32% less, betterFs30 Hz −14%, better
Qts0.52 +8%
Vas334.8 L +42%, worse
BL19.8 T·m −9%
Xmax9.2 mm +15%, better
Sensitivity94.3 dB −0.8

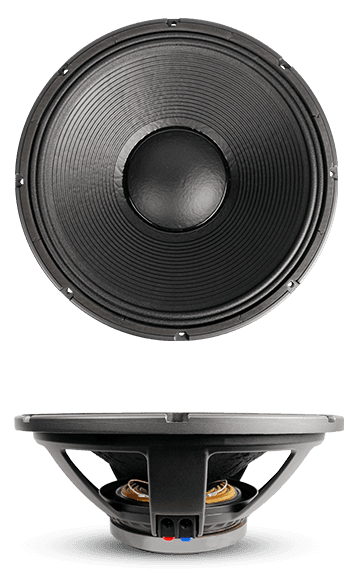

18-inch LF driver · 700 W
Beyma 18LX60V2S 8Ω
8 Ω · 25–1000 Hz
£222.84
0.5%Beyma Deutschland · 6 in stock · All 3 offers
- Fs
- 35Hz
- Xmax
- 8mm
- SPL
- 95dB
- Pe
- 700W
- BL
- 21.8T·m
- Vd
- 1056cm³
- Qts
- 0.48
- Vas
- 236L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,605 selected pixels of 4,446 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,555 selected pixels of 3,555
Published graphs
Beyma 18LX60V2S is an 18-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.48, Vas 236 L, Xmax 8 mm, sensitivity 95.1 dB, plus 1056 cm³ Vd and 70 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £222.84.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.48
- Qes
- 0.50
- Qms
- 15.7
- Vas
- 236L
- Re
- 5.1Ω
- Le
- 2.10mH
Motor and cone
- BL
- 21.8T·m
- Sd
- 1320cm²
- Mms
- 215g
- Xmax
- 8mm
- Vd †
- 1056cm³
Power and response
- Sensitivity †
- 95.1dB
- Manufacturer sensitivity
- 98dB
- Power
- 700W
- Impedance
- 8Ω
- Range
- 25–1000Hz
- EBP †
- 70 · Sealed or vented
Size and mounting
- Weight
- 11.2kg
Other published values
- Cms
- 0.09mm/N
- Rms
- 3.10kg/s
- Power Program
- 1400
Sensitivity shows 95.1 dB, calculated from the T/S values. Beyma publishes 98.0 dB, 2.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Beyma lists
LF · Primary · 18″
- BL
- 21.8T·m
- Fs
- 35Hz
- Le
- 2.10mH
- Re
- 5.1Ω
- Sd
- 1320cm²
- Cms
- 0.09mm/N
- Mms
- 215g
- Qes
- 0.50
- Qms
- 15.7
- Qts
- 0.48
- Rms
- 3.10kg/s
- SPL
- 95.1dB
- Vas
- 236L
- Xmax
- 8mm
- Power
- 700W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 25Hz
- Power Program
- 1400
- Calculated sensitivity †
- 95.1dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 11.2kg
02
Compare
Same-size drivers, compared with the 18LX60V2S. Clear differences are green when better and red when worse.
This driver18LX60V2S
Best price
£222.84
Fs
35 Hz
Qts
0.48
Vas
236 L
BL
21.8 T·m
Xmax
8 mm
Sensitivity
95.1 dB
Power
700 W
Beyma18WRS600
£185.00 · 17% less, betterFs30 Hz −14%, better
Qts0.47 –
Vas354 L +50%, worse
BL19 T·m −13%, worse
Xmax8.5 mm +6%
Sensitivity95 dB –
SB AudienceROSSO-18SW800
£187.71 · 16% less, betterFs33 Hz −6%
Qts0.46 −4%
Vas258.1 L +9%
BL21 T·m −4%
Xmax11.3 mm +42%, better
Sensitivity94.9 dB –
SB AudienceROSSO-18SW750
£200.80 · 10% less, betterFs36 Hz –
Qts0.43 −10%, better
Vas206.9 L −12%, better
BL23.3 T·m +7%
Xmax8.8 mm +10%, better
Sensitivity95.3 dB –
B&C18PS100
£203.40 · 9% less, betterFs30 Hz −14%, better
Qts0.39 −19%, better
Vas245 L +4%
BL22.5 T·m +3%
Xmax8 mm –
Sensitivity94.1 dB −1
RCFL18P300
£225.00 · Same priceFs33 Hz −6%
Qts0.33 −31%, better
Vas226 L −4%
BL23.5 T·m +8%
Xmax8 mm –
Sensitivity95.8 dB +0.7
CelestionFTR18-4080HDX
£237.20 · 6% more, worseFs39 Hz +12%, worse
Qts0.43 −11%, better
Vas174.9 L −26%, better
BL21.3 T·m –
Xmax10.1 mm +26%, better
Sensitivity95.6 dB +0.5
FaitalPRO18HP1010
£249.55 · 12% more, worseFs35 Hz –
Qts0.40 −17%, better
Vas240.1 L –
BL22 T·m –
Xmax9.8 mm +22%, better
Sensitivity95.9 dB +0.8
Precision DevicesPD.186/3
£266.00 · 19% more, worseFs34 Hz –
Qts0.52 +8%
Vas192.2 L −19%, better
BL22.2 T·m –
Xmax10.5 mm +31%, better
Sensitivity93.5 dB −1.6
FaitalPRO18HP1042
£292.28 · 31% more, worseFs38 Hz +9%
Qts0.41 −15%, better
Vas191.9 L −19%, better
BL24.5 T·m +12%, better
Xmax9 mm +13%, better
Sensitivity95.9 dB +0.8
BMS18S430V2
£316.72 · 42% more, worseFs31 Hz −11%, better
Qts0.34 −29%, better
Vas262 L +11%, worse
BL23.5 T·m +8%
Xmax8 mm –
Sensitivity95.4 dB –
BMS18N830V2
£347.59 · 56% more, worseFs31 Hz −11%, better
Qts0.37 −23%, better
Vas262 L +11%, worse
BL22.4 T·m –
Xmax8 mm –
Sensitivity95 dB –
Sica18 PF 4
£363.17 · 63% more, worseFs38 Hz +9%
Qts0.43 −10%, better
Vas147.3 L −38%, better
BL24.6 T·m +13%, better
Xmax8 mm –
Sensitivity94.4 dB −0.7
Beyma18LEX1600ND
£399.00 · 79% more, worseFs33 Hz −6%
Qts0.43 −10%, better
Vas231 L –
BL24.5 T·m +12%, better
Xmax14.5 mm +81%, better
Sensitivity94.7 dB –
P.Audio18FT-100SW
No current priceFs35 Hz –
Qts0.47 –
Vas222.9 L −6%
BL24.2 T·m +11%, better
Xmax7.5 mm −6%
Sensitivity94.8 dB –
P.AudioIMF
No current priceFs33 Hz −6%
Qts0.50 +4%
Vas240.1 L –
BL20.2 T·m −8%
Xmax7.5 mm −6%
Sensitivity93.7 dB −1.4
REDCATT18FIND-2
No current priceFs34 Hz –
Qts0.46 −4%
Vas221 L −6%
BL21.3 T·m –
Xmax5.8 mm −27%, worse
Sensitivity94.5 dB −0.6
No photo
PHL Audio7081
No current priceFs34 Hz –
Qts0.41 −15%, better
Vas267.6 L +13%, worse
BL22.7 T·m +4%
Xmax7.5 mm −6%
Sensitivity95.8 dB +0.7
P.Audio18BM-1000S
No current priceFs35 Hz –
Qts0.40 −17%, better
Vas212.1 L −10%, better
BL23.8 T·m +9%
Xmax8 mm –
Sensitivity95.3 dB –
PRV Audio18SW2000
No current priceFs32 Hz −8%
Qts0.45 −6%
Vas289.9 L +23%, worse
BL22.1 T·m –
Xmax9.6 mm +20%, better
Sensitivity95.2 dB –
P.Audio18NT-100SW
No current priceFs35 Hz –
Qts0.48 –
Vas144.6 L −39%, better
BL25.2 T·m +16%, better
Xmax9 mm +13%, better
Sensitivity93 dB −2.1, worse
P.Audio19FT-115XB
No current priceFs34 Hz –
Qts0.45 −6%
Vas233 L –
BL26.8 T·m +23%, better
Xmax9.5 mm +19%, better
Sensitivity94.9 dB –
Sica18 S 4 PL
No current priceFs36 Hz +3%
Qts0.39 −19%, better
Vas189 L −20%, better
BL23.5 T·m +8%
Xmax8 mm –
Sensitivity95.3 dB –
MonacorFTR18-4080HDX/8
No current priceFs39 Hz +12%, worse
Qts0.43 −11%, better
Vas174.9 L −26%, better
BL21.3 T·m –
Xmax10.1 mm +26%, better
Sensitivity95.6 dB +0.5
P.Audio18BMA-1200S
No current priceFs39 Hz +11%, worse
Qts0.52 +8%
Vas141.5 L −40%, better
BL24 T·m +10%, better
Xmax6.8 mm −15%, worse
Sensitivity93.9 dB −1.2
P.AudioC18-650EL-V3
No current priceFs41 Hz +17%, worse
Qts0.52 +8%
Vas179.1 L −24%, better
BL21.5 T·m –
Xmax5.3 mm −34%, worse
Sensitivity95.5 dB –
Oberton18B450
No current priceFs34 Hz –
Qts0.34 −29%, better
Vas241.6 L –
BL22.1 T·m –
Xmax7.3 mm −9%
Sensitivity96.4 dB +1.3
P.Audio19FT-125XB
No current priceFs33 Hz −6%
Qts0.45 −6%
Vas207.9 L −12%, better
BL29.2 T·m +34%, better
Xmax9.3 mm +16%, better
Sensitivity94 dB −1.1
P.AudioC18-1000-V4
No current priceFs35 Hz –
Qts0.56 +16%, worse
Vas183.7 L −22%, better
BL22.5 T·m +3%
Xmax9.5 mm +19%, better
Sensitivity93.4 dB −1.7
FaneIMPERIUM 18XL
No current priceFs36 Hz –
Qts0.53 +10%, worse
Vas205 L −13%, better
BL20.4 T·m −7%
Xmax10.5 mm +31%, better
Sensitivity94.4 dB −0.7
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Beyma Deutschland | £222.84, the lowest price | 6 in stock | Visit shop at Beyma Deutschland | |
Blue Aran 3-5 weeks | £221.68 | Usually available in 3-5 weeks | Visit shop at Blue Aran | |
SoundImports | £243.53 | 9.3% above the lowest price | 1 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
Recent changes
- 13 SepSoundImports£239.25 → £243.53Up 1.8% from £239.25
