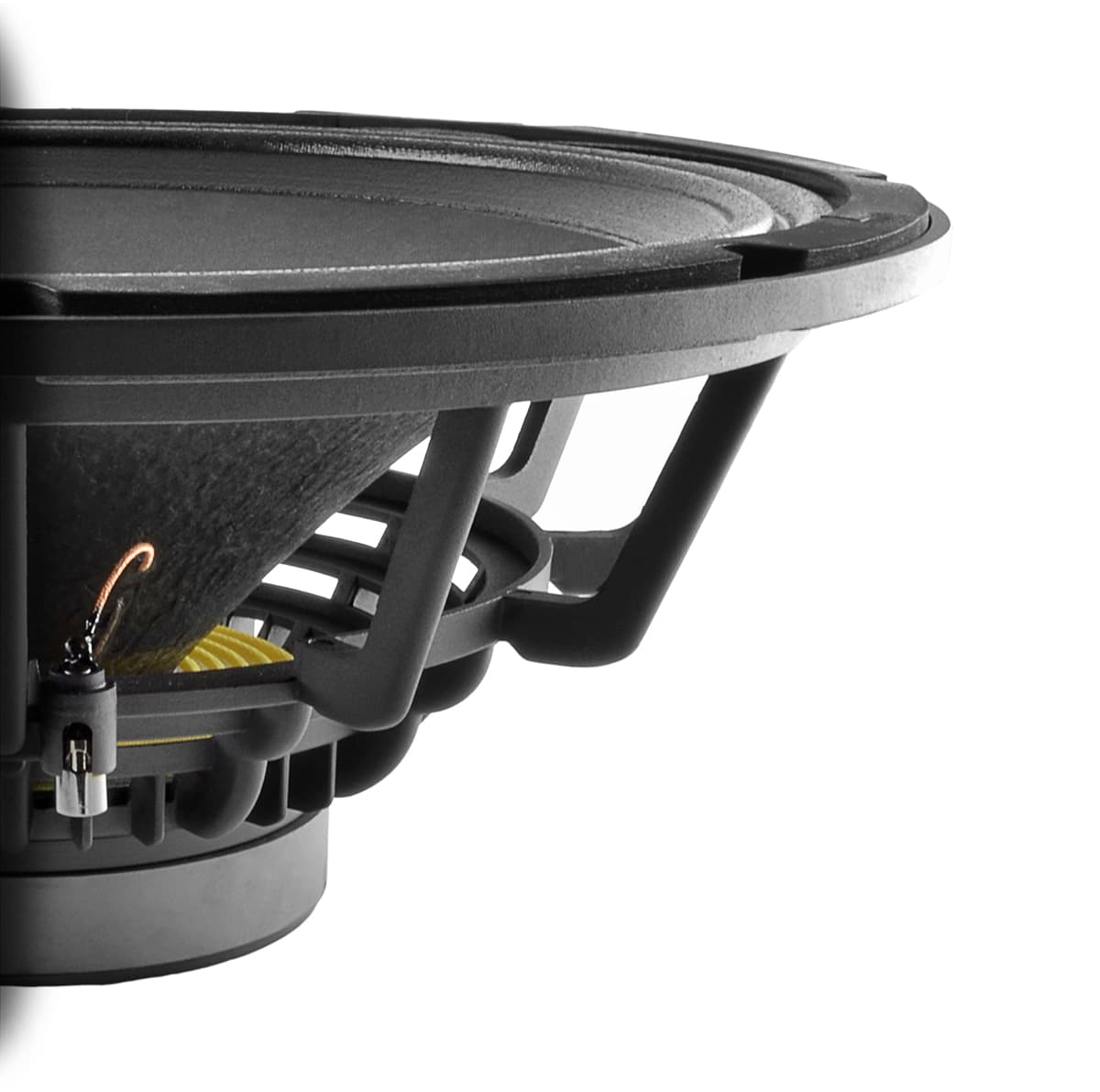

Sica 18 F 3 CP 8Ω
8 Ω
No current price
- Fs
- 32Hz
- Xmax
- 6.5mm
- SPL
- 95dB
- Pe
- 500W
- BL
- 17.2T·m
- Vd
- 757cm³
- Qts
- 0.44
- Vas
- 321L
Sica 18 F 3 CP is an 18-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.44, Vas 321 L, Xmax 6.5 mm, sensitivity 94.9 dB, plus 757 cm³ Vd and 61 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.44
- Qes
- 0.52
- Qms
- 3.1
- Vas
- 321L
- Re
- 5.1Ω
- Le
- 1.41mH
Motor and cone
- BL
- 17.2T·m
- Sd
- 1164cm²
- Mms
- 152g
- Xmax
- 6.5mm
- Vd †
- 757cm³
- Voice coil
- 75mm
- Flux density
- 1.08T
Power and response
- Sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 96.9dB
- Power
- 500W
- Impedance
- 8Ω
- EBP †
- 61 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 196.5mm
- Weight
- 8.6kg
Other published values
- Cms
- 0.17mm/N
- Power Program
- 1000
Sensitivity shows 94.9 dB, calculated from the T/S values. Sica publishes 96.9 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Sica lists
LF · Primary · 18″
- BL
- 17.2T·m
- Fs
- 32Hz
- Le
- 1.41mH
- Re
- 5.1Ω
- Sd
- 1164cm²
- Cms
- 0.17mm/N
- Mms
- 152g
- Qes
- 0.52
- Qms
- 3.1
- Qts
- 0.44
- SPL
- 94.9dB
- Vas
- 321L
- Xmax
- 6.5mm
- Power
- 500W
- Impedance
- 8Ω
- Flux density
- 1.08T
- Sensitivity
- 96.9dB
- Power Program
- 1000
- Calculated sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 96.9dB
- Voice coil
- 75mm
- Weight
- 8.6kg
- Diameter
- 462mm
- Depth
- 196.5mm
- Cutout
- 417mm
- Bolt circle
- 441mm
