Eighteen Sound design
18’’ horn loaded subwoofer
- Drivers
- 18TLW3000or 18LW2500or 18LW2400
18-inch LF driver · 1,600 W
Eighteen Sound 18LW2500 4Ω
30–1000 Hz
No current price
- Fs
- 35Hz
- Xmax
- 14mm
- SPL
- 93dB
- Pe
- 1600W
- BL
- 20T·m
- Vd
- 1582cm³
- Qts
- 0.44
- Vas
- 135L

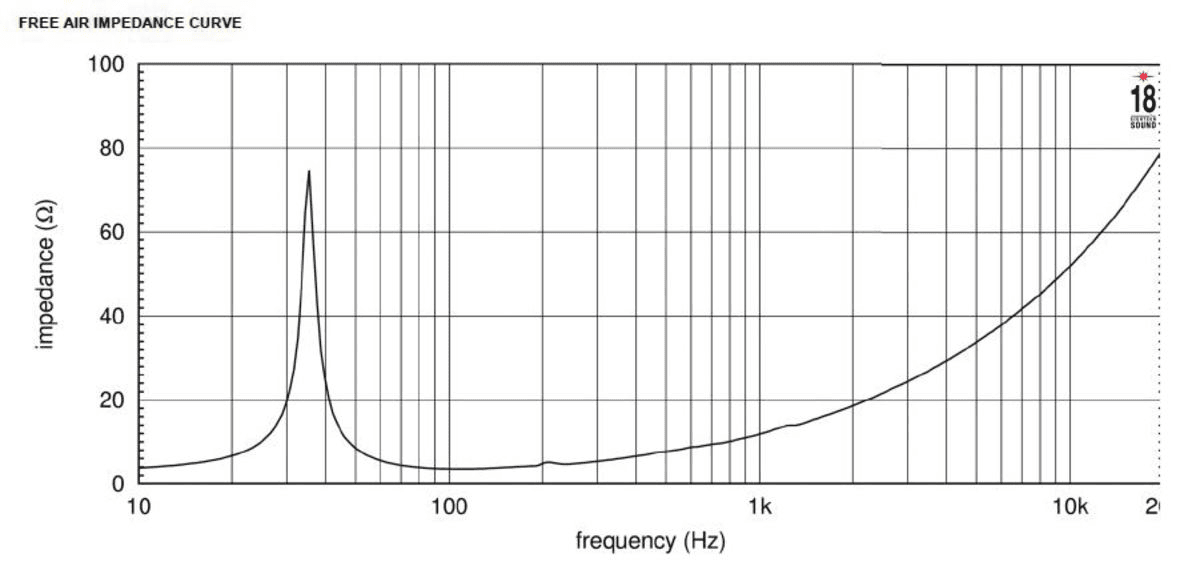

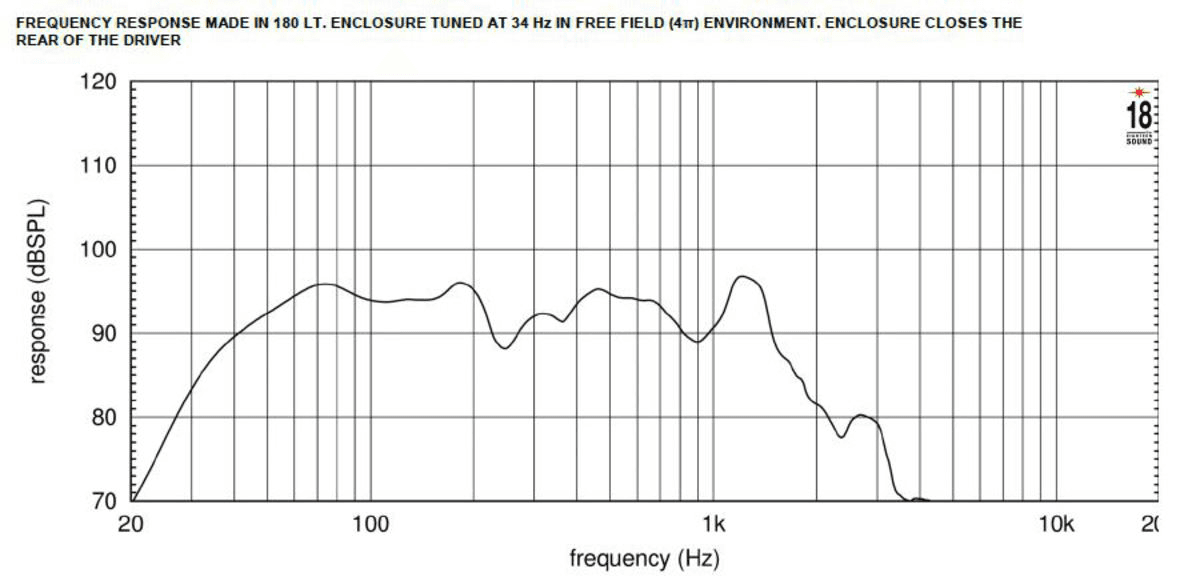

Published graphs
Eighteen Sound 18LW2500 is an 18-inch 4 ohm LF driver rated at 1600 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.44, Vas 135 L, Xmax 14 mm, sensitivity 93.1 dB, plus 1582 cm³ Vd and 78 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.44
- Qes
- 0.45
- Qms
- 18.4
- Vas
- 135L
- Re
- 2.6Ω
- Le
- 1.80mH
Motor and cone
- BL
- 20T·m
- Sd
- 1130cm²
- Mms
- 290g
- Xmax
- 14mm
- Vd †
- 1582cm³
Power and response
- Sensitivity †
- 93.1dB
- Manufacturer sensitivity
- 95dB
- Power
- 1600W
- Nominal power
- 1600W
- Impedance
- 4Ω
- Range
- 30–1000Hz
- EBP †
- 78 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 440mm
- Depth
- 234mm
- Weight
- 16.7kg
Other published values
- Power Program
- 3200
Sensitivity shows 93.1 dB, calculated from the T/S values. Eighteen Sound publishes 95.0 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 20T·m
- Fs
- 35Hz
- Le
- 1.80mH
- Re
- 2.6Ω
- Sd
- 1130cm²
- Mms
- 290g
- Qes
- 0.45
- Qms
- 18.4
- Qts
- 0.44
- SPL
- 93.1dB
- Vas
- 135L
- Xmax
- 14mm
- Power
- 1600W
- Impedance
- 4Ω
- Sensitivity
- 95dB
- Low limit
- 30Hz
- Nominal power
- 1600W
- Power Program
- 3200
- Calculated sensitivity †
- 93.1dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 16.7kg
- Diameter
- 462mm
- Depth
- 234mm
- Cutout
- 416mm
- Bolt circle
- 440mm
02
Designs
Cabinets for the 18LW2500: two designs and a suggested box from Eighteen Sound.
All 18LW2500 designsHow we find designsEighteen Sound’s designs
From the maker, with plans to download
Eighteen Sound design
Single 18” subwoofer
- Drivers
- 18TLW3000or 18LW2500or 18NLW4000or 18LW2400or 18LW1400
Eighteen Sound’s suggested box
From Eighteen Sound’s 18LW2500 page
- Net volume
- 200L
- Tuning
- 35Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18LW2500. Clear differences are green when better and red when worse.
This driver18LW2500
Best price
–
Fs
35 Hz
Qts
0.44
Vas
135 L
BL
20 T·m
Xmax
14 mm
Sensitivity
93.1 dB
Power
1600 W
REDCATT183FIND
£122.50Fs32 Hz −9%
Qts0.42 −5%
Vas329.5 L +144%, worse
BL21.1 T·m +6%
Xmax5.9 mm −58%, worse
Sensitivity96 dB +2.9, better
SB AudienceBIANCO-18SW450
£135.53Fs28 Hz −20%, better
Qts0.45 –
Vas370.4 L +174%, worse
BL18.8 T·m −6%
Xmax10.9 mm −22%, worse
Sensitivity94.4 dB +1.3
SB AudienceROSSO-18SW800
£187.71Fs33 Hz −6%
Qts0.46 +5%
Vas258.1 L +91%, worse
BL21 T·m +5%
Xmax11.3 mm −19%, worse
Sensitivity94.9 dB +1.8
SB AudienceROSSO-18SW750
£200.80Fs36 Hz –
Qts0.43 –
Vas206.9 L +53%, worse
BL23.3 T·m +17%, better
Xmax8.8 mm −37%, worse
Sensitivity95.3 dB +2.2, better
CelestionFTR18-4080HDX
£237.20Fs39 Hz +12%, worse
Qts0.43 –
Vas174.9 L +30%, worse
BL21.3 T·m +6%
Xmax10.1 mm −28%, worse
Sensitivity95.6 dB +2.5, better
CelestionCF1840JD
£239.00Fs37 Hz +6%
Qts0.40 −10%
Vas155 L +15%, worse
BL24.8 T·m +24%, better
Xmax12.5 mm −11%, worse
Sensitivity94.6 dB +1.5
SB AudienceROSSO-18SW650
£244.95Fs31 Hz −11%, better
Qts0.41 −7%
Vas304.3 L +125%, worse
BL20.6 T·m +3%
Xmax11.2 mm −20%, worse
Sensitivity95.2 dB +2.1, better
FaitalPRO18HP1030
£269.00Fs35 Hz –
Qts0.41 −7%
Vas185.5 L +37%, worse
BL24.3 T·m +22%, better
Xmax12.4 mm −11%, worse
Sensitivity94.7 dB +1.6
FaitalPRO18FX800
£277.94Fs34 Hz –
Qts0.40 −9%
Vas247 L +83%, worse
BL24 T·m +20%, better
Xmax13.8 mm –
Sensitivity95.6 dB +2.5, better
MonacorCF1840JD/4
£286.39Fs37 Hz +6%
Qts0.40 −10%
Vas155 L +15%, worse
BL24.8 T·m +24%, better
Xmax12.5 mm −11%, worse
Sensitivity94.6 dB +1.5
MonacorCF1840JD/8
£286.39Fs37 Hz +6%
Qts0.40 −10%
Vas155 L +15%, worse
BL24.8 T·m +24%, better
Xmax12.5 mm −11%, worse
Sensitivity94.6 dB +1.5
SB AudienceROSSO-18SW1000D
£312.54Fs35 Hz –
Qts0.46 +5%
Vas164.3 L +22%, worse
BL25.8 T·m +29%, better
Xmax13.7 mm –
Sensitivity93.6 dB +0.5
B&C18SW100
£336.23Fs36 Hz –
Qts0.36 −18%, better
Vas160 L +19%, worse
BL22 T·m +10%, better
Xmax12.5 mm −11%, worse
Sensitivity94.7 dB +1.6
Eighteen Sound18TLW3000
£340.46Fs32 Hz −9%
Qts0.35 −20%, better
Vas185 L +37%, worse
BL20 T·m –
Xmax12 mm −14%, worse
Sensitivity94.3 dB +1.2
Sica18 PF 4
£359.00Fs38 Hz +9%
Qts0.43 –
Vas147.3 L +9%
BL24.6 T·m +23%, better
Xmax8 mm −43%, worse
Sensitivity94.4 dB +1.3
SB AudienceNERO-18SW1900D
£397.02Fs34 Hz –
Qts0.42 −5%
Vas157.9 L +17%, worse
BL28.5 T·m +43%, better
Xmax17.5 mm +25%, better
Sensitivity93.6 dB +0.5
Beyma18LEX1600ND
£399.00Fs33 Hz −6%
Qts0.43 –
Vas231 L +71%, worse
BL24.5 T·m +23%, better
Xmax14.5 mm +4%
Sensitivity94.7 dB +1.6
PeerlessFCP-1840R02-08
No current priceFs39 Hz +11%, worse
Qts0.43 –
Vas156 L +16%, worse
BL26.2 T·m +31%, better
Xmax13.5 mm −4%
Sensitivity95.2 dB +2.1, better
MonacorFTR18-4080HDX/8
No current priceFs39 Hz +12%, worse
Qts0.43 –
Vas174.9 L +30%, worse
BL21.3 T·m +6%
Xmax10.1 mm −28%, worse
Sensitivity95.6 dB +2.5, better
B&C18RBX100
No current priceFs42 Hz +20%, worse
Qts0.40 −9%
Vas136 L –
BL22 T·m +10%, better
Xmax10 mm −29%, worse
Sensitivity95.9 dB +2.8, better
PeerlessFCP-1840R03-08
No current priceFs41 Hz +17%, worse
Qts0.47 +7%
Vas128 L −5%
BL26.8 T·m +34%, better
Xmax12.3 mm −12%, worse
Sensitivity94.6 dB +1.5
CIARECSD184-22
No current priceFs37 Hz +6%
Qts0.53 +20%, worse
Vas141 L +4%
BL18.5 T·m −7%
Xmax13 mm −7%
Sensitivity92.9 dB –
P.Audio18NT-115XB
No current priceFs33 Hz −6%
Qts0.44 –
Vas112.7 L −17%, better
BL29.0 T·m +45%, better
Xmax9.8 mm −30%, worse
Sensitivity91.6 dB −1.5
BishopSoundBDP18/4
No current priceFs39 Hz +11%, worse
Qts0.40 −10%
Vas183.3 L +36%, worse
BL17.1 T·m −15%, worse
Xmax11.3 mm −19%, worse
Sensitivity96.2 dB +3.1, better
CelestionFTR18-4080FDX
No current priceFs37 Hz +7%
Qts0.41 −6%
Vas160.7 L +19%, worse
BL25.1 T·m +26%, better
Xmax6 mm −57%, worse
Sensitivity94.9 dB +1.8
Precision DevicesPD.185C001
No current priceFs32 Hz −9%
Qts0.40 −8%
Vas302 L +124%, worse
BL21 T·m +5%
Xmax10.5 mm −25%, worse
Sensitivity95.7 dB +2.6, better
P.Audio18NT-100XB
No current priceFs35 Hz –
Qts0.41 −7%
Vas171.3 L +27%, worse
BL24.6 T·m +23%, better
Xmax7 mm −50%, worse
Sensitivity94.4 dB +1.3
PRV Audio18SW2000
No current priceFs32 Hz −8%
Qts0.45 –
Vas289.9 L +115%, worse
BL22.1 T·m +11%, better
Xmax9.6 mm −31%, worse
Sensitivity95.2 dB +2.1, better
CIARE18.00SW
No current priceFs36 Hz –
Qts0.61 +39%, worse
Vas94 L −30%, better
BL20 T·m –
Xmax14 mm –
Sensitivity90 dB −3.1, worse
P.Audio18NT-100SW
No current priceFs35 Hz –
Qts0.48 +9%
Vas144.6 L +7%
BL25.2 T·m +26%, better
Xmax9 mm −36%, worse
Sensitivity93 dB –
