18-inch LF driver · FCP series · 800 W
Peerless FCP-1840R02-08 8Ω
8 Ω
No current price
- Fs
- 39Hz
- Xmax
- 13.5mm
- SPL
- 95dB
- Pe
- 800W
- BL
- 26.2T·m
- Vd
- 1647cm³
- Qts
- 0.43
- Vas
- 156L

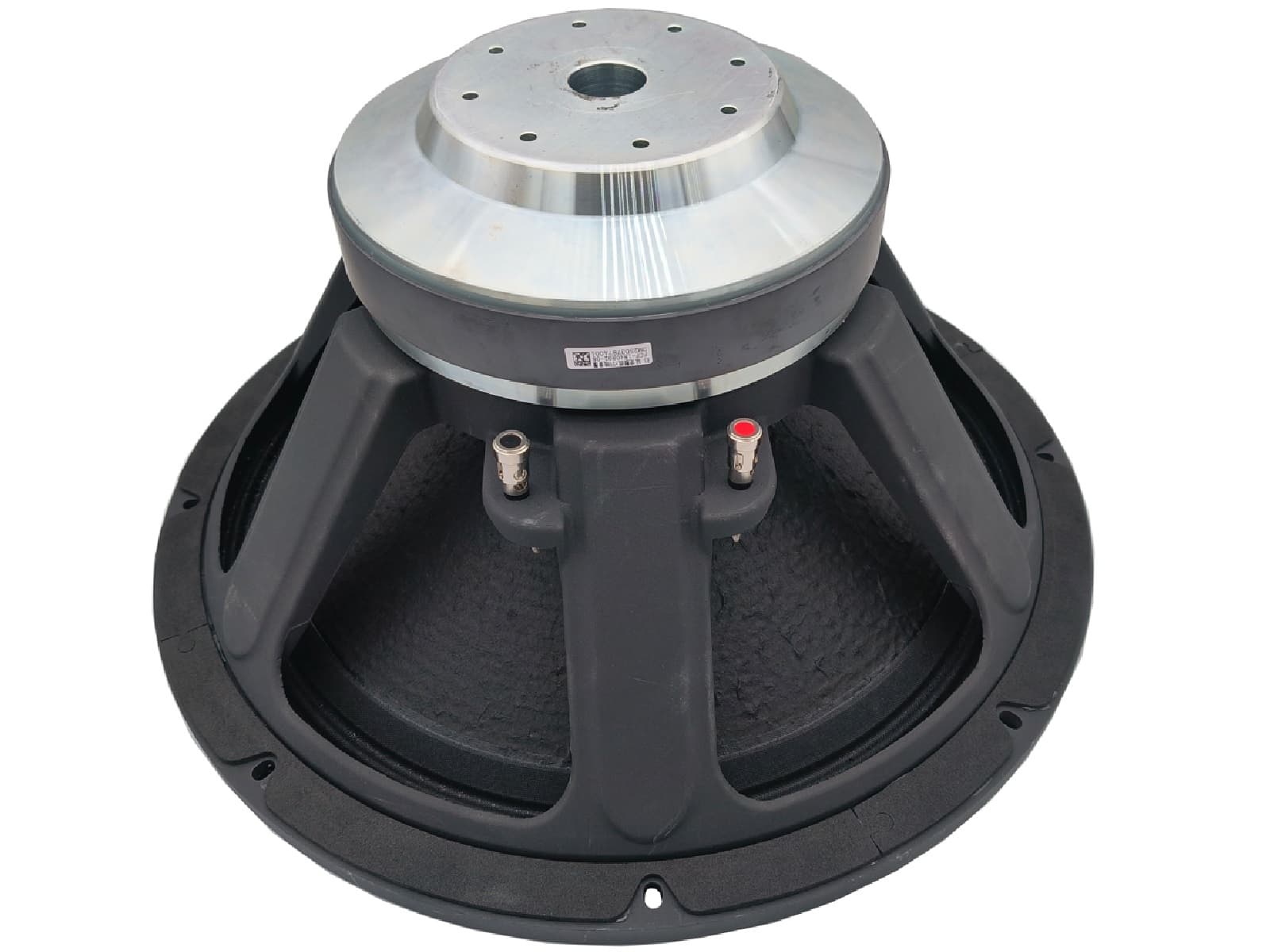

Peerless FCP-1840R02-08 is an 18-inch 8 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.43, Vas 156 L, Xmax 13.5 mm, sensitivity 95.2 dB, plus 1647 cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.43
- Qes
- 0.44
- Qms
- 13.7
- Vas
- 156L
- Re
- 5.5Ω
- Le
- 0.75mH
Motor and cone
- BL
- 26.2T·m
- Sd
- 1220cm²
- Mms
- 224g
- Xmax
- 13.5mm
- Vd †
- 1647cm³
Power and response
- Sensitivity †
- 95.2dB
- Manufacturer sensitivity
- 95dB
- Power
- 800W
- Impedance
- 8Ω
- EBP †
- 88 · Sealed or vented
Size and mounting
- Weight
- 17.4kg
Other published values
- Cms
- 0.07mm/N
- Power Peak
- 500
† Calculated by bits from the published values
What this validation status means
Everything else Peerless lists
LF · Primary · 17.99212598425197″
- BL
- 26.2T·m
- Fs
- 39Hz
- Le
- 0.75mH
- Re
- 5.5Ω
- Sd
- 1220cm²
- Cms
- 0.07mm/N
- Mms
- 224g
- Qes
- 0.44
- Qms
- 13.7
- Qts
- 0.43
- SPL
- 95dB
- Vas
- 156L
- Xmax
- 13.5mm
- Power
- 800W
- Impedance
- 8Ω
- Power Peak
- 500
- Weight
- 17.4kg
02
