Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespPeerless FCP-1840R03-08 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFCP series
Peerless

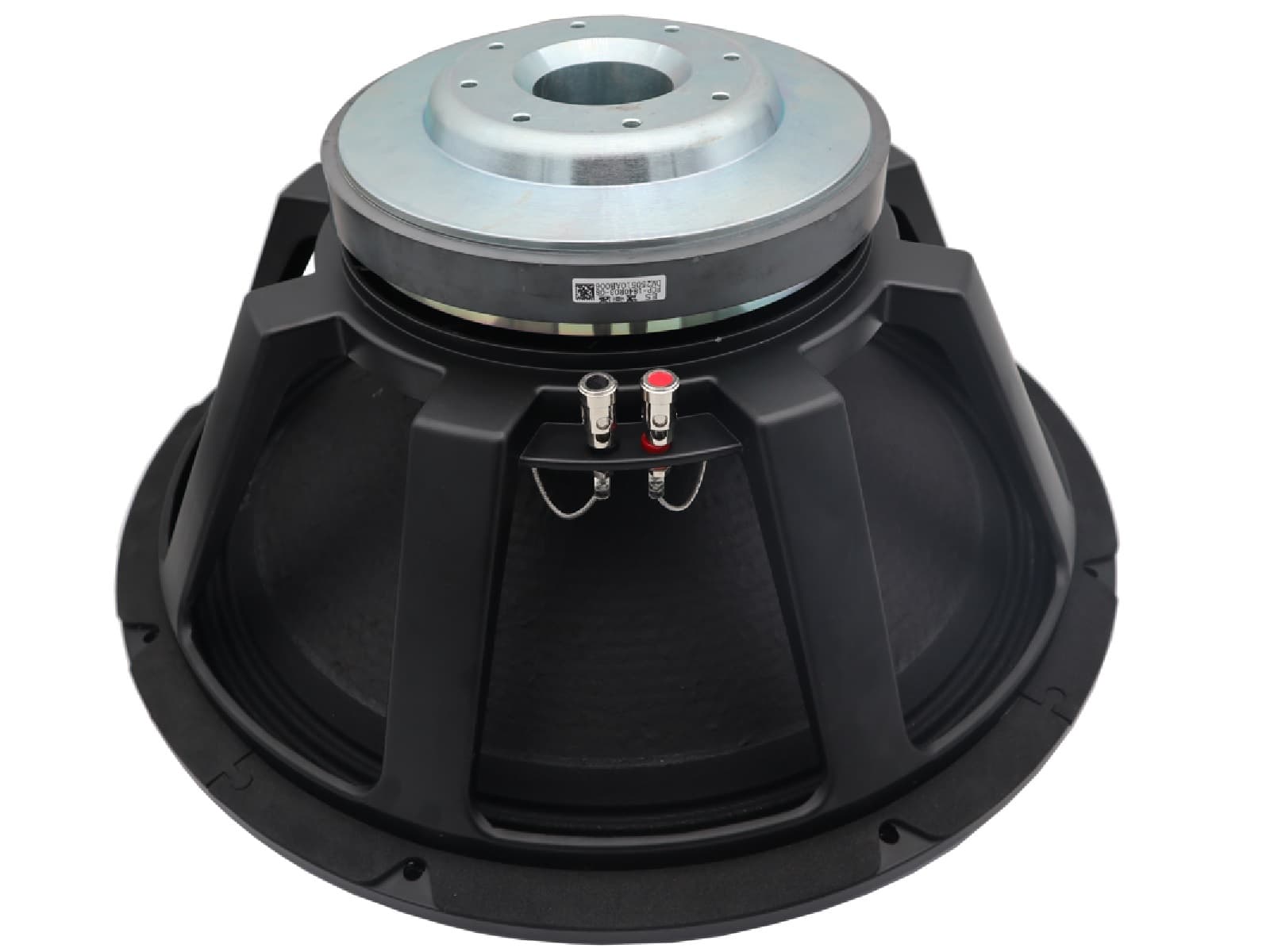

Peerless FCP-1840R03-08
Peerless FCP-1840R03-08 is a 18" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 41Hz, Qts 0.47, Vas 128L, Xmax 12.3mm, sensitivity 94.6dB, plus 1501cm³ Vd and 84 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
800W
Sensitivity
94.6dB
EBP
84
Either alignment
Vd
1501cm³
T/S Parameters
Valid
Fs41Hz
Qts0.47
Qes0.49
Qms17.6
Vas128.0L
Re5.5Ω
Le0.99mH
BL26.8Tm
Sd1220cm²
Mms252g
Xmax12.3mm
SPL95dB
Power800W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.6kg
