Overview
LF Driver
Beyma
Beyma 118LEX16ND8
Beyma 118LEX16ND8 is a 18" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 33Hz, Qts 0.43, Vas 231L, Xmax 14.5mm, sensitivity 94.7dB, plus 1820cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
94.7dB
96.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
73
Either alignment
Vd
1820cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence5,689 selected pixels of 8,112 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,366 selected pixels of 3,366
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs33Hz
Qts0.43
Qes0.45
Qms11.4
Vas231.0L
Re5.8Ω
Le1.90mH
BL24.5Tm
Sd1255cm²
Mms229g
Xmax14.5mm
SPL95dB
Power1600W
Impedance8Ω
F Low35Hz
F High1000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
118LEX16ND8
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
£433.43
FaitalPRO
18FX800
18"
Xmax13.8mm-5%
Qts0.4-7%
BL24Tm-2%
Vas247L+7%
Qes0.43-4%
83%
Similarity

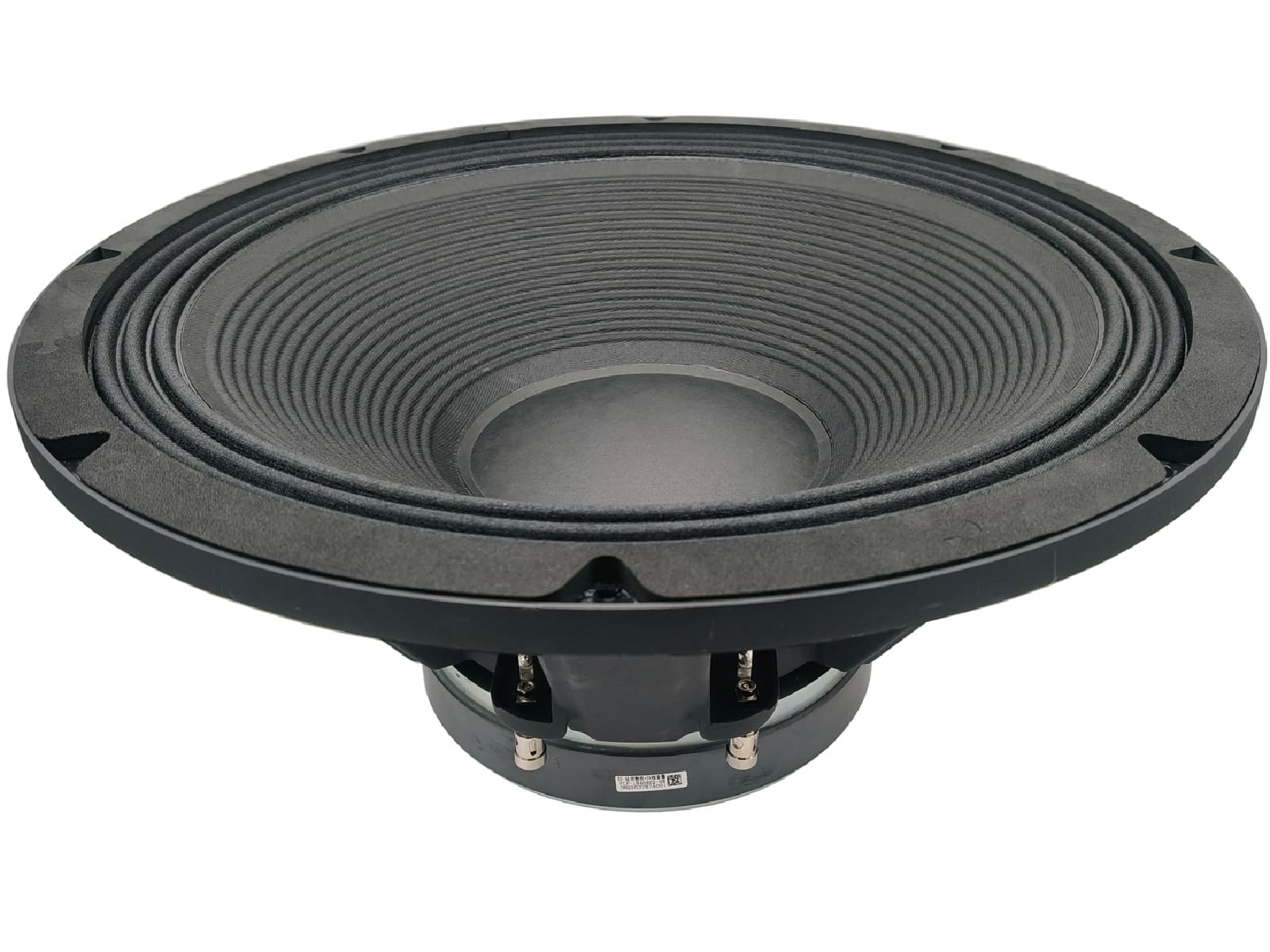

Peerless
FCP-1840R02-08
18"
Xmax13.5mm-7%
Qts0.430%
BL26.2Tm+7%
Vas156L-32%
Qes0.44-1%
81%
Similarity
£269.00
FaitalPRO
18HP1030
18"
Xmax12.4mm-14%
Qts0.41-5%
BL24.3Tm-1%
Vas185.5L-20%
Qes0.43-4%
79%
Similarity
£341.86

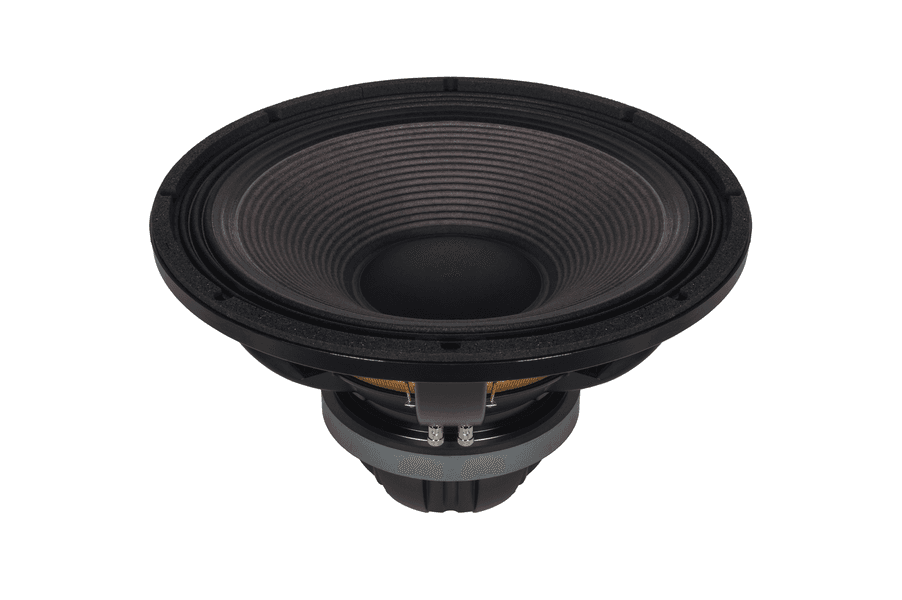

Eighteen Sound
18TLW3000
18"
Xmax12mm-17%
Qts0.41-5%
BL24.5Tm0%
Vas185L-20%
Qes0.42-7%
78%
Similarity

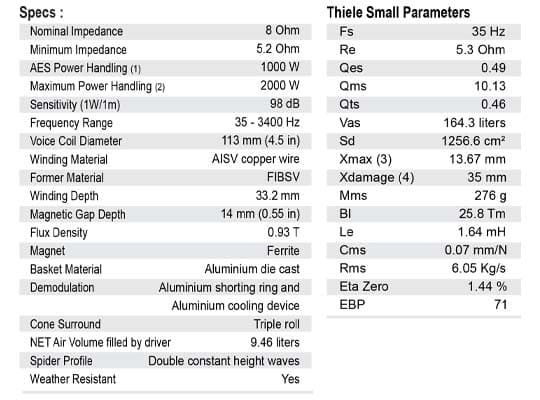

SB Audience
ROSSO-18SW1000D
18"
Xmax13.7mm-6%
Qts0.46+7%
BL25.8Tm+5%
Vas164.3L-29%
Qes0.49+9%
77%
Similarity
£239.00

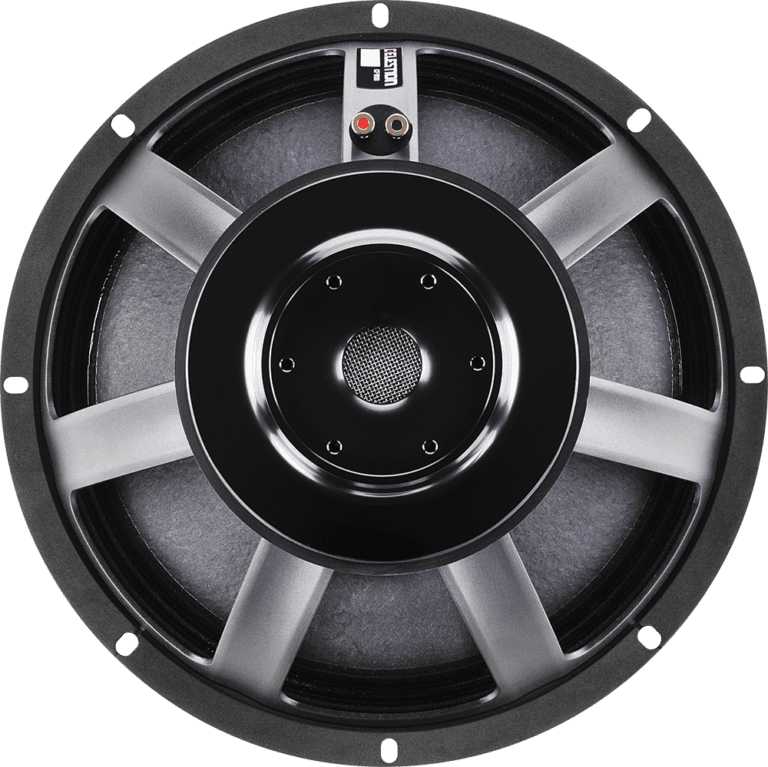

Celestion
CF1840JD
18"
Xmax12.5mm-14%
Qts0.4-8%
BL24.8Tm+1%
Vas155L-33%
Qes0.44-3%
77%
Similarity

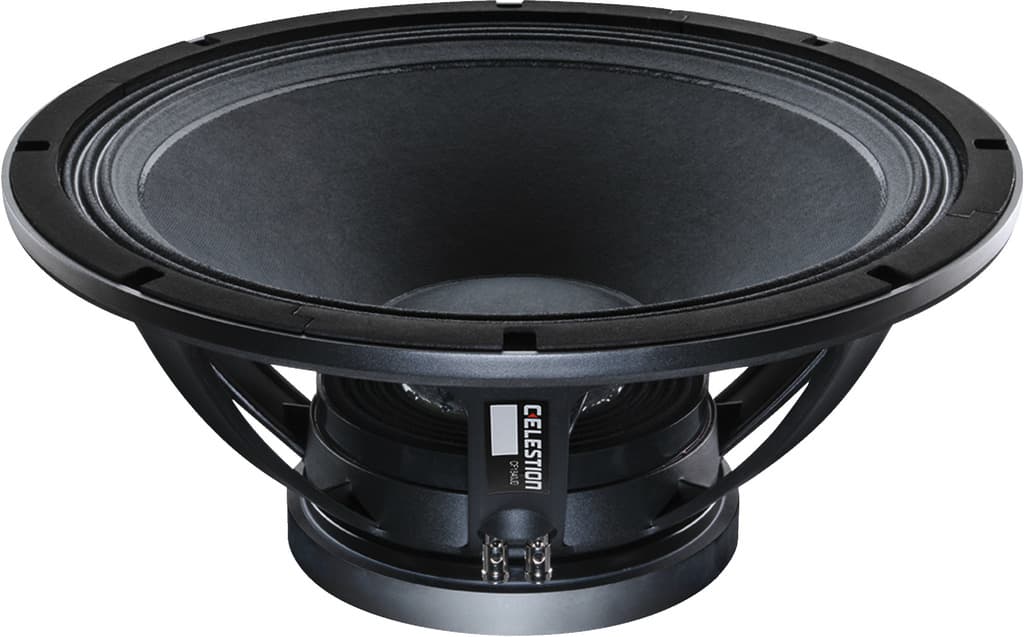

Monacor
CF1840JD/4
18"
Xmax12.5mm-14%
Qts0.4-8%
BL24.8Tm+1%
Vas155L-33%
Qes0.44-3%
77%
Similarity
Monacor
CF1840JD/8
18"
Xmax12.5mm-14%
Qts0.4-8%
BL24.8Tm+1%
Vas155L-33%
Qes0.44-3%
72%
Similarity
£245.81
FaitalPRO
18HP1060
18"
Xmax12.4mm-14%
Qts0.37-14%
BL24.8Tm+1%
Vas200.3L-13%
Qes0.38-16%
72%
Similarity
£277.00
Beyma
18LEX1600FE
18"
Xmax13mm-10%
Qts0.38-12%
BL26.9Tm+10%
Vas188L-19%
Qes0.4-11%
72%
Similarity

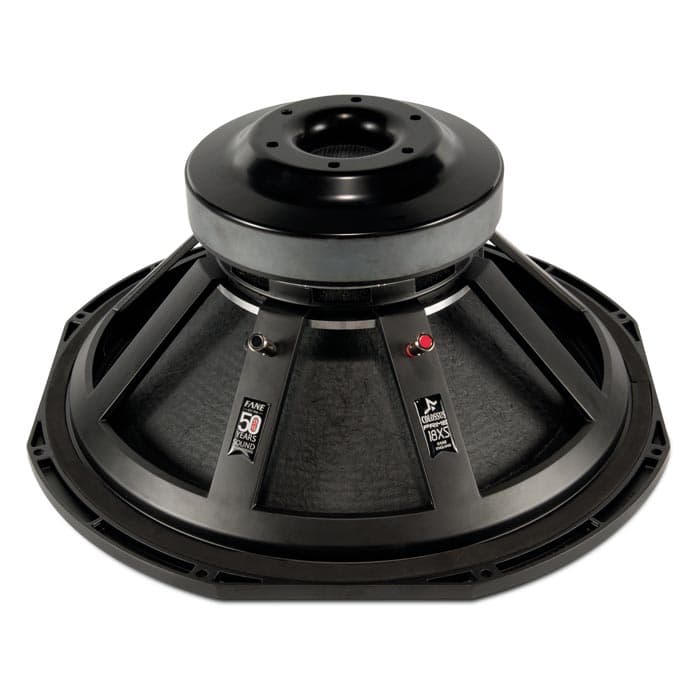

Fane
