LF DriverFW series
Fountek

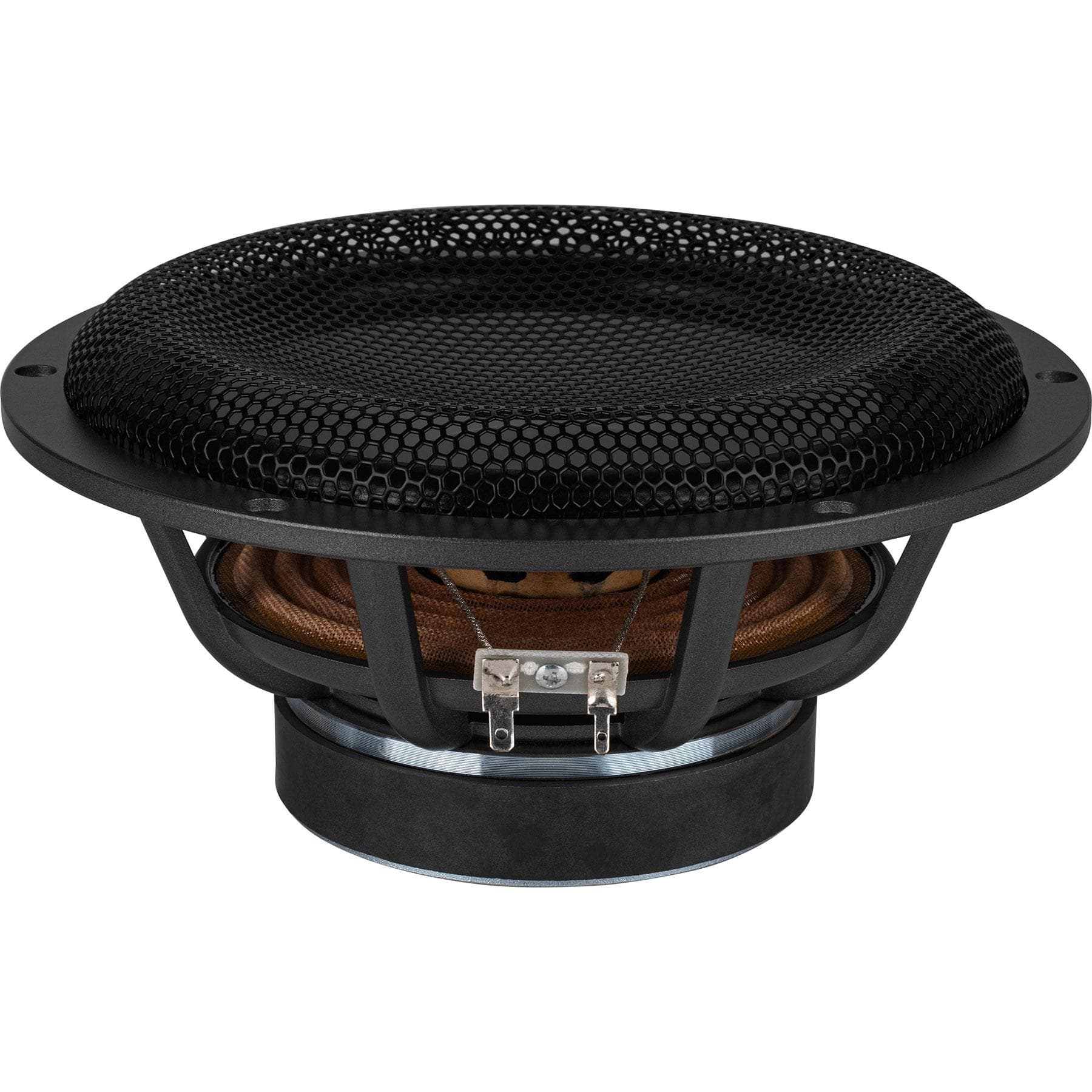

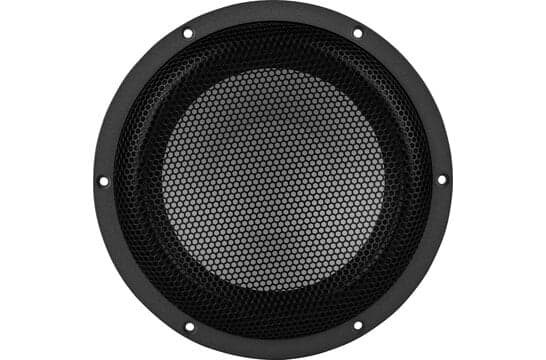

Fountek FW222
Fountek FW222 is a 8" 8 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 35Hz, Qts 0.49, Vas 47.7L, Xmax 7mm, sensitivity 87.1dB, plus 153cm³ Vd and 57 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
75W
Sensitivity
87.1dB
EBP
57
Either alignment
Vd
153cm³
T/S Parameters
Valid
Fs35Hz
Qts0.49
Qes0.61
Qms2.6
Vas47.7L
Re6.8Ω
Le1.46mH
BL8.7Tm
Sd219cm²
Mms30g
Xmax7.0mm
SPL87dB
Power75W
Impedance8Ω
F Low50Hz
F High3Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter203.2mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fountek
FW222
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
71%
Similarity
Dayton Audio
RS225-8
8"
Xmax7mm0%
Qts0.38-22%
BL9.1Tm+4%
Vas56.8L+19%
Qes0.51-16%
70%
Similarity
GRS
8SMP-8
8"
Xmax5.5mm-21%
Qts0.46-6%
BL8.9Tm+3%
Vas32.5L-32%
Qes0.55-10%
67%
Similarity
Tang Band
W8-2314
8"
Xmax6mm-14%
Qts0.46-6%
BL6.1Tm-30%
Vas49.5L+4%
Qes0.54-11%
65%
Similarity

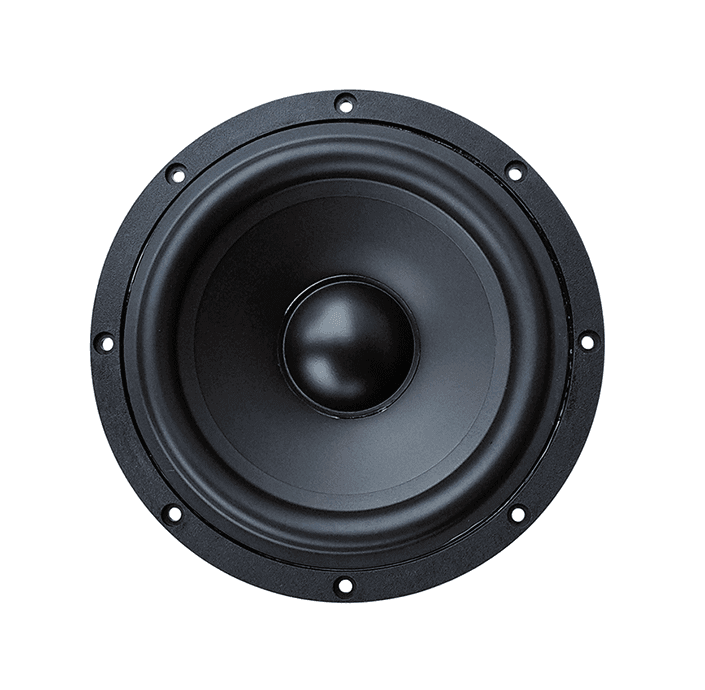

Tang Band
W8-1722B
8"
Xmax9mm+29%
Qts0.51+4%
BL6.2Tm-28%
Vas46.3L-3%
Qes0.58-5%
65%
Similarity
£63.09
CIARE
HWB200
8"
Xmax7mm0%
Qts0.39-20%
BL8.9Tm+2%
Vas59L+24%
Qes0.41-33%
64%
Similarity
CIARE
CW202
8"
Xmax6.5mm-7%
Qts0.41-16%
BL6.5Tm-25%
Vas48L+1%
Qes0.48-21%
63%
Similarity
Dayton Audio
PCS8-4
8"
Xmax5mm-29%
Qts0.490%
BL8.4Tm-3%
Vas20.5L-57%
Qes0.56-8%
62%
Similarity
Celestion
TF0815RE
8"
Xmax5.3mm-25%
Qts0.53+9%
BL8.9Tm+2%
Vas22.1L-54%
Qes0.65+6%
61%
Similarity
Tang Band
W8-670T
8"
Xmax7.8mm+12%
Qts0.45-8%
BL9.4Tm+8%
Vas23.3L-51%
Qes0.49-20%
61%
Similarity
Dayton Audio
RS225-4
8"
Xmax6mm-14%
Qts0.41-16%
BL6.4Tm-27%
Vas46.4L-3%
Qes0.52-15%
Image unavailable
60%
Similarity
Wavecor
WF223BD01
8"
Xmax6.5mm-7%
Qts0.39-20%
BL7.7Tm-11%
Vas45L-6%
Qes0.4-34%
60%
Similarity
£103.07
Eighteen Sound
8MB500
8"
Xmax6mm-14%
Qts0.43-12%
BL9Tm+3%
Vas21.5L-55%
Qes0.51-16%
