LF DriverSIGMA PRO series
Eminence

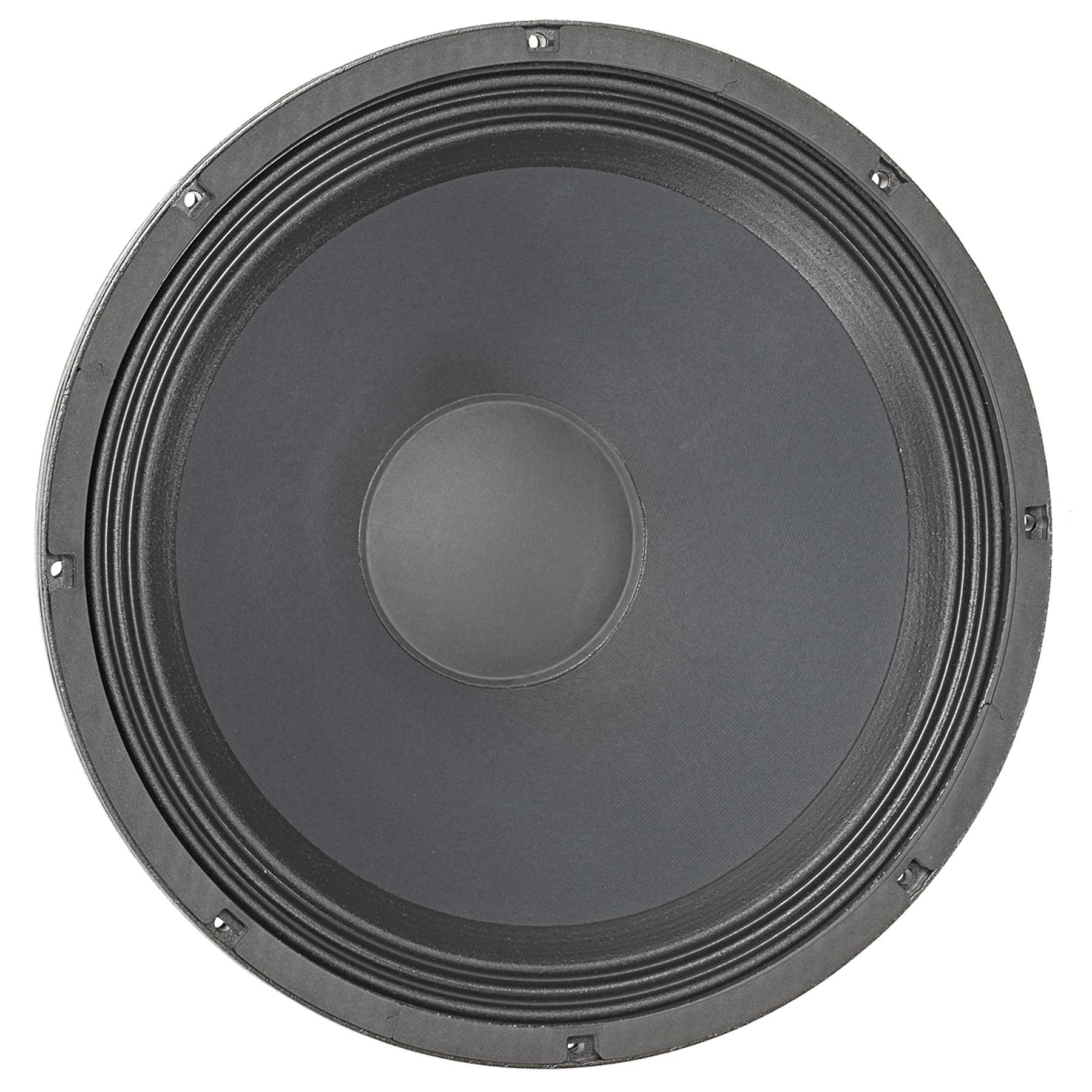

Eminence SIGMA PRO-18A
Eminence SIGMA PRO-18A is a 18" 8 ohm LF driver rated at 650W RMS. The validated T/S data includes Fs 28Hz, Qts 0.29, Vas 441.2L, Xmax 6.1mm, sensitivity 97.1dB, plus 695cm³ Vd and 93 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
650W
Sensitivity
97.1dB
99.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
93
Either alignment
Vd
695cm³
T/S Parameters
Valid
Fs28Hz
Qts0.29
Qes0.30
Qms8.3
Vas441.2L
Re6.3Ω
Le1.90mH
BL22.1Tm
Sd1140cm²
Mms130g
Xmax6.1mm
SPL97dB
Power650W
Impedance8Ω
F Low41Hz
F High2000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.1kg
Diameter457.2mm
Overall Depth207.0mm
Cutout Diameter420.6mm
Bolt Circle Diameter438.1mm
