12-inch LF driver · IB series · 500 W

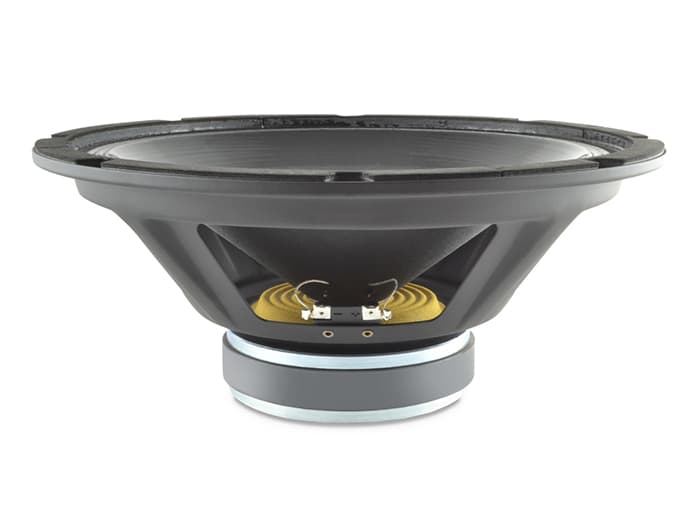

Acoustic Elegance IB12HT-4 4Ω
4 Ω
No current price
- Fs
- 17Hz
- Xmax
- 18.5mm
- SPL
- 83dB
- Pe
- 500W
- BL
- 8.9T·m
- Vd
- 981cm³
- Qts
- 0.64
- Vas
- 180L
Acoustic Elegance IB12HT-4 is a 12-inch 4 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 17 Hz, Qts 0.64, Vas 179.5 L, Xmax 18.5 mm, sensitivity 82.6 dB, plus 981 cm³ Vd and 23 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 17Hz
- Qts
- 0.64
- Qes
- 0.74
- Qms
- 4.8
- Vas
- 179.5L
- Re
- 2.8Ω
- Le
- 0.16mH
Motor and cone
- BL
- 8.9T·m
- Sd
- 530cm²
- Mms
- 200g
- Xmax
- 18.5mm
- Vd †
- 981cm³
Power and response
- Sensitivity †
- 82.6dB
- Manufacturer sensitivity
- 82.6dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 4Ω
- EBP †
- 23 · Leans sealed
Other published values
- Cms
- 0.45mm/N
- Rms
- 4.35kg/s
- Xmech
- 25
† Calculated by bits from the published values
What this validation status means
Everything else Acoustic Elegance lists
LF · Primary · 12″
- BL
- 8.9T·m
- Fs
- 17Hz
- Le
- 0.16mH
- Re
- 2.8Ω
- Sd
- 530cm²
- Cms
- 0.45mm/N
- Mms
- 200g
- Qes
- 0.74
- Qms
- 4.8
- Qts
- 0.64
- Rms
- 4.35kg/s
- SPL
- 82.6dB
- Vas
- 179.5L
- Xmax
- 18.5mm
- Xmech
- 25
- Power
- 500W
- Impedance
- 4Ω
- Sensitivity
- 82.6dB
- Nominal power
- 500W
- Calculated sensitivity †
- 82.6dB
- Manufacturer sensitivity
- 82.6dB
02
Compare
Same-size drivers, compared with the IB12HT-4. Clear differences are green when better and red when worse.
This driverIB12HT-4
Best price
–
Fs
17 Hz
Qts
0.64
Vas
179.5 L
BL
8.9 T·m
Xmax
18.5 mm
Sensitivity
82.6 dB
Power
500 W
SB AudienceBIANCO-12OB150-01
£55.90Fs44 Hz +162%, worse
Qts0.63 –
Vas103.8 L −42%, better
BL12.2 T·m +37%, better
Xmax6.8 mm −63%, worse
Sensitivity93.1 dB +10.5, better
EminenceALPHA-12A
£59.99Fs49 Hz +192%, worse
Qts0.77 +20%, worse
Vas121.5 L −32%, better
BL8.5 T·m −5%
Xmax2.4 mm −87%, worse
Sensitivity94.1 dB +11.5, better
VisatonW 300
£71.46Fs32 Hz +91%, worse
Qts0.45 −30%, better
Vas190 L +6%
BL9.4 T·m +5%
Xmax14 mm −24%, worse
Sensitivity92.6 dB +10, better
PeerlessSLS-P830669
£76.22Fs34 Hz +103%, worse
Qts0.64 –
Vas107 L −40%, better
BL11.8 T·m +32%, better
Xmax10.9 mm −41%, worse
Sensitivity90 dB +7.4, better
£77.00
Fs50 Hz +198%, worse
Qts0.64 –
Vas78.1 L −57%, better
BL13 T·m +46%, better
Xmax3.5 mm −81%, worse
Sensitivity93.3 dB +10.7, better
CelestionTRUVOX 1225
£90.10Fs60 Hz +259%, worse
Qts0.62 –
Vas54.1 L −70%, better
BL13.5 T·m +52%, better
Xmax4.8 mm −74%, worse
Sensitivity94.4 dB +11.8, better
EminenceMAN O WAR
£99.00Fs91 Hz +442%, worse
Qts0.68 +6%
Vas38 L −79%, better
BL12.3 T·m +38%, better
Xmax0.8 mm −96%, worse
Sensitivity98 dB +15.4, better
EminenceLEGEND GB128
£105.00Fs86 Hz +413%, worse
Qts0.65 –
Vas43.9 L −76%, better
BL12 T·m +35%, better
Xmax0.8 mm −96%, worse
Sensitivity98.2 dB +15.6, better
Sica12 D 1.5 CS
£110.06Fs62 Hz +269%, worse
Qts0.75 +17%, worse
Vas63.5 L −65%, better
BL9.5 T·m +7%
Xmax2.7 mm −85%, worse
Sensitivity94.9 dB +12.3, better
EminenceTEXAS HEAT-4
£110.95Fs89 Hz +430%, worse
Qts0.68 +6%
Vas39 L −78%, better
BL9.5 T·m +7%
Xmax0.8 mm −96%, worse
Sensitivity98 dB +15.4, better
EminenceTEXAS HEAT
£110.95Fs79 Hz +371%, worse
Qts0.65 –
Vas50.9 L −72%, better
BL12.8 T·m +44%, better
Xmax0.8 mm −96%, worse
Sensitivity97.7 dB +15.1, better
EminenceLEGEND BP 122
£120.00Fs35 Hz +109%, worse
Qts0.54 −16%, better
Vas157.4 L −12%, better
BL10.6 T·m +18%, better
Xmax6.2 mm −66%, worse
Sensitivity92.8 dB +10.2, better
EminenceSWAMP THANG-16
£127.04Fs113 Hz +573%, worse
Qts0.62 −3%
Vas26.4 L −85%, better
BL21.8 T·m +145%, better
Xmax0.8 mm −96%, worse
Sensitivity99.6 dB +17, better
SB AcousticsSB34NRX75-16
£169.31Fs25 Hz +49%, worse
Qts0.71 +11%, worse
Vas205 L +14%, worse
BL14.1 T·m +58%, better
Xmax22 mm +19%, better
Sensitivity88.1 dB +5.5, better
SB AcousticsSB34NRXL75-8
£218.43Fs22 Hz +31%, worse
Qts0.28 −56%, better
Vas205 L +14%, worse
BL16.6 T·m +86%, better
Xmax20 mm +8%
Sensitivity90.8 dB +8.2, better
Dayton AudioUMII12-22
£254.04Fs31 Hz +85%, worse
Qts0.56 −12%, better
Vas53 L −70%, better
BL14.8 T·m +66%, better
Xmax22 mm +19%, better
Sensitivity85.5 dB +2.9, better
Acoustic EleganceIB12HT-8
No current priceFs17 Hz –
Qts0.64 –
Vas179.5 L –
BL12.5 T·m +40%, better
Xmax18.5 mm –
Sensitivity82.6 dB –
Acoustic EleganceIB12AU-4
No current priceFs24 Hz +43%, worse
Qts0.51 −20%, better
Vas160 L −11%, better
BL8.8 T·m –
Xmax18 mm –
Sensitivity87.8 dB +5.2, better
JensenJN12-100TR-4
No current priceFs77 Hz +356%, worse
Qts0.58 −9%
Vas47.2 L −74%, better
BL9.0 T·m –
Xmax1 mm −95%, worse
Sensitivity96.6 dB +14, better
Acoustic EleganceIB12AU-8
No current priceFs24 Hz +43%, worse
Qts0.51 −20%, better
Vas160 L −11%, better
BL12.5 T·m +40%, better
Xmax18 mm –
Sensitivity87.8 dB +5.2, better
VisatonW 300 - 8 OHM
No current priceFs32 Hz +91%, worse
Qts0.45 −30%, better
Vas190 L +6%
BL9.4 T·m +5%
Xmax14 mm −24%, worse
Sensitivity92.6 dB +10, better
JensenC12-75NH-8
No current priceFs83 Hz +395%, worse
Qts0.64 –
Vas42.4 L −76%, better
BL11.8 T·m +32%, better
Xmax1 mm −95%, worse
Sensitivity97.1 dB +14.5, better
MonacorSP-302E
No current priceFs39 Hz +132%, worse
Qts0.72 +12%, worse
Vas141 L −21%, better
BL6.6 T·m −26%, worse
Xmax4 mm −78%, worse
Sensitivity91.9 dB +9.3, better
LavoceLBASS12-15
No current priceFs38 Hz +126%, worse
Qts0.48 −25%, better
Vas160.9 L −10%, better
BL10.1 T·m +13%, better
Xmax4.7 mm −75%, worse
Sensitivity94 dB +11.4, better
Acoustic EleganceSBP12-4
No current priceFs24 Hz +41%, worse
Qts0.48 −25%, better
Vas160 L −11%, better
BL10.5 T·m +18%, better
Xmax14 mm −24%, worse
Sensitivity87.9 dB +5.3, better
HiViSS12
No current priceFs33 Hz +97%, worse
Qts0.55 −14%, better
Vas105.9 L −41%, better
BL10.7 T·m +20%, better
Xmax7.3 mm −61%, worse
Sensitivity90 dB +7.4, better
EminenceGA-SC-X
No current priceFs91 Hz +441%, worse
Qts0.66 +3%
Vas45.0 L −75%, better
BL12.2 T·m +37%, better
Xmax1.3 mm −93%, worse
Sensitivity98.8 dB +16.2, better
P.AudioE12-200S-V2
No current priceFs65 Hz +287%, worse
Qts0.69 +8%
Vas42.2 L −77%, better
BL12.3 T·m +38%, better
Xmax4.1 mm −78%, worse
Sensitivity93.9 dB +11.3, better
Acoustic EleganceTD12X-4
No current priceFs34 Hz +103%, worse
Qts0.28 −56%, better
Vas160 L −11%, better
BL10.1 T·m +13%, better
Xmax14 mm −24%, worse
Sensitivity95.1 dB +12.5, better
