LF DriverSB34 series
SB Acoustics
SB Acoustics SB34NRX75-16
SB Acoustics SB34NRX75-16 is a 12" 16 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 25Hz, Qts 0.71, Vas 205L, Xmax 22mm, sensitivity 88.1dB, plus 1118cm³ Vd and 31 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £179.00.
Size
12"
Impedance
16Ω
RMS Power
120W
Sensitivity
88.1dB
86.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
31
Sealed alignment
Vd
1118cm³

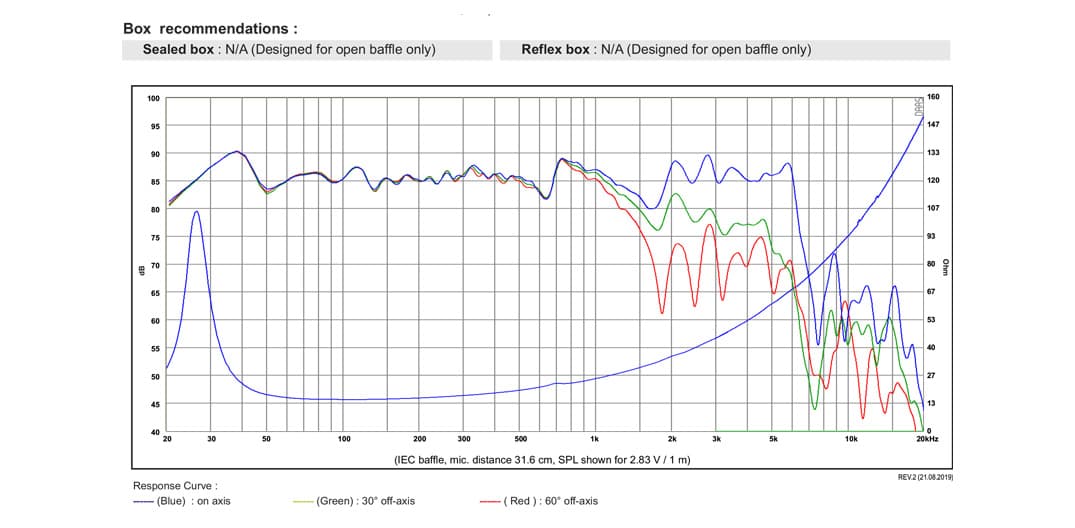

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,553 selected pixels of 3,016 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,662 selected pixels of 3,389 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,031 selected pixels of 6,150
T/S Parameters
Valid
Fs25Hz
Qts0.71
Qes0.80
Qms6.7
Vas205.0L
Re14.0Ω
Le3.20mH
BL14.1Tm
Sd508cm²
Mms72g
Xmax22.0mm
SPL88dB
Power120W
Impedance16Ω
Voice Coil76mm
Flux Density0.90T
Pricing & availability
Price definitionsPrice movement
Best current price
£179.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
