Overview
LF DriverSP series
Monacor

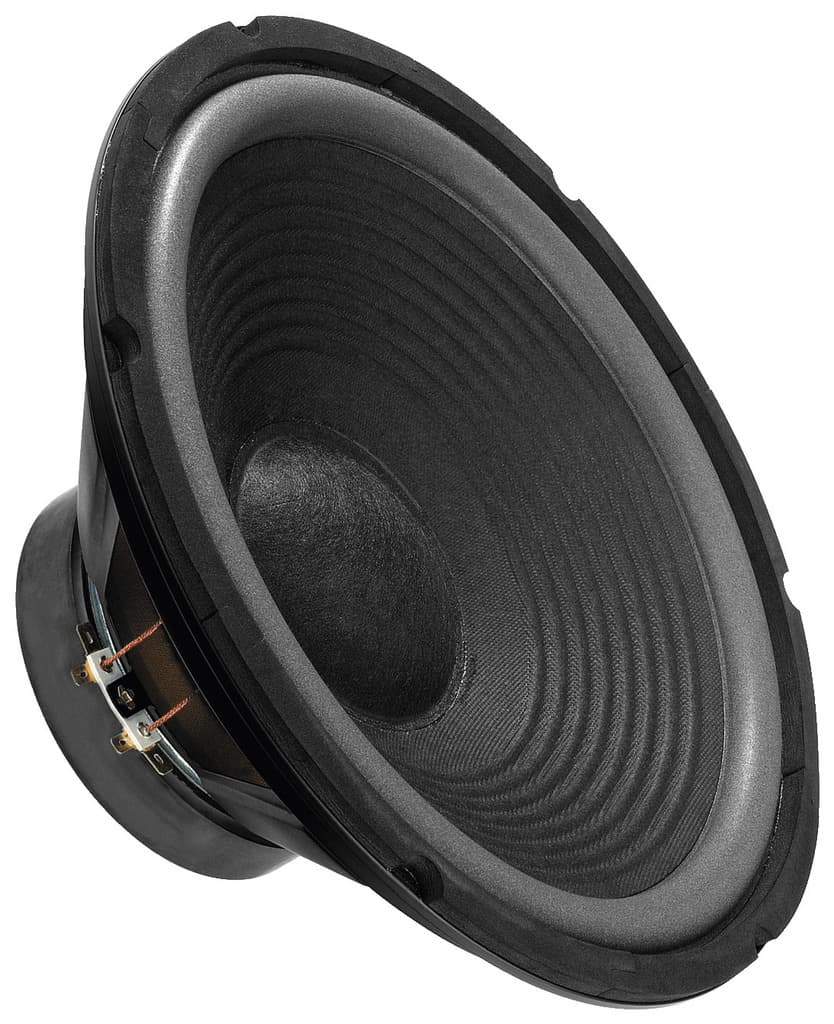

Monacor SP-302E
Monacor SP-302E is a 12" 4 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 39Hz, Qts 0.72, Vas 141L, Xmax 4mm, sensitivity 91.9dB, plus 207cm³ Vd and 45 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
4Ω
RMS Power
100W
Sensitivity
91.9dB
95.0dBmanufacturer; using T/S-derived value (3.1dB delta).
EBP
45
Sealed alignment
Vd
207cm³
T/S Parameters
Valid
Fs39Hz
Qts0.72
Qes0.87
Qms4.2
Vas141.0L
Re3.6Ω
Le1.10mH
BL6.6Tm
Sd518cm²
Mms40g
Xmax4.0mm
SPL92dB
Power100W
Impedance4Ω
F Low3Hz
F High5500Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

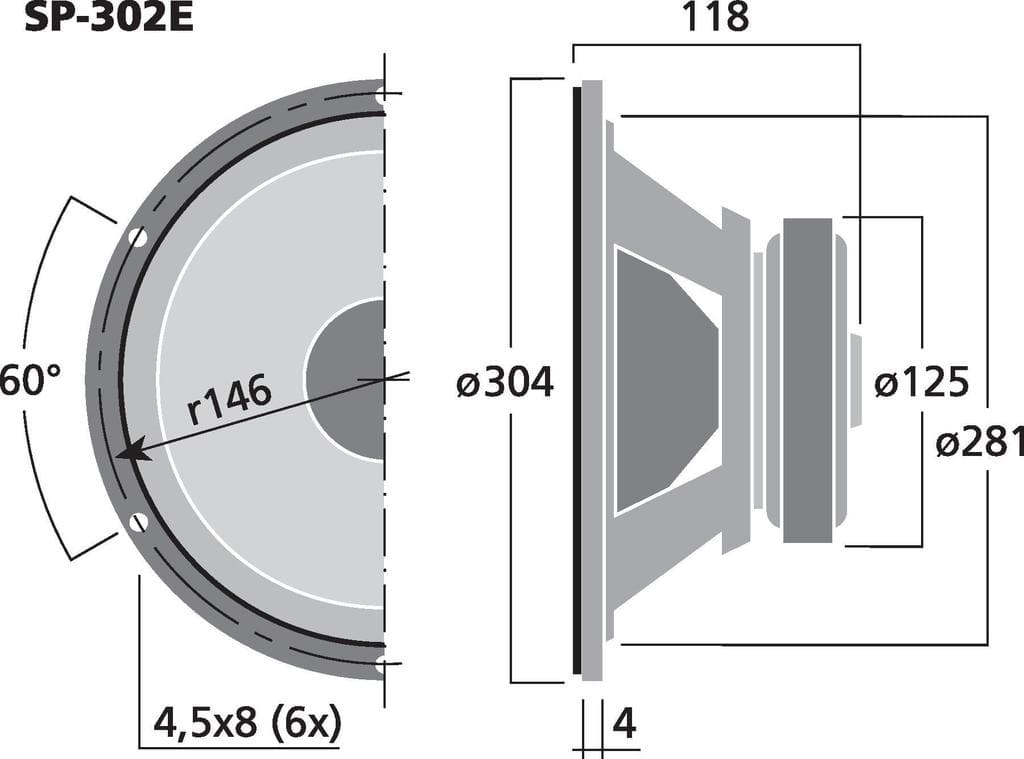

Dimensions & Physical
Weight2.6kg
Diameter304.0mm
Overall Depth118.0mm
Cutout Diameter281.0mm
