Overview
LF DriverExotic series
SEAS

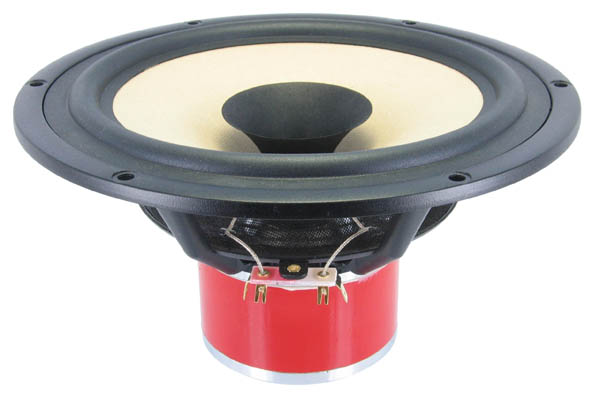

SEAS X1-04 EXOTIC F8
SEAS X1-04 EXOTIC F8 is a - 4 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 31Hz, Qts 0.39, Vas 146L, Xmax 2.1mm, sensitivity 92.1dB, plus 47cm³ Vd and 72 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
4Ω
RMS Power
35W
Sensitivity
92.1dB
96.0dBmanufacturer; using T/S-derived value (3.9dB delta).
EBP
72
Either alignment
Vd
47cm³

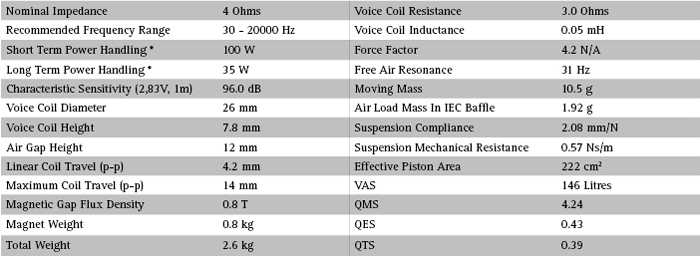

T/S Parameters
Valid
Fs31Hz
Qts0.39
Qes0.43
Qms4.2
Vas146.0L
Re3.0Ω
Le0.05mH
BL4.2Tm
Sd222cm²
Mms11g
Xmax2.1mm
SPL92dB
Power35W
Impedance4Ω
F Low30Hz
F High20000Hz
Voice Coil26mm
Flux Density0.80T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

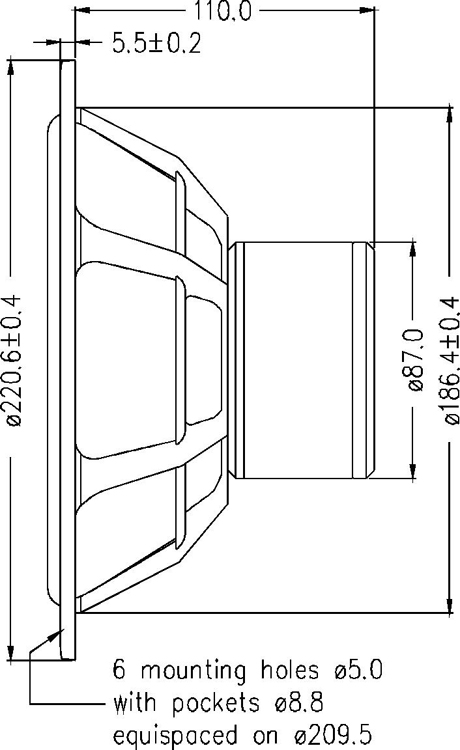

Dimensions & Physical
Weight2.6kg
