15-inch LF driver · CAN153 series · 75 mm voice coil · 400 W

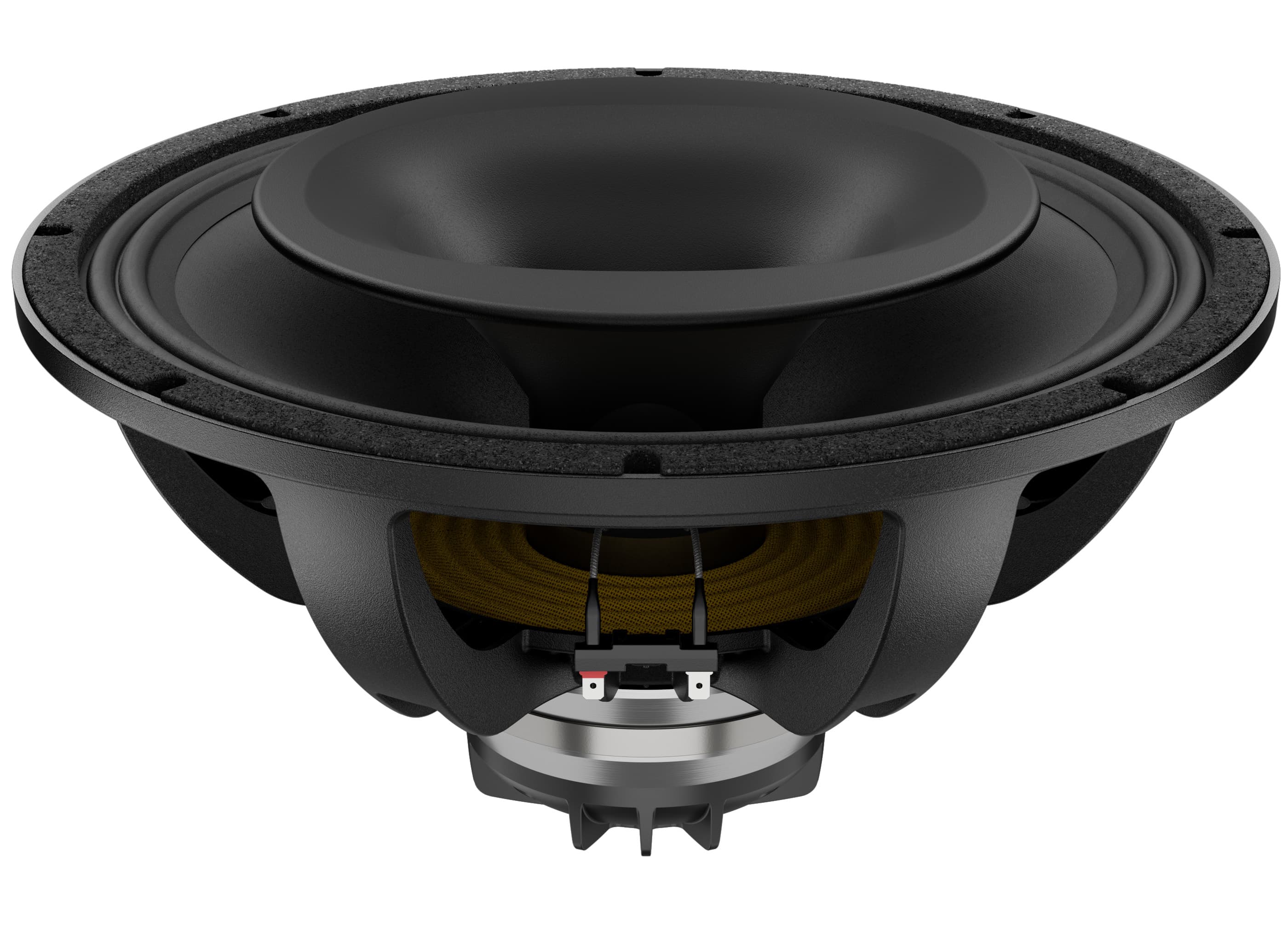

Lavoce CAN153.00TH 8Ω

Name: Lavoce CAN153.00TH 8 Ohm
Brand: Lavoce
SKU: CAN153.00TH

8 Ω · 45–18000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 46Hz
Xmax: 6mm
SPL: 97dB
Pe: 400W
BL: 17.8T·m
Vd: 513cm³
Qts: 0.39
Vas: 143L

See all 25 specs

Specifications

Published by Lavoce

Manufacturer page

Lavoce CAN153.00TH is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.39, Vas 142.8 L, Xmax 6 mm, sensitivity 97.3 dB, plus 513 cm³ Vd and 112 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 46Hz
Qts: 0.39
Qes: 0.41
Qms: 6.3
Vas: 142.8L
Re: 5.2Ω
Le: 0.64mH

Motor and cone

BL: 17.8T·m
Sd: 855cm²
Mms: 87g
Xmax: 6mm
Vd †: 513cm³
Voice coil: 75mm

Power and response

Sensitivity †: 97.3dB
Manufacturer sensitivity: 99dB
Power: 400W
Impedance: 8Ω
Min. impedance: 6Ω
Range: 45–18000Hz
EBP †: 112 · Leans vented

Size and mounting

Weight: 5.9kg

Other published values

Cms: 0.14mm/N
Xmech: 10
Power Program: 800
High limit: 4000Hz

Sensitivity shows 97.3 dB, calculated from the T/S values. Lavoce publishes 99.0 dB, 1.7 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF

BL: 17.8T·m
Fs: 46Hz
Le: 0.64mH
Re: 5.2Ω
Sd: 855cm²
Cms: 0.14mm/N
Mms: 87g
Qes: 0.41
Qms: 6.3
Qts: 0.39
SPL: 97.3dB
Vas: 142.8L
Xmax: 6mm
Xmech: 10
Power: 400W
Impedance: 8Ω
Sensitivity: 99dB
Low limit: 45Hz
Power Program: 800
Calculated sensitivity †: 97.3dB
High limit: 4000Hz
Manufacturer sensitivity: 99dB
Min. impedance: 6Ω
Voice coil: 75mm
Weight: 5.9kg

HF

SPL: 107dB
Power: 80W
Impedance: 8Ω
Flux density: 1.85T
Sensitivity: 107dB
Low limit: 600Hz
Power Program: 160
High limit: 18000Hz
Throat: 36mm
Manufacturer sensitivity: 107dB
Min. impedance: 7.8Ω
Voice coil: 75mm
Crossover: 1200Hz
