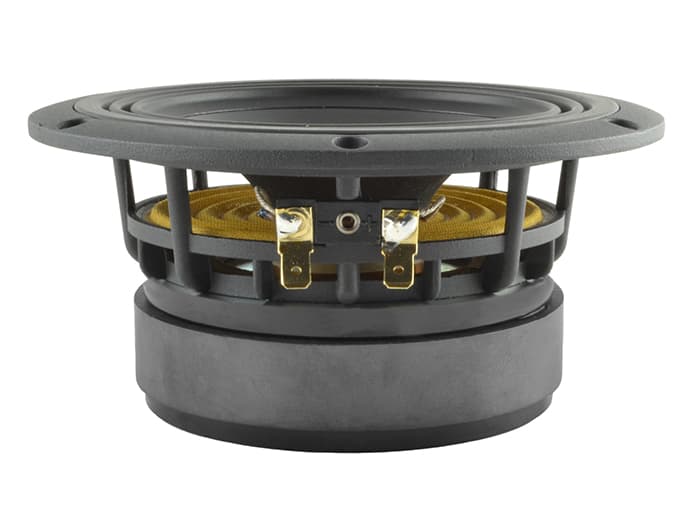

Dayton AudioGF180-8
£18.83Fs53 Hz −59%, better
Qts0.50 −17%, better
Vas15.5 L +215%, worse
BL7.9 T·m −5%
Xmax4 mm –
Sensitivity87.9 dB −6.3, worse
6.5-inch LF driver · 37 mm voice coil · 180 W

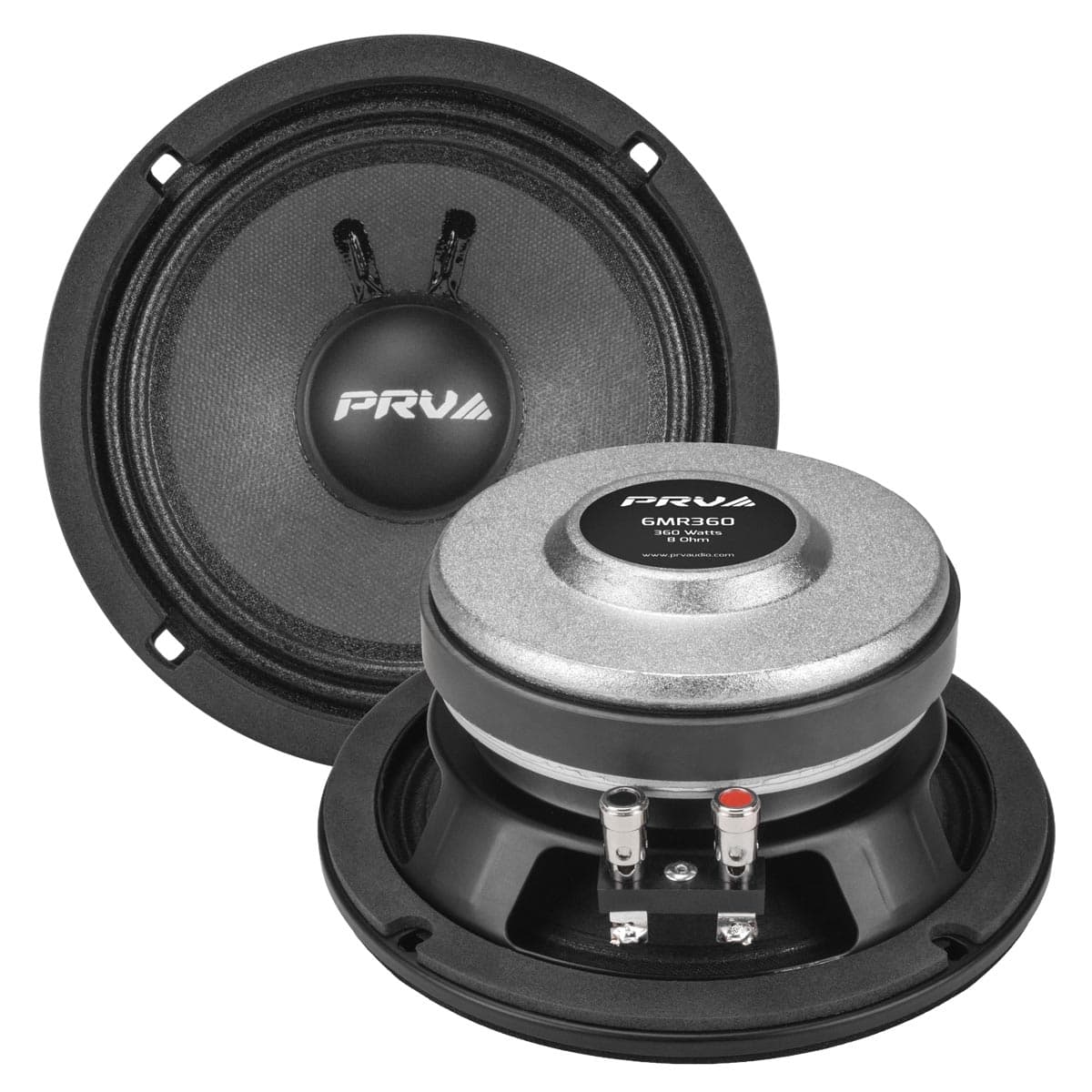

PRV Audio 6MR360 4Ω
4 Ω · 100–7500 Hz
No current price
- Fs
- 128Hz
- Xmax
- 4mm
- SPL
- 94dB
- Pe
- 180W
- BL
- 8.3T·m
- Vd
- 58cm³
- Qts
- 0.60
- Vas
- 5L
PRV Audio 6MR360 is a 6.5-inch 4 ohm LF driver rated at 180 W RMS. The validated T/S data includes Fs 128 Hz, Qts 0.60, Vas 4.9 L, Xmax 4 mm, sensitivity 94.2 dB, plus 58 cm³ Vd and 203 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 128Hz
- Qts
- 0.60
- Qes
- 0.63
- Qms
- 14.6
- Vas
- 4.9L
- Re
- 5.8Ω
- Le
- 0.55mH
Motor and cone
- BL
- 8.3T·m
- Sd
- 145cm²
- Mms
- 9g
- Xmax
- 4mm
- Vd †
- 58cm³
- Voice coil
- 37mm
Power and response
- Sensitivity †
- 94.2dB
- Manufacturer sensitivity
- 94dB
- Power
- 180W
- Impedance
- 4Ω
- Range
- 100–7500Hz
- EBP †
- 203 · Leans vented
Size and mounting
- Cutout
- 142mm
- Depth
- 77.5mm
- Weight
- 2kg
Other published values
- Cms
- 0.17mm/N
- Power Peak
- 720
Other dimensions
- Mounting Depth
- 69.5
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
MF · Primary · 6.5″
- BL
- 8.3T·m
- Fs
- 128Hz
- Le
- 0.55mH
- Re
- 5.8Ω
- Sd
- 145cm²
- Cms
- 0.17mm/N
- Mms
- 9g
- Qes
- 0.63
- Qms
- 14.6
- Qts
- 0.60
- SPL
- 94.2dB
- Vas
- 4.9L
- Xmax
- 4mm
- Power
- 180W
- Impedance
- 4Ω
- Power Peak
- 720
- Sensitivity
- 94dB
- Low limit
- 100Hz
- Calculated sensitivity †
- 94.2dB
- High limit
- 7500Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 37mm
- Weight
- 2kg
- Depth
- 77.5mm
- Mounting Depth
- 69.5
- Cutout
- 142mm
